AL50R-AEHNK (1996)
Toyota Soluna
Production
Dec 1996
-
Oct 1998
Engine
5AFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

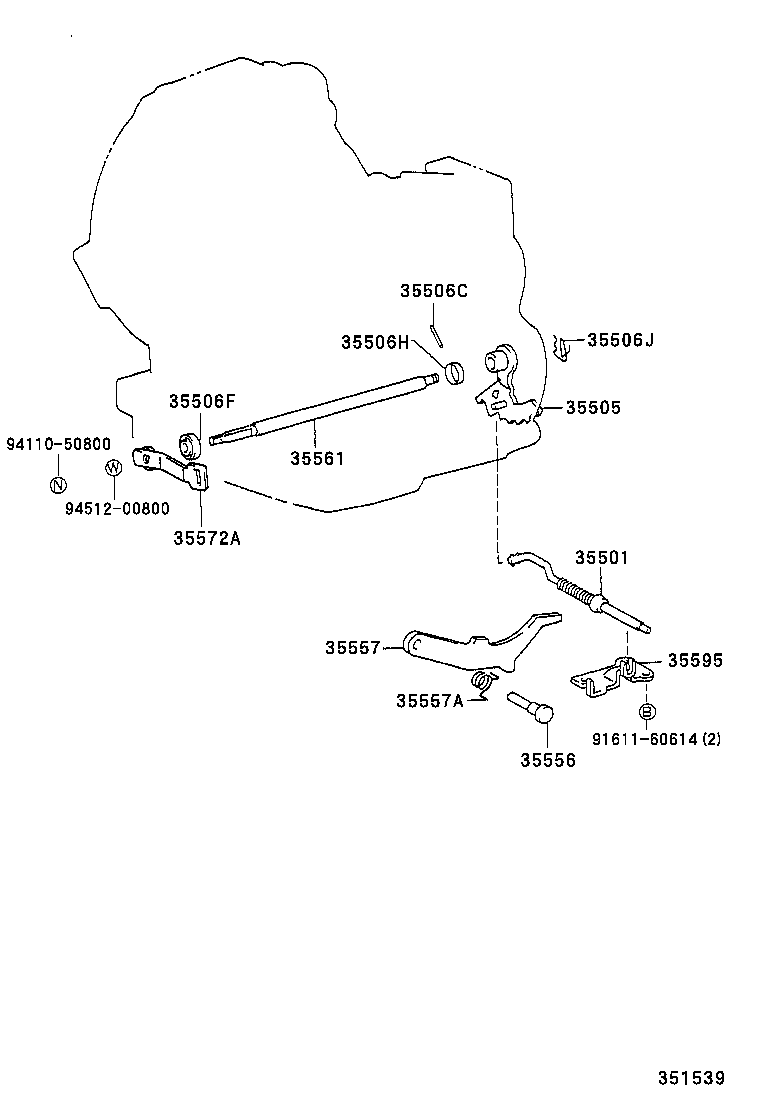

ILLUST NO. 1 OF 2(9612-9810)3FC
Click highlighted areas on diagram
A131L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-32030 |
AL50..3FC |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-32040 |
AL50..3FC |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
AL50..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
AL50..ATM |
1 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20006 |
AL50..ATM |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09001 |
AL50..3FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-32010 |
AL50..3FC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-32020 |
AL50..3FC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-26047 |
AL50..3FC |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-32010 |
AL50..3FC |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12110 |
AL50..3FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-32010 |
AL50..3FC |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 2(9612-0307)ATM
Click highlighted areas on diagram
A131L,A240L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-16180 |
AL50..3FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-32010 |
AL50..3FC |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-12100 |
AL50..ATM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-B0614 | ||||
