AL50R-AEHNK (1996)
Toyota Soluna
Production
Dec 1996
-
Oct 1998
Engine
5AFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(9612-9810)3FC
Click highlighted areas on diagram
A131L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-20012 |
AL50..3FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-32010 |
AL50..3FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-32030 |
AL50..3FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12430 |
AL50..3FC |
1 | ||
| 35412A - BODY, MANUAL VALVE | ||||
| 35412-32010 |
AL50..3FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-32010 |
AL50..3FC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-20010 |
AL50..3FC |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-20128 |
AL50..3FC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AL50..3FC LOWER |
1 | ||
| 90301-22185 |
AL50..ATM UPPER |
1 | ||
| 90301-29187 |
AL50..3FC LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AL50..3FC LOWER |
1 | ||
| 90301-22185 |
AL50..ATM UPPER |
1 | ||
| 90301-29187 |
AL50..3FC LOWER |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-20021 |
AL50..3FC |
1 | ||
| 35424-20020 |
AL50..3FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20129 |
AL50..3FC OUTER |
1 | ||
| 90501-27023 |
AL50..3FC INNER |
1 | ||
| 90501-20141 |
AL50..3FC OUTER |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20129 |
AL50..3FC OUTER |
1 | ||
| 90501-27023 |
AL50..3FC INNER |
1 | ||
| 90501-20141 |
AL50..3FC OUTER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AL50..3FC LOWER |
1 | ||
| 90301-24009 |
AL50..3FC UPPER |
1 | ||
| 90301-23194 |
AL50..3FC UPPER |
1 | ||
| 90301-29011 |
AL50..3FC LOWER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AL50..3FC LOWER |
1 | ||
| 90301-24009 |
AL50..3FC UPPER |
1 | ||
| 90301-23194 |
AL50..3FC UPPER |
1 | ||
| 90301-29011 |
AL50..3FC LOWER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-12010 |
AL50..3FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25043 |
AL50..3FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AL50..3FC LOWER |
1 | ||
| 90301-29187 |
AL50..3FC LOWER |
1 | ||
| 90301-26190 |
AL50..3FC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
AL50..3FC LOWER |
1 | ||
| 90301-29187 |
AL50..3FC LOWER |
1 | ||
| 90301-26190 |
AL50..3FC UPPER |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-12250 |
AL50..3FC |
1 | ||
| 35432-20220 |
AL50..3FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-20020 |
AL50..3FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-32020 |
AL50..3FC |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-20010 |
AL50..3FC |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32010 |
AL50..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-32010 |
AL50..3FC |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-32021 |
AL50..3FC |
1 | ||
| 35845 - TUBE, RR CLUTCH ACCUMULATOR | ||||
| 35845-32012 |
AL50..3FC |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-20020 |
AL50..3FC |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-32011 |
AL50..3FC |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-32011 |
AL50..3FC |
1 | ||

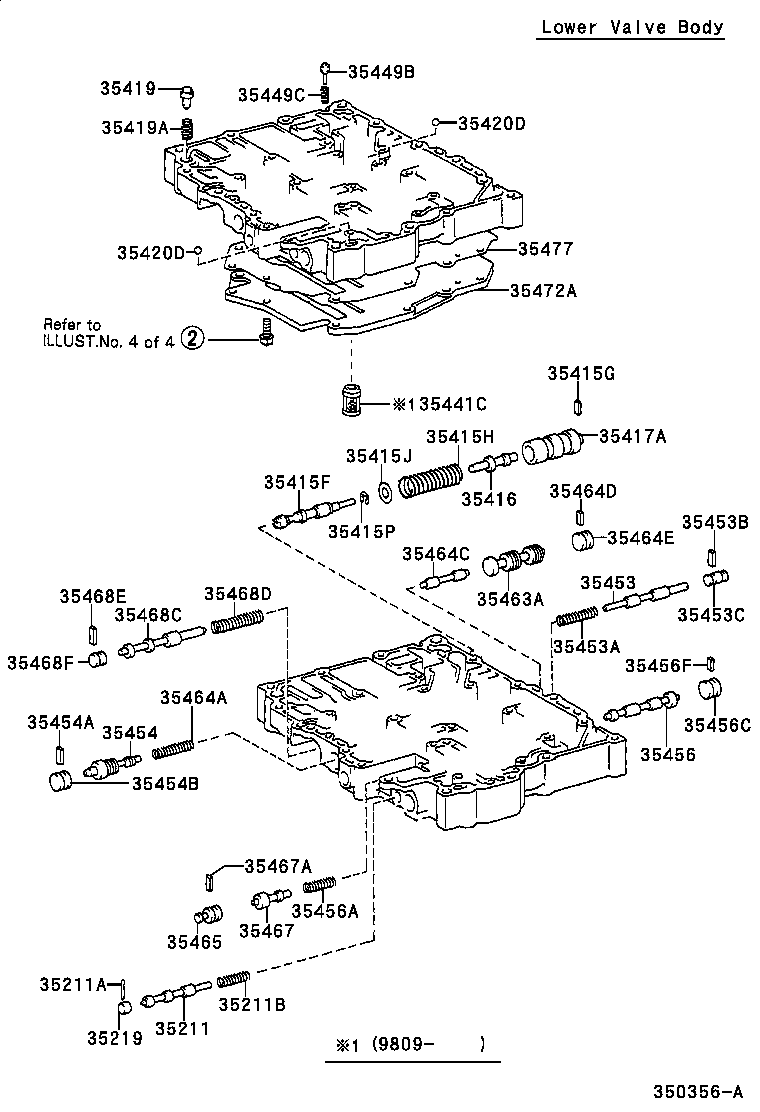

ILLUST NO. 3 OF 4(9612-9810)3FC
Click highlighted areas on diagram
A131L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-32010 |
AL50..3FC |
1 | ||
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-02013 |
AL50..3FC |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-08106 |
AL50..3FC |
1 | ||
| 35219 - PLUG, LOCK UP SIGNAL VALVE | ||||
| 35219-32010 |
AL50..3FC |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-32010 |
AL50..3FC |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03001 |
AL50..3FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16065 |
AL50..3FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 94614-10600 |
AL50..3FC |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
AL50..3FC |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-32010 |
AL50..3FC |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-32010 |
AL50..3FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
AL50..3FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
AL50..3FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22020 |
AL50..3FC OD=5.535,RUBBER |
3 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22020 |
AL50..3FC OD=5.535,RUBBER |
3 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-12010 |
AL50..3FC |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
AL50..ATM |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
AL50..ATM |
1 | ||
| 35453 - VALVE, DETENT REGULATOR | ||||
| 35453-32010 |
AL50..3FC |
1 | ||
| 35453A - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09050 |
AL50..3FC |
1 | ||
| 35453B - KEY, STRAIGHT (FOR DETENT REGULATOR VALVE) | ||||
| 90282-03002 |
AL50..ATM |
1 | ||
| 35453C - PLUG (FOR DETENT REGULATOR VALVE) | ||||
| 90339-03007 |
AL50..3FC |
1 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-32010 |
AL50..3FC |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03001 |
AL50..3FC |
1 | ||
| 35454B - PLUG (FOR LOW COAST SHIFT VALVE) | ||||
| 90339-05003 |
AL50..3FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-32010 |
AL50..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-06027 |
AL50..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05003 |
AL50..3FC |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03004 |
AL50..3FC |
1 | ||
| 35463A - VALVE, 1-2 SHIFT, LOWER | ||||
| 35463-32010 |
AL50..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06025 |
AL50..ATM |
1 | ||
| 35464C - VALVE, 1-2 SHIFT, UPPER | ||||
| 35464-32020 |
AL50..ATM |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03001 |
AL50..ATM |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05003 |
AL50..3FC |
1 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-32010 |
AL50..3FC |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-32010 |
AL50..3FC |
1 | ||
| 35467A - KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE) | ||||
| 90282-03002 |
AL50..3FC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-32011 |
AL50..3FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14059 |
AL50..3FC |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03002 |
AL50..3FC |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04026 |
AL50..3FC |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-12022 |
AL50..3FC |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-32021 |
AL50..3FC |
1 | ||

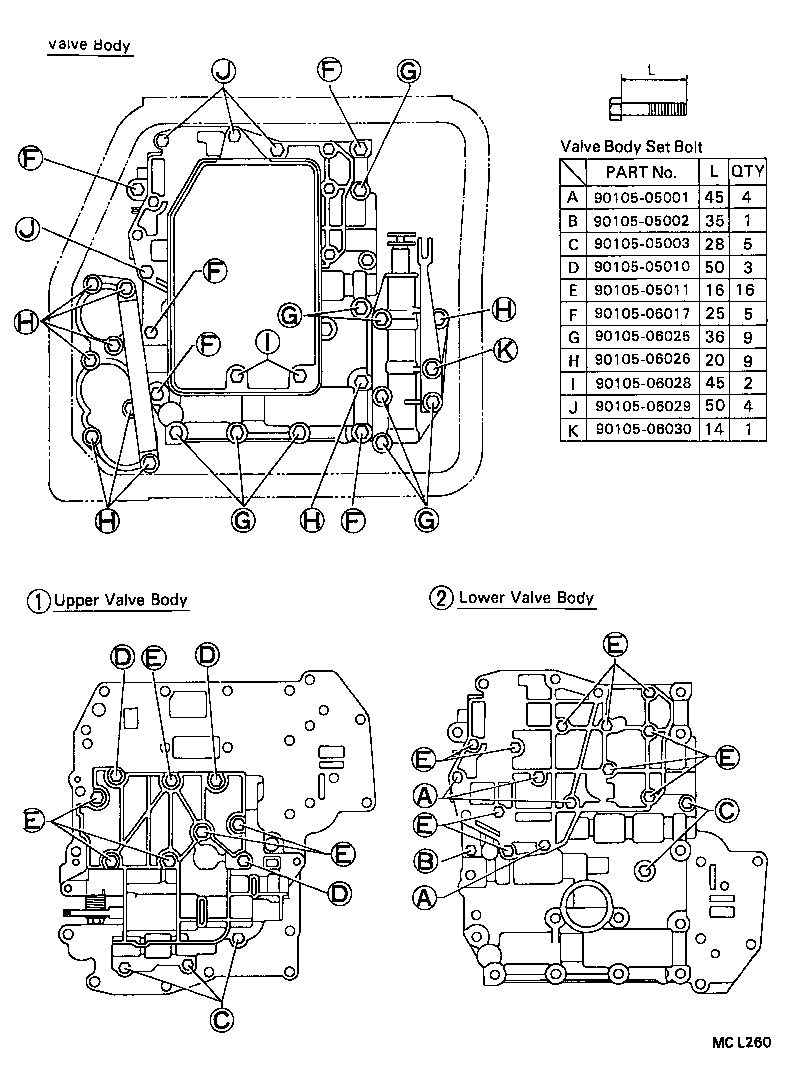

ILLUST NO. 4 OF 4(9612-9810)3FC
Click highlighted areas on diagram
A131L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05010 | ||||
| 90105-05011 | ||||
| 90105-06017 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 90105-06028 | ||||
| 90105-06029 | ||||
| 90105-06030 | ||||
ILLUST NO. 2 OF 4(9612-9810)3FC
Click highlighted areas on diagram
A131L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-32010 |
AL50..3FC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07023 |
AL50..3FC |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-32010 |
AL50..3FC |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-32010 |
AL50..3FC |
1 | ||
| 35216 - STOPPER, VALVE SLEEVE | ||||
| 35216-32010 |
AL50..3FC |
1 | ||
| 35218 - PLUG, LOCK UP RELAY VALVE | ||||
| 35218-32010 |
AL50..3FC |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03003 |
AL50..3FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-32010 |
AL50..3FC |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32010 |
AL50..3FC |
2 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32010 |
AL50..3FC |
2 | ||
| 35437A - PLATE, UPPER VALVE BODY COVER | ||||
| 35437-32010 |
AL50..3FC |
1 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-32010 |
AL50..ATM |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-32010 |
AL50..3FC |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-11013 |
AL50..3FC |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-32010 |
AL50..3FC |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09035 |
AL50..3FC |
1 | ||
| 35445S - KEY, STRAIGHT (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90282-03003 |
AL50..3FC |
1 | ||
| 35445T - PIN, STRAIGHT (FOR LOW COAST MODULATOR VALVE) | ||||
| 90250-03035 |
AL50..3FC |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 90360-06023 |
AL50..3FC 0D=5.56 |
1 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
AL50..ATM |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03036 |
AL50..3FC |
1 | ||
| 35457 - VALVE, THROTTLE MODULATOR | ||||
| 35457-32010 |
AL50..3FC |
1 | ||
| 35457D - KEY, STRAIGHT (FOR THROTTLE MODULATOR VALVE) | ||||
| 90282-03001 |
AL50..3FC |
1 | ||
| 35457E - PLUG (FOR THROTTLE MODULATOR VALVE) | ||||
| 90339-04026 |
AL50..3FC |
1 | ||
| 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) | ||||
| 90501-09037 |
AL50..3FC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-32020 |
AL50..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04028 |
AL50..3FC |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03001 |
AL50..3FC |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-32010 |
AL50..ATM |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10120 |
AL50..3FC |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-32010 |
AL50..3FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07022 |
AL50..3FC |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
AL50..ATM |
1 | ||
| 35471A - COVER, UPPER VALVE BODY | ||||
| 35471-32010 |
AL50..3FC |
1 | ||
| 35479A - SEAT, LOW MODULATOR VALVE SPRING | ||||
| 35479-32010 |
AL50..3FC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-32010 |
AL50..3FC |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-10047 |
AL50..3FC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03002 |
AL50..3FC |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04026 |
AL50..3FC |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-24010 |
AL50..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11003 |
AL50..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AL50..ATM |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90101-06021 |
AL50..3FC |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
AL50..ATM |
1 | ||
| Common parts | ||||
| 94542-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
