AL50R-AEHNK (1996)

Toyota Soluna

Production Dec 1996 - Oct 1998
Engine 5AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612-9810)3FC

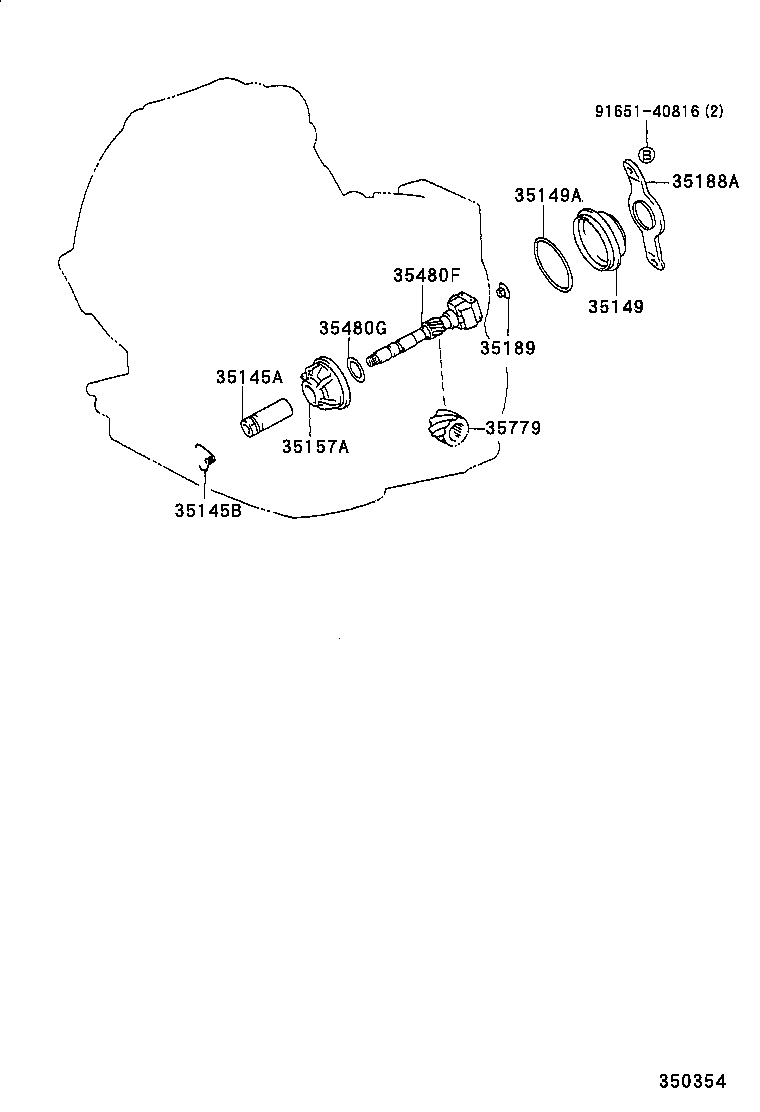

Click highlighted areas on diagram

A131L

diagram 35145A 35145B 35149 35149A 35157A 35188A 35189 35480F 35480G 35779 9165140816
Part # Description Qty Price
35145A - ADAPTER, GOVERNOR PRESSURE
35145-32011

AL50..3FC

 1
35145B - SPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)
90508-18034

AL50..3FC

 1
35149 - COVER, GOVERNOR
35149-12010

AL50..3FC

 1
35149A - RING, O (FOR GOVERNOR COVER)
90301-73001

AL50..3FC

 1
35157A - ADAPTER, GOVERNOR BODY
35157-12010

AL50..3FC

 1
35188A - BRACKET, GOVERNOR COVER
35188-12010

AL50..3FC

 1
35189 - WASHER, GOVERNOR THRUST, NO.1
35189-32011

AL50..ATM

 1
35480F - BODY ASSY, GOVERNOR
35480-32013

AL50..3FC

 1
35480G - WASHER, PLATE (FOR GOVERNOR BODY)
90201-25003

AL50..3FC

 1
35779 - GEAR, GOVERNOR DRIVE
35779-32010

AL50..3FC

 1
Common parts
91651-40816
