AL50R-AEHNK (1996)

Toyota Soluna

Production Dec 1996 - Oct 1998
Engine 5AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612-9910)5AFE..3FC,5F..GLI,XLI ; (9612- )5AFE..IDN

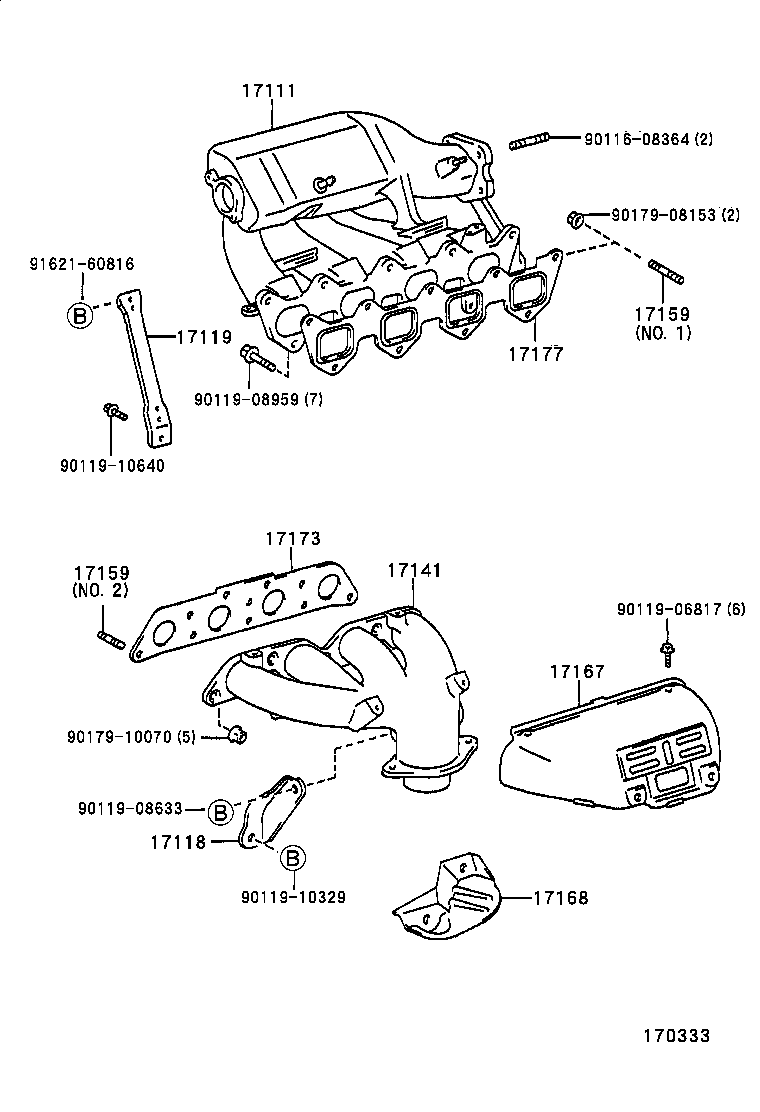

Click highlighted areas on diagram

diagram 17111 17118 17119 17141 17159 17159 17167 17168 17173 17177 9011608364 9011906817 9011908633 9011908959 9011910329 9011910640 9017908153 9017910070 9162160816
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-02070

5AFE..AL50

 1
17118 - STAY, MANIFOLD
17118-15081

5AFE..AL50..(3FC,5F)..(GLI,XLI)

 1
17119 - STAY, MANIFOLD, NO.2
17139-15050

5AFE..AL50

 1
17141 - MANIFOLD, EXHAUST
17141-15151

5AFE..AL50

(J)

 1
17141-02090

5AFE..AL50

(L)

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825

5AFE..AL50

NO.1

 2
92112-61028

5AFE..AL50

NO.2

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825

5AFE..AL50

NO.1

 2
92112-61028

5AFE..AL50

NO.2

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-02060

5AFE..AL50

(L)

 1
17167-15090

5AFE..AL50

(J)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-15031

5AFE..AL50

(J)

 1
17168-02030

5AFE..AL50

(L)

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15040

5AFE..AL50

(J)

 1
17173-02050

5AFE..AL50

(L)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-02040

5AFE..AL50

(L)

 1
17171-15030

5AFE..AL50

(J)

 1
Common parts
90116-08364
90119-06817
90119-08633
90119-08959
90119-10329
90119-10640
90179-08153
90179-10070
91621-60816
