ZSP170L-MWXNPR (2019)
Toyota Sienta (Taiwan)
Production
Nov 2019
-
Sep 9999
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1911- )

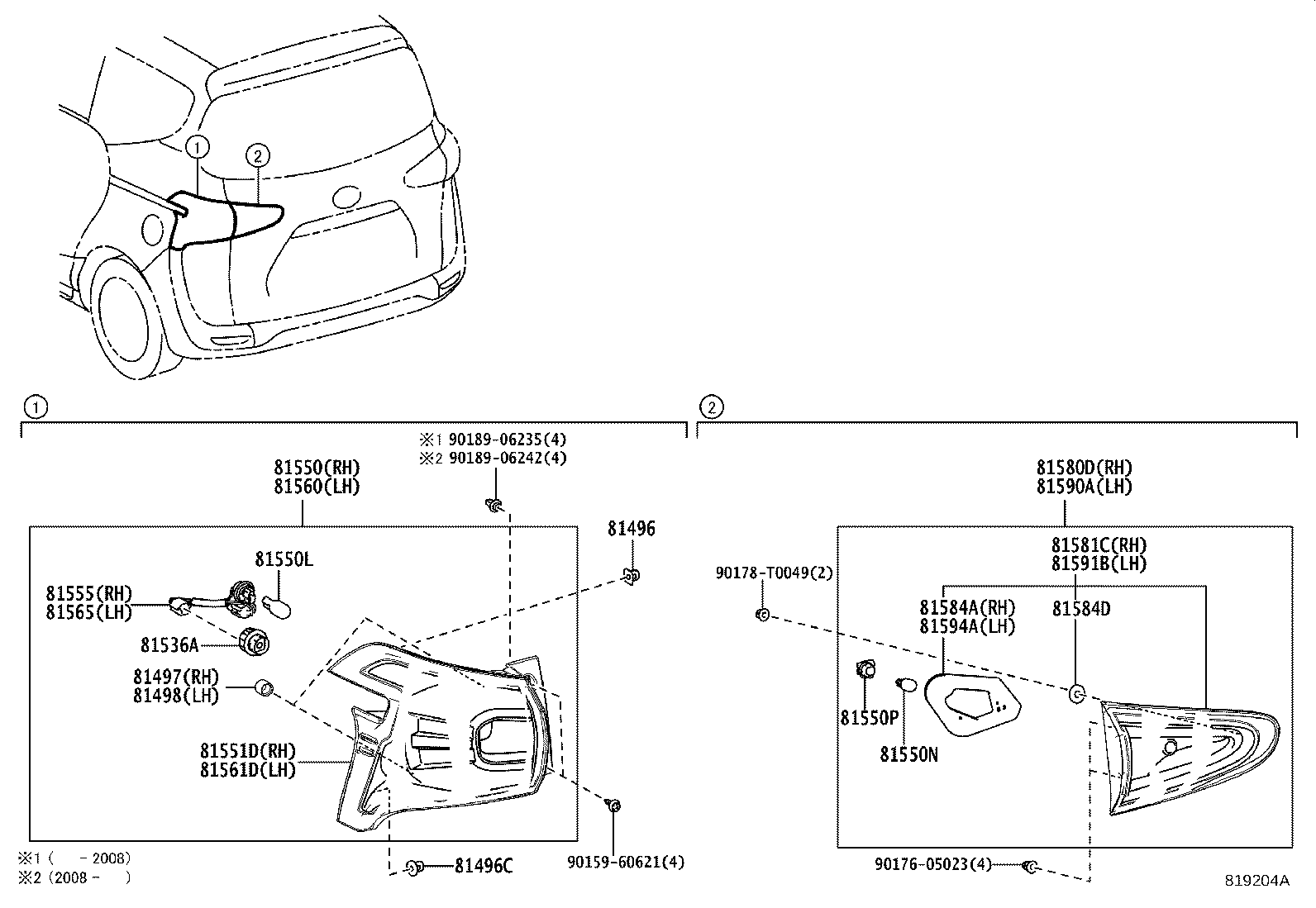

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 76817-26040 |
NSP170,ZSP170 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-52020 |
NSP170,ZSP170 |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 90075-15512 |
NSP170,ZSP170 |
2 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 90075-15512 |
NSP170,ZSP170 |
2 | ||
| 81536A - LED, REAR COMBINATION LAMP | ||||
| 81536-15120 |
NSP170,ZSP170 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0DD90 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
NSP170,ZSP170 12V 21W,AMBER |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NSP170,ZSP170 12V 16W |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 90075-99005 |
NSP170,ZSP170..D,N,W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0DD90 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0DD90 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0DD90 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0DD90 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-0DD90 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-0DB20 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-52380 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-52380 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81554-12A00 |
NSP170,ZSP170 |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0DB20 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-52380 |
NSP170,ZSP170..D,N,W |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-52380 |
NSP170,ZSP170..D,N,W |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-05023 | ||||
| 90178-T0049 | ||||
| 90189-06235 | ||||
| 90189-06242 | ||||
