ZSP170L-MWXNPR (2019)

Toyota Sienta (Taiwan)

Production Nov 2019 - Sep 9999
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )07S

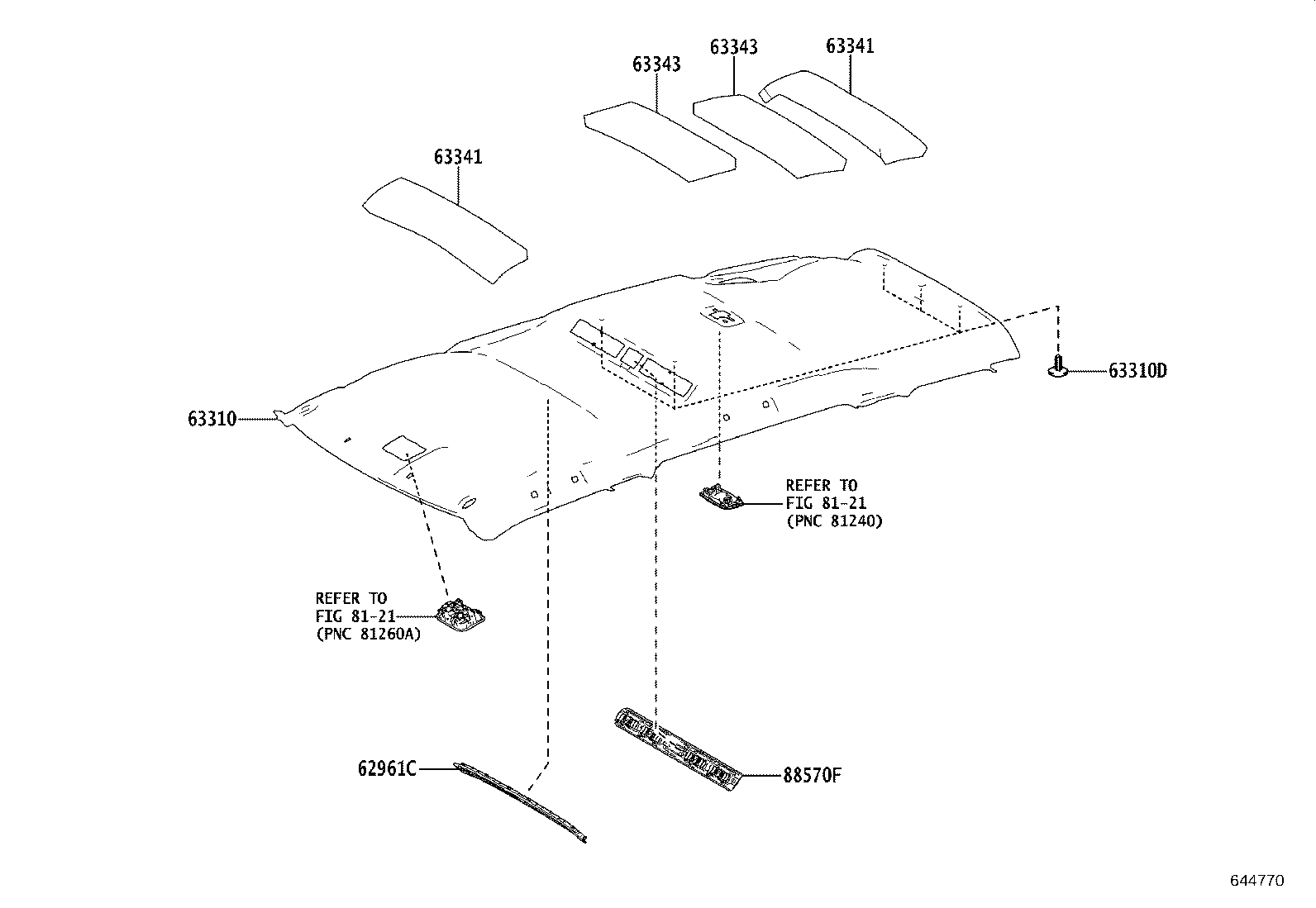

Click highlighted areas on diagram

diagram 62961C 63310 63310D 63341 63341 63343 63343 8121 8121 88570F
Part # Description Qty Price
62961C - GRILLE, ROOM VENT
62961-0D020B0

ZSP170..D

LT.GRAY,TRIM2#

 1
62961-0D020B0

ZSP170..07S..(N,Q)

LT.GRAY,TRIM0#,2#

 1
63310 - HEADLINING ASSY, ROOF
63310-0DB80B0

ZSP170..D

GRAY,TRIM2#

 1
63310-0DK30B0

ZSP170..D

GRAY,TRIM2#

 1
63310-0DK30B0

ZSP170..07S..(N,Q)

GRAY,TRIM0#,2#

 1
63310-0DB80B0

ZSP170..07S..(N,Q)

GRAY,TRIM0#,2#

 1
63310D - CLIP, ROOF HEADLINING
90467-05164B0

ZSP170..N,Q

LT.GRAY,TRIM0#,2#

 5
90467-05164B0

NSP170,ZSP170..D,W

LT.GRAY,TRIM2#

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-0D480

ZSP170..07S

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0D480

ZSP170..07S

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-0D370

ZSP170..07S

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-0D370

ZSP170..07S

 2
88570F - GRILLE ASSY, AIR OUTLET
87125-0D020B0

ZSP170..07S..(N,Q)

LT.GRAY,TRIM0#,2#

 1
87125-0D020B0

ZSP170..D

LT.GRAY,TRIM2#

 1
Linked diagrams
8121
