ZSP170L-MNXQPR (2019)
Toyota Sienta (Taiwan)
Production
Nov 2019
-
Sep 9999
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

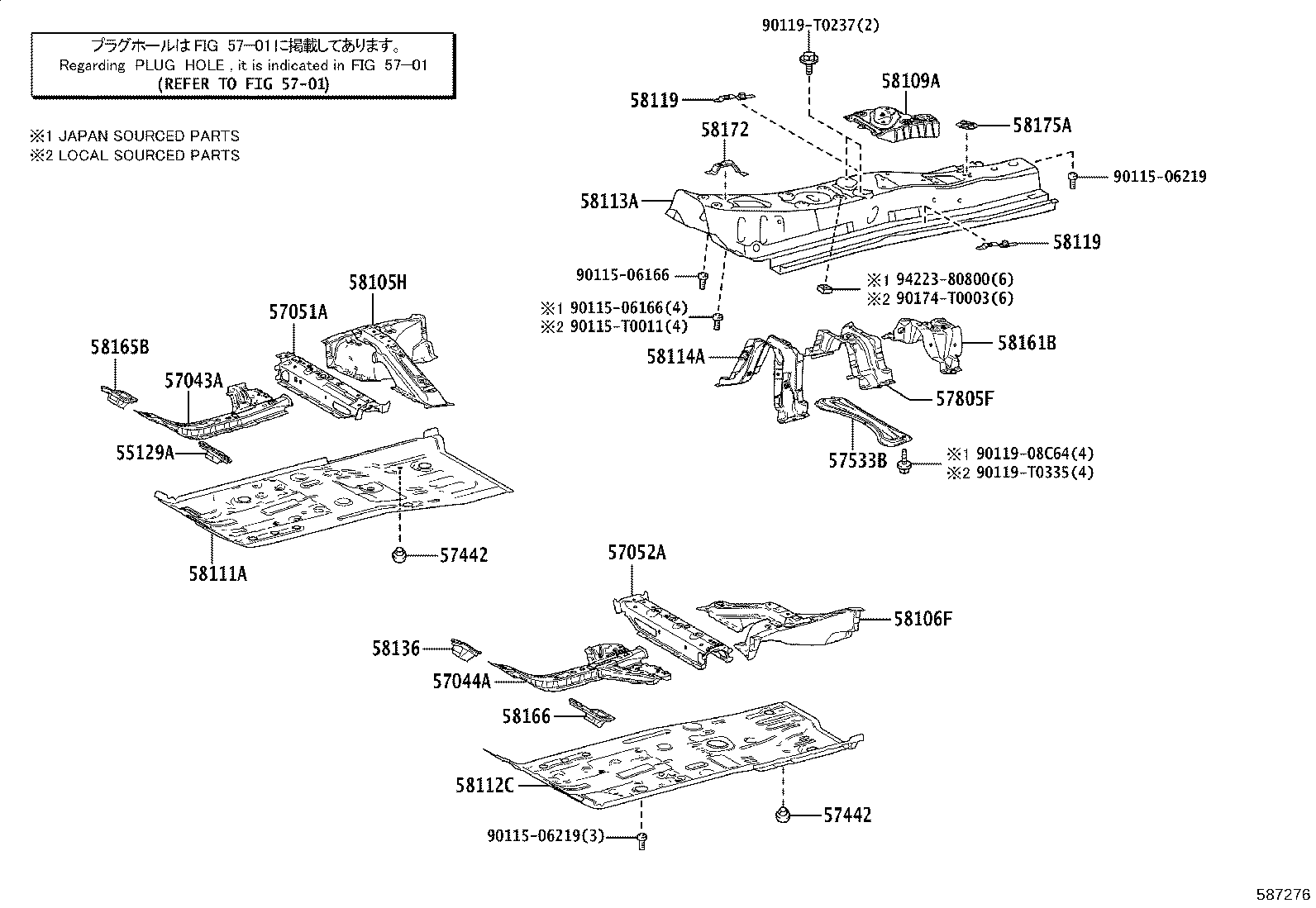

ILLUST NO. 1 OF 2(1911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129A - COVER, FRONT FLOOR HOLE | ||||
| 55129-0D110 |
NSP170,ZSP170 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-0D080 |
NSP170,ZSP170 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-0D070 |
NSP170,ZSP170 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-0D090 |
NSP170,ZSP170 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-0D090 |
NSP170,ZSP170 |
1 | ||
| 57442 - PLUG, STEP PANEL HOLE | ||||
| 57442-28030 |
NSP170,ZSP170 |
2 | ||
| 57442 - PLUG, STEP PANEL HOLE | ||||
| 57442-28030 |
NSP170,ZSP170 |
2 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-0D100 |
NSP170,ZSP170 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-0D070 |
NSP170,ZSP170 |
1 | ||
| 58105H - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE RH | ||||
| 58105-0D020 |
NSP170,ZSP170 |
1 | ||
| 58106F - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH | ||||
| 58106-0D020 |
NSP170,ZSP170 |
1 | ||
| 58109A - RETAINER SUB-ASSY, PARKING BRAKE | ||||
| 58109-0D020 |
NSP170,ZSP170 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-0D250 |
NSP170,ZSP170 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-0D911 |
NSP170,ZSP170 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-0D914 |
NSP170,ZSP170 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-0D060 |
NSP170,ZSP170 |
1 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-0D150 |
NSP170,ZSP170 |
2 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-0D150 |
NSP170,ZSP170 |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 55139-0D030 |
NSP170,ZSP170 |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-0D160 |
NSP170,ZSP170 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-0D010 |
NSP170,ZSP170 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-0D010 |
NSP170,ZSP170 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-0D020 |
NSP170,ZSP170 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-0D010 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-T0011 | ||||
| 90119-08C64 | ||||
| 90119-T0237 | ||||
| 90119-T0335 | ||||
| 90174-T0003 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5701 | ||||
