ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )ZSP170

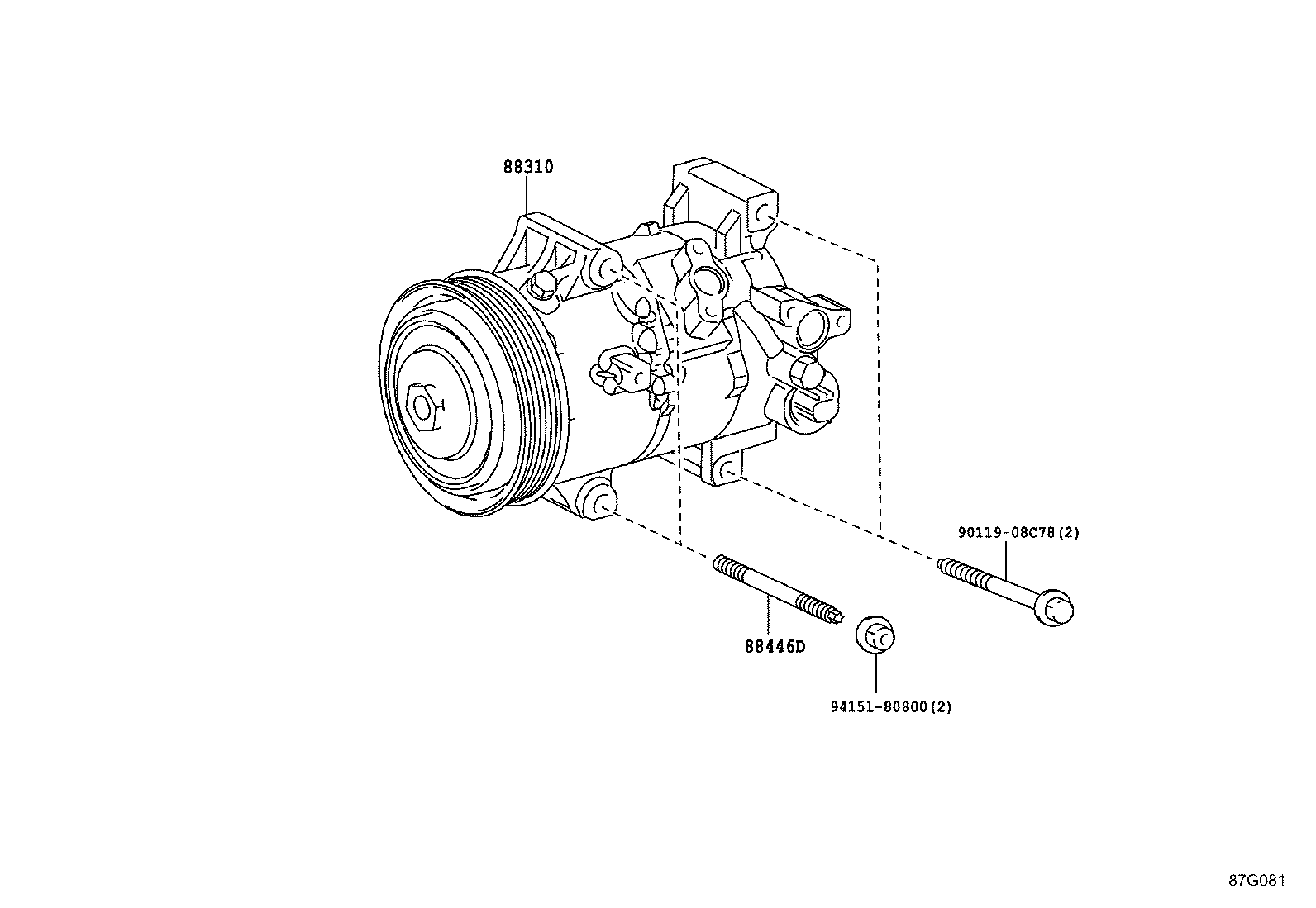

Click highlighted areas on diagram

diagram 88310 88446D 9011908C78 9415180800
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-02A02

ZSP170

 1
88446D - BOLT, COOLER
88446-42030

NSP170,ZSP170

 2
Common parts
90119-08C78
94151-80800
