ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

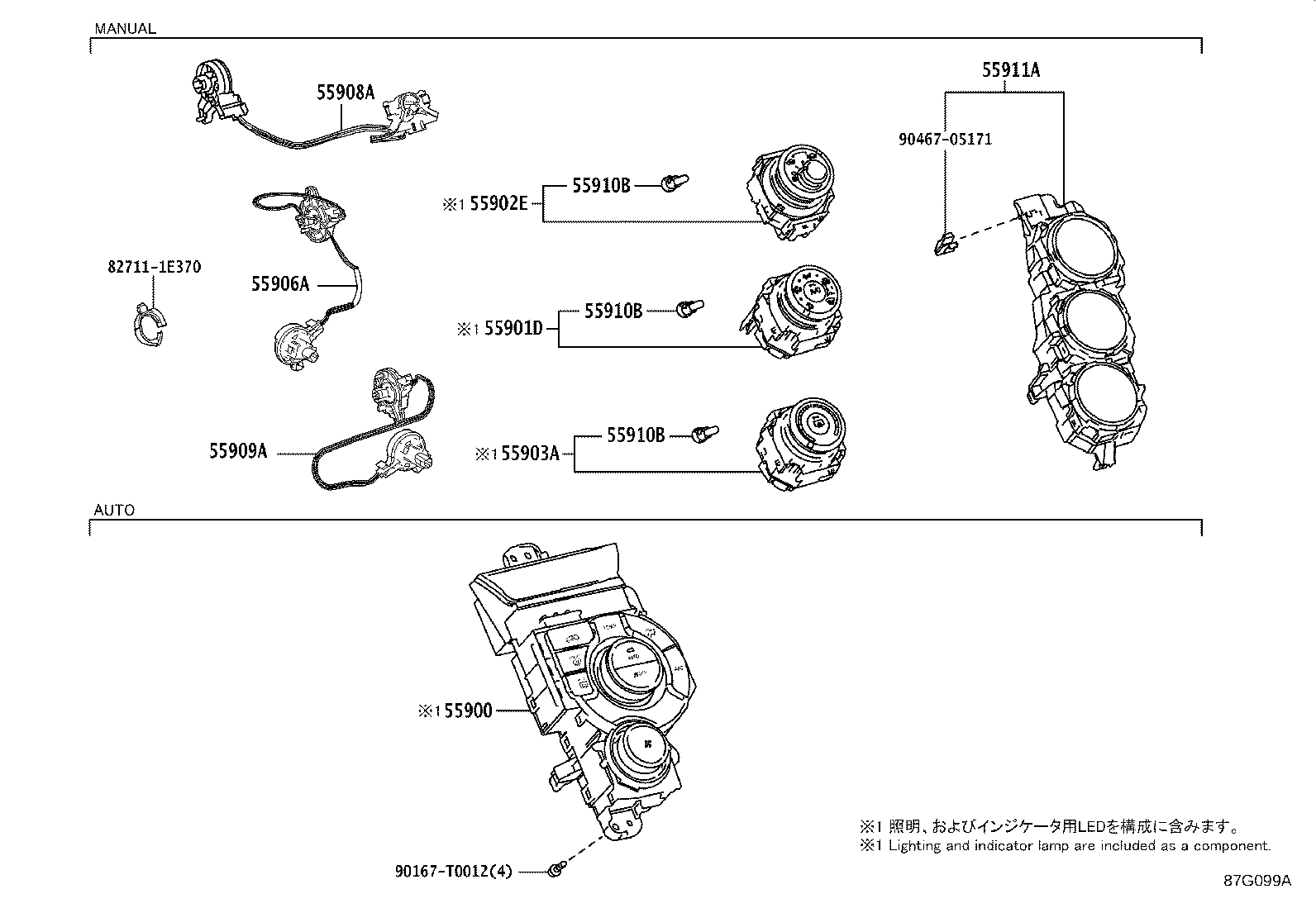

HEATER CONTROL PANEL

diagram 55900 55901D 55902E 55903A 55906A 55908A 55909A 55910B 55910B 55910B 55911A 827111E370 90167T0012 9046705171
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-52A90A0

ZSP170

FROMAGE,TRIM0#

 1
55900-52A90C0

ZSP170

BLACK,TRIM2#

 1
Common parts
82711-1E370
90167-T0012
90467-05171

(1611- )

Click highlighted areas on diagram

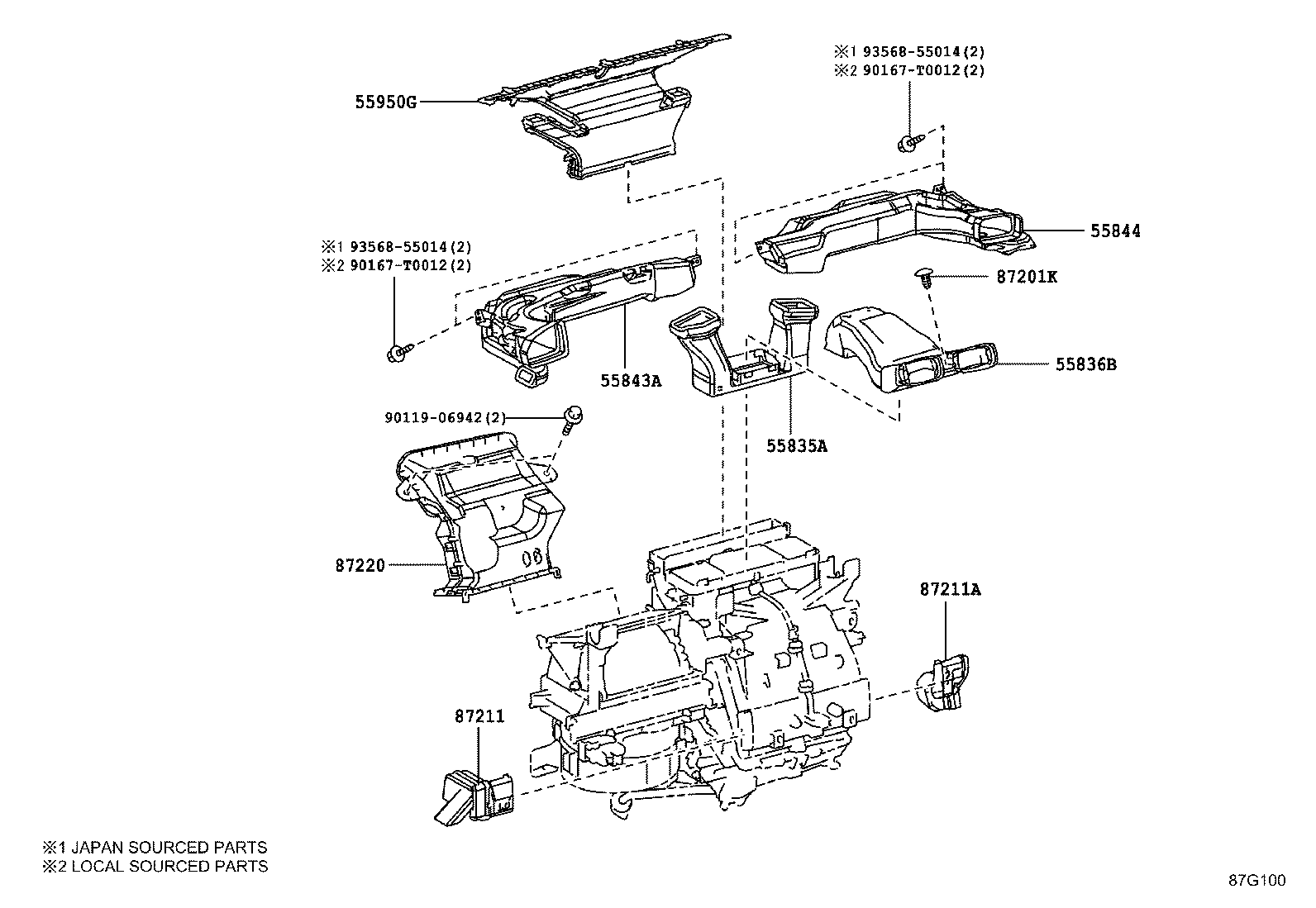

AIR DUCT

diagram 55835A 55836B 55843A 55844 55950G 87201K 87211 87211A 87220 9011906942 90167T0012 90167T0012 9356855014 9356855014
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-0D070

NSP170,ZSP170

 1
55836B - DUCT, HEATER TO RESISTER, CENTER, NO.2
55836-0D090

NSP170,ZSP170

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55084-0D180

NSP170,ZSP170

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55086-0D020

NSP170,ZSP170

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D260

NSP170,ZSP170

 1
87201K - CLIP (FOR AIR DUCT)
90467-05161B0

NSP170,ZSP170

DK.GRAY,(J)

 1
90467-T0002B2

NSP170,ZSP170

DK.GRAY,(L)

 1
87211 - DUCT, AIR, NO.1
87211-0D490

NSP170,ZSP170

 1
87211A - DUCT, AIR, NO.2
87211-0D500

NSP170,ZSP170

 1
87220 - DUCT ASSY, AIR
87220-0D040

NSP170,ZSP170

 1
Common parts
90119-06942
90167-T0012
93568-55014

(1611-1911)

Click highlighted areas on diagram

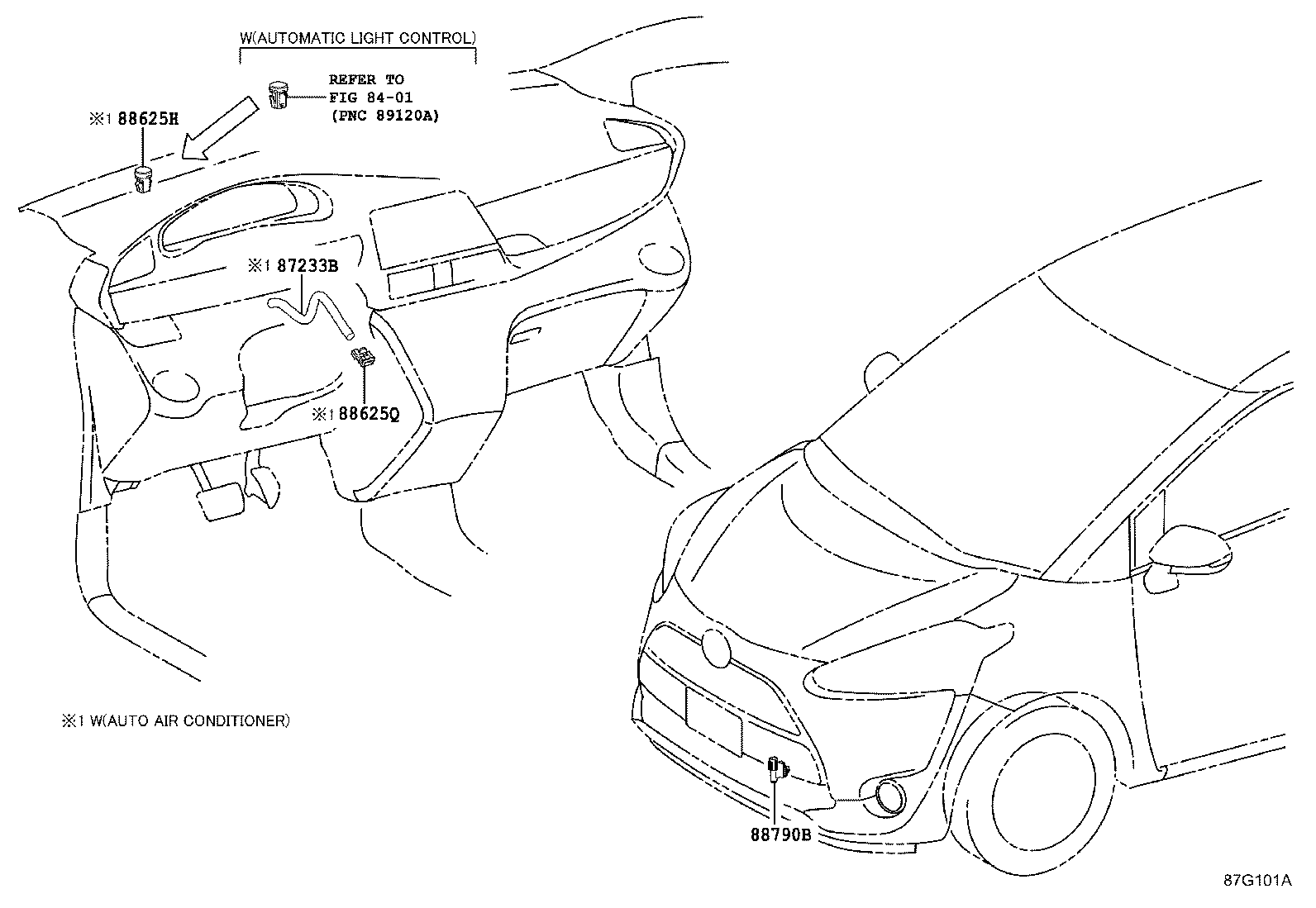

SENSOR

diagram 8401 87233B 88625H 88625Q 88790B
Part # Description Qty Price
87233B - HOSE, AIR
87233-0D050

ZSP170

 1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130

ZSP170..N

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZSP170

 1
88790B - THERMISTOR ASSY
88790-28100

NSP170,ZSP170

 1
Linked diagrams
8401
