ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )ZSP170

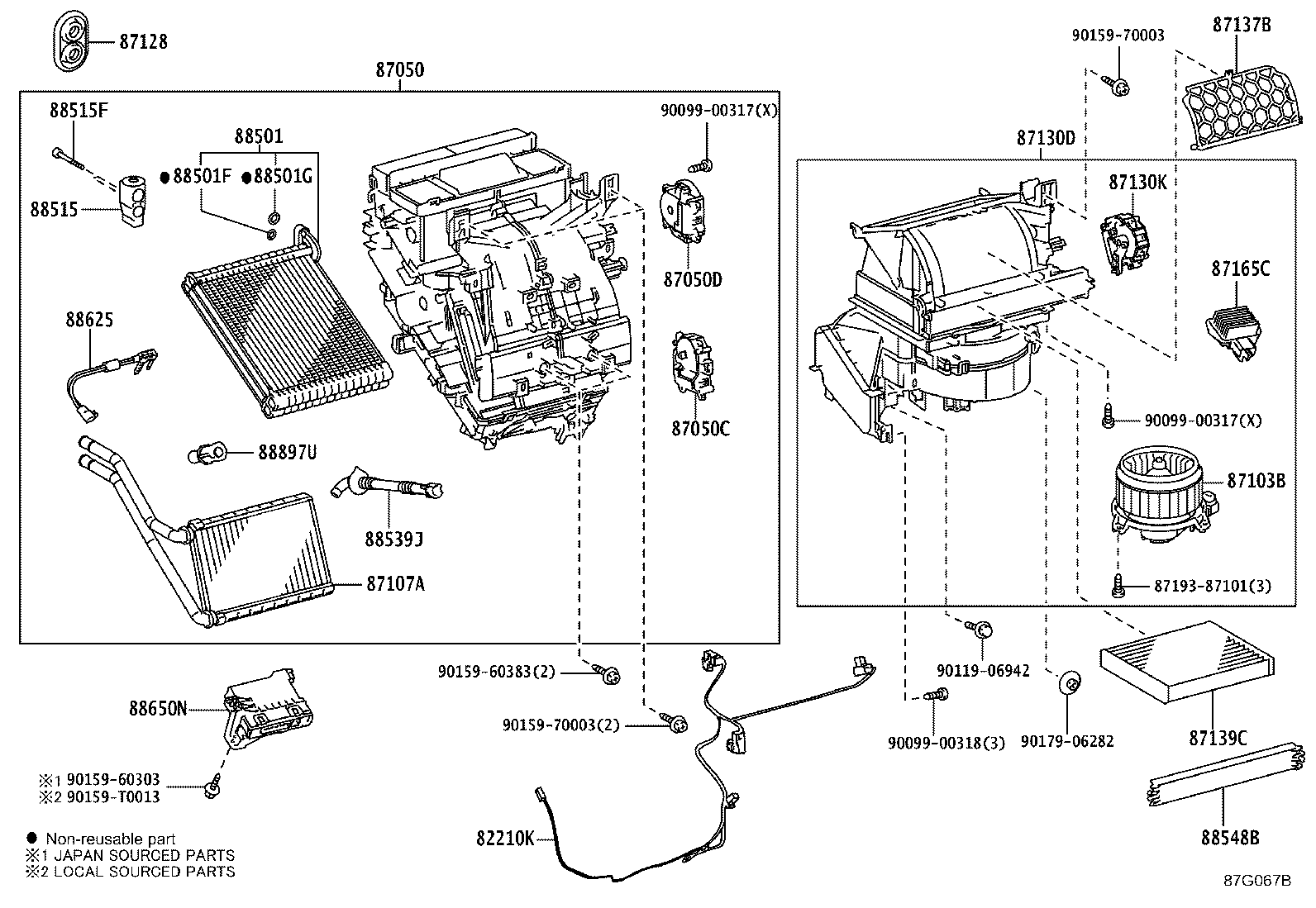

Click highlighted areas on diagram
FRONT AIR CONDITIONER(AUTO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0D080 |
ZSP170 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0D560 |
ZSP170 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-52080 |
ZSP170 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-52090 |
ZSP170 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D430 |
NSP170,ZSP170 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D080 |
NSP170,ZSP170 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 90480-01696 |
NSP170,ZSP170 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0D240 |
ZSP170 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-52100 |
ZSP170 |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-0D030 |
NSP170,ZSP170 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-06070 |
NSP170,ZSP170 STANDARD,OE PART |
1 | ||
| 87139-50100 |
NSP170,ZSP170 POLLEN DEODORANT |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0D050 |
ZSP170 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D121 |
NSP170,ZSP170 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP170,ZSP170 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NSP170,ZSP170 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D170 |
ZSP170 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04597 |
NSP170,ZSP170 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D230 |
NSP170,ZSP170 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D060 |
NSP170,ZSP170 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D210 |
NSP170,ZSP170 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52C40 |
ZSP170 |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-0D030 |
ZSP170 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00317 | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90159-T0013 | ||||
| 90179-06282 | ||||
