ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-1911)

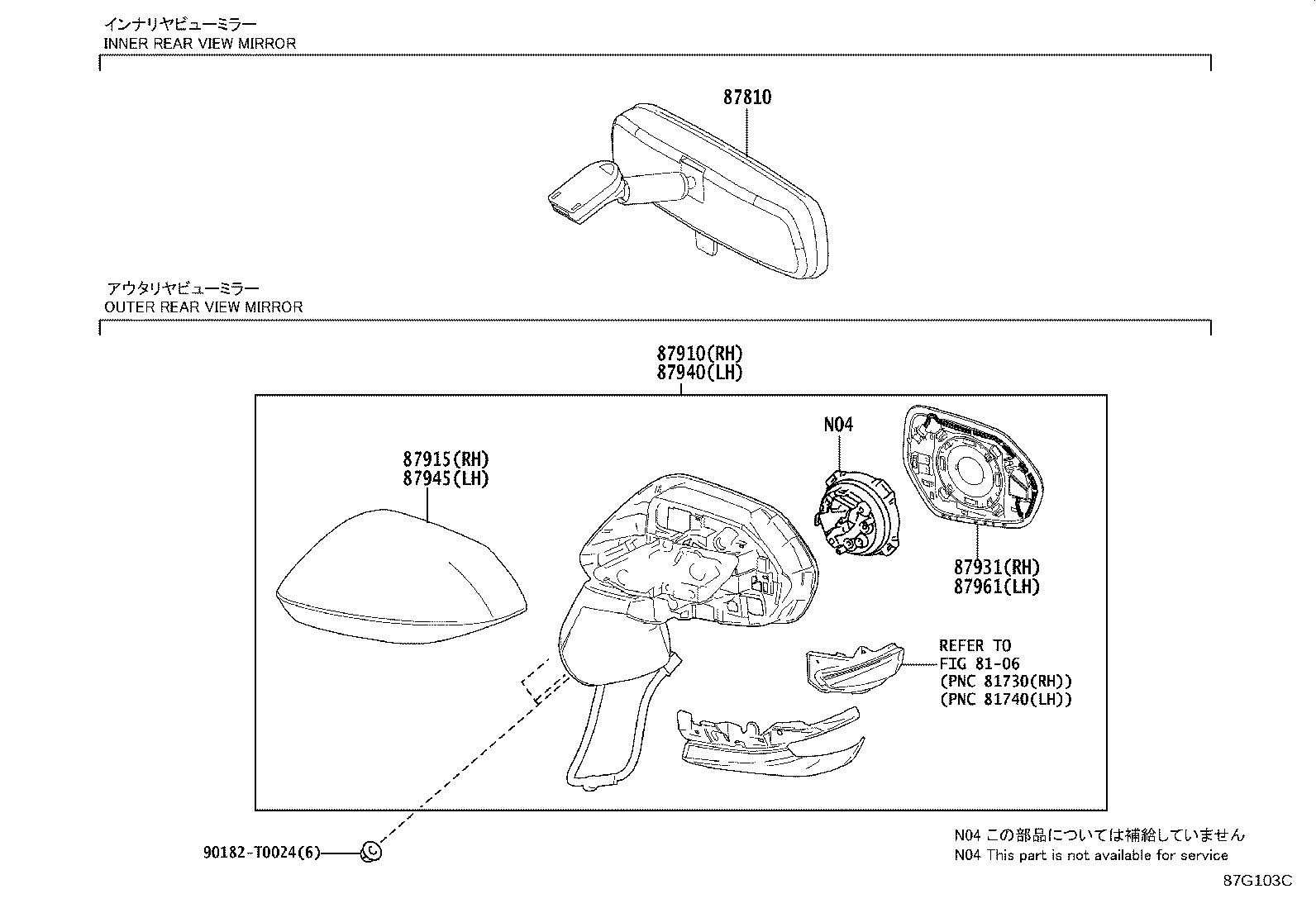

Click highlighted areas on diagram

diagram 8106 87810 87910 87915 87931 87940 87945 87961 90182T0024
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06030

NSP170,ZSP170

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0D928

ZSP170

PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-0D930

NSP170,ZSP170

PAINT REQ.

 1
87931 - OUTER MIRROR, RH
87931-0DD00

NSP170,ZSP170

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0D928

ZSP170

PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-0D929

NSP170,ZSP170

PAINT REQ.

 1
87961 - MIRROR OUTER, LH
87961-0D810

NSP170,ZSP170

 1
Common parts
90182-T0024
Linked diagrams
8106
