ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

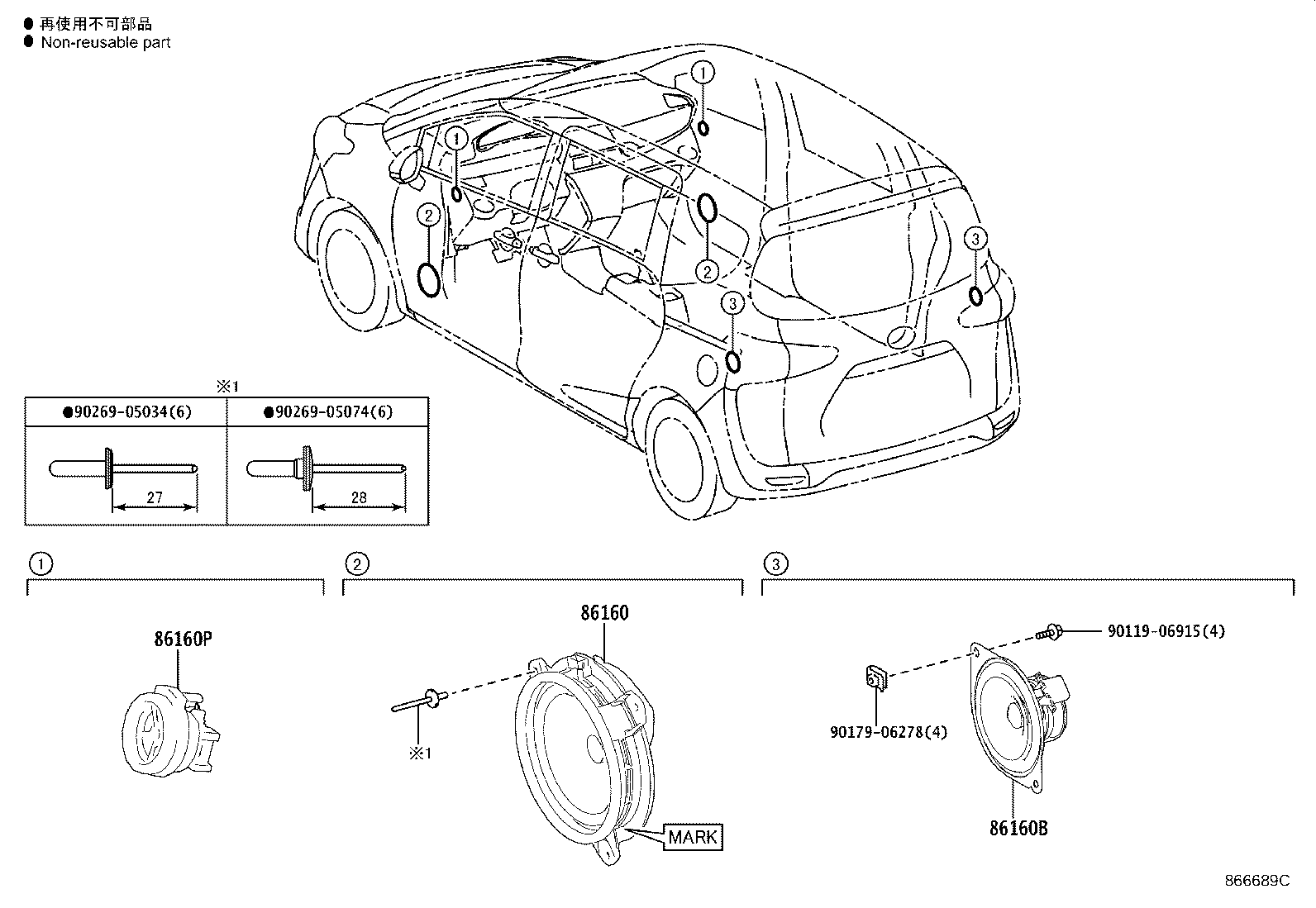

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9011906915 9017906278 9026905034 9026905074
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0K350

NSP170,ZSP170

 2
86160-0K350

NSP170,ZSP170

P/N LABEL=861600K350

 2
86160-02750

NSP170,ZSP170

P/N LABEL=8616002750

 2
86160B - SPEAKER ASSY, REAR
86160-52110

NSP170,ZSP170

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-02A90

ZSP170..Q,U

 2
Common parts
90119-06915
90179-06278
90269-05034
90269-05074
