ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

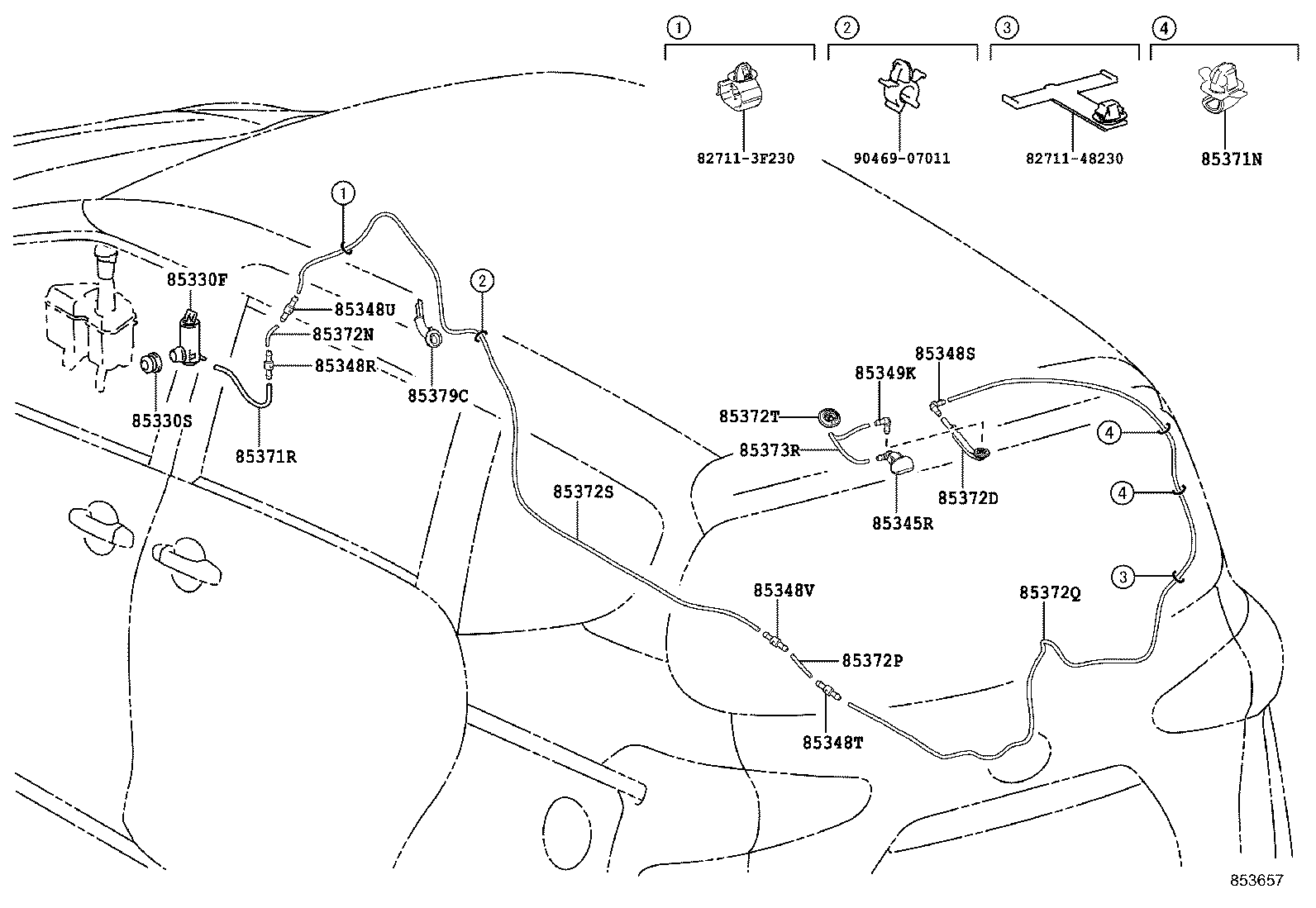

Click highlighted areas on diagram

diagram 827113F230 8271148230 85330F 85330S 85345R 85348R 85348S 85348T 85348U 85348V 85349K 85371N 85371R 85372D 85372N 85372P 85372Q 85372S 85372T 85373R 85379C 9046907011
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-0D201

NSP170,ZSP170

 1
85330-0D200

NSP170,ZSP170

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

NSP170,ZSP170

 1
85345R - NOZZLE, REAR WASHER
85391-0D090

NSP170,ZSP170

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

NSP170,ZSP170

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

NSP170,ZSP170

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-10260

NSP170,ZSP170

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-10260

NSP170,ZSP170

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-10260

NSP170,ZSP170

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

NSP170,ZSP170

 1
85371N - CLAMP, REAR WASHER HOSE
85371-12040

NSP170,ZSP170

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90068-59137

NSP170,ZSP170

L=160

 1
85372D - GROMMET, REAR WASHER HOSE
85372-20040

NSP170,ZSP170

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

NSP170,ZSP170

*H,L=50

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

NSP170,ZSP170

*H,L=50

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-59151

NSP170,ZSP170

L=2700

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33589

NSP170,ZSP170

*H,L=2600

 1
85372T - GROMMET, WASHER
85372-20020

NSP170,ZSP170

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

NSP170,ZSP170

*H,L=265

 1
85379C - GROMMET, REAR WASHER HOSE NO.1
85379-52530

NSP170,ZSP170

 1
Common parts
82711-3F230
82711-48230
90469-07011
