ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

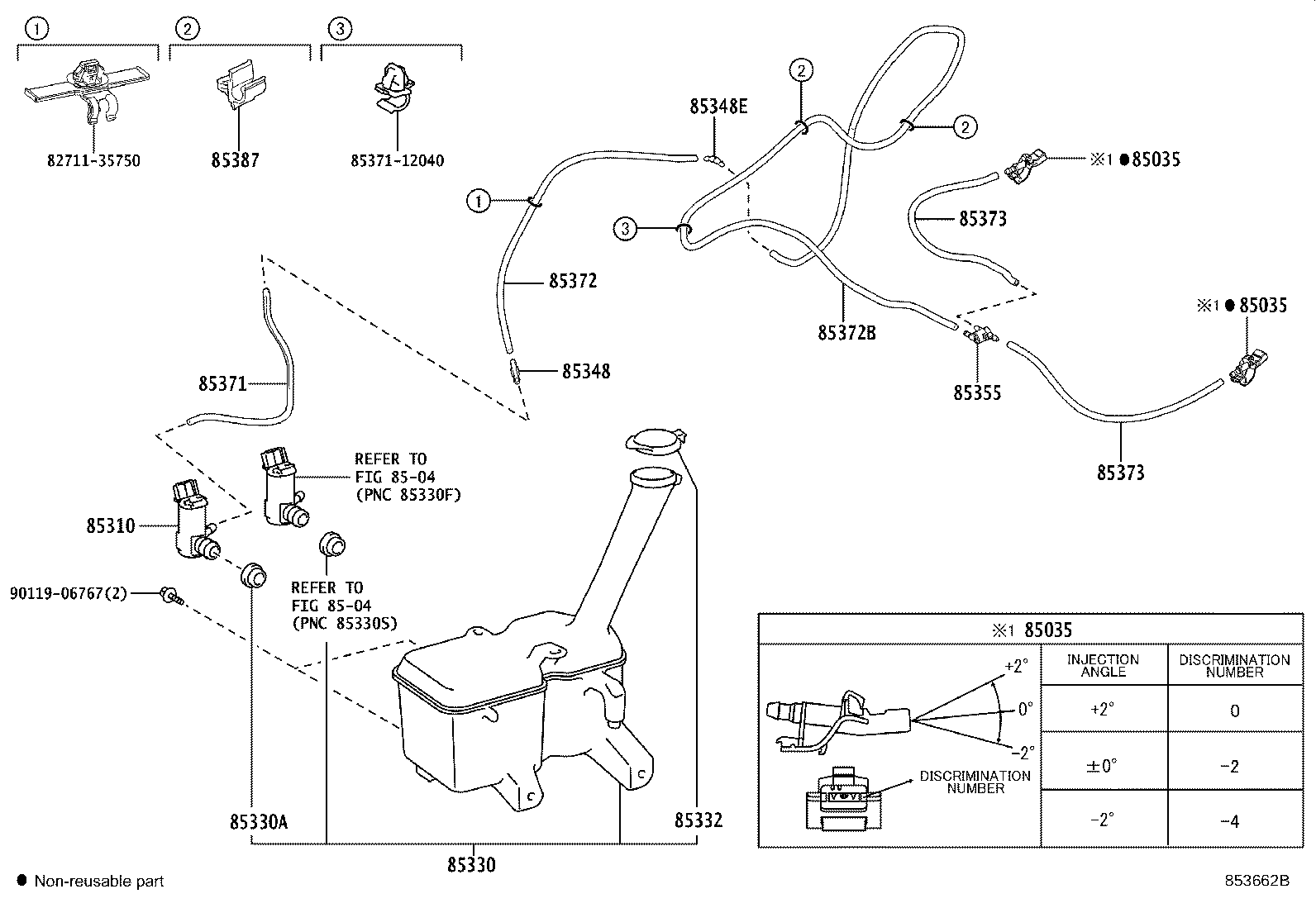

Click highlighted areas on diagram

diagram 8271135750 85035 85035 85035 8504 8504 85310 85330 85330A 85332 85348 85348E 85355 85371 8537112040 85372 85372B 85373 85373 85387 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12410

NSP170,ZSP170

ANGLE -2

 2
85381-12400

NSP170,ZSP170

ANGLE 0

 2
85381-12420

NSP170,ZSP170

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12420

NSP170,ZSP170

ANGLE +2

 2
85381-12410

NSP170,ZSP170

ANGLE -2

 2
85381-12400

NSP170,ZSP170

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12410

NSP170,ZSP170

ANGLE -2

 2
85381-12400

NSP170,ZSP170

ANGLE 0

 2
85381-12420

NSP170,ZSP170

ANGLE +2

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0K011

NSP170,ZSP170

 1
85330-0K010

NSP170,ZSP170

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0D300

NSP170,ZSP170

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

NSP170,ZSP170

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0D300

NSP170,ZSP170

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

NSP170,ZSP170

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

NSP170,ZSP170

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

NSP170,ZSP170

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33300

NSP170,ZSP170

L=210

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

NSP170,ZSP170

*H,L=830

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

NSP170,ZSP170

*H,L=1200

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

NSP170,ZSP170

*H,L=370

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

NSP170,ZSP170

*H,L=370

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85375-12540

NSP170,ZSP170

 2
Common parts
82711-35750
85371-12040
90119-06767
Linked diagrams
8504
