ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )ZSP170..D,Q,U

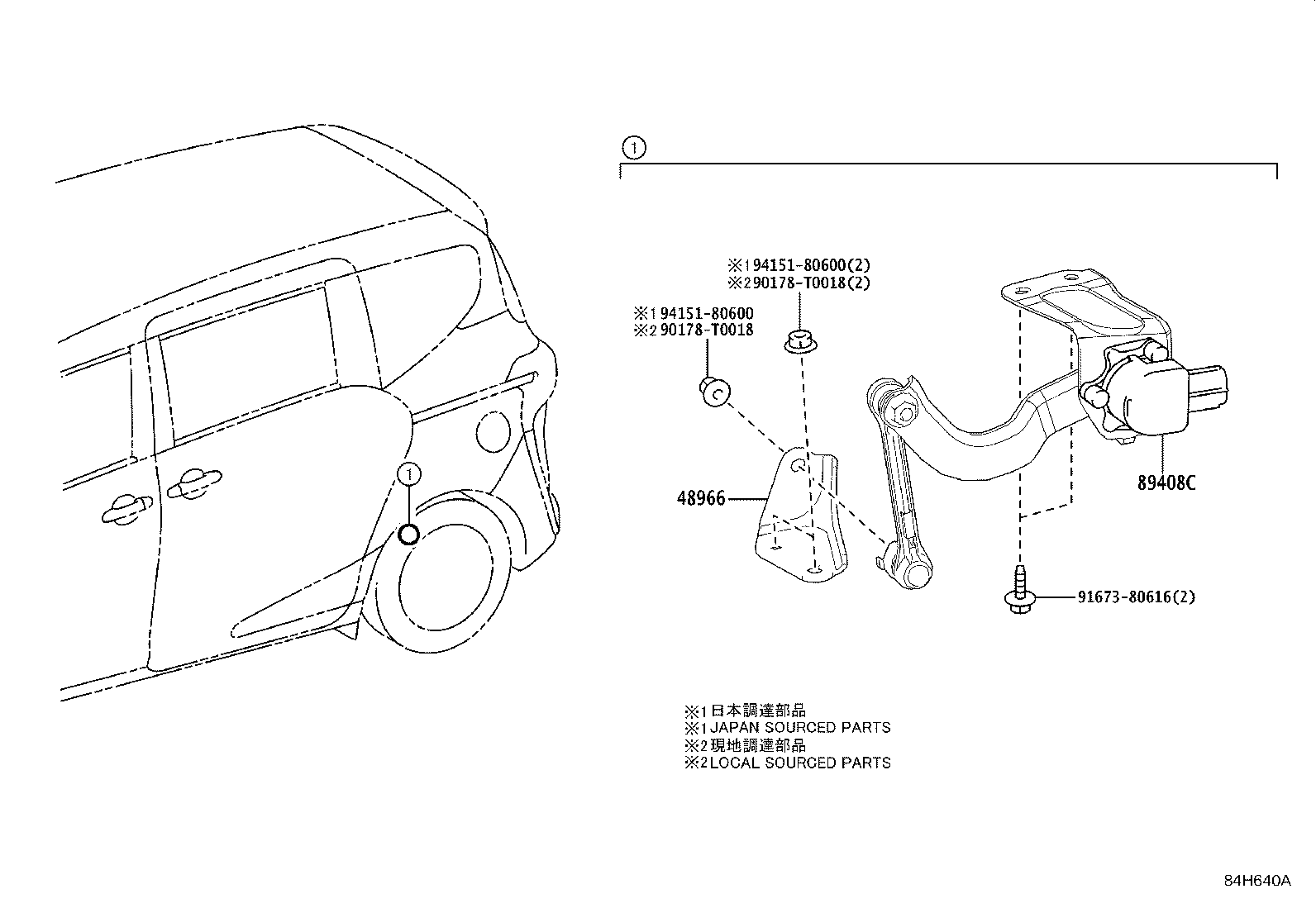

Click highlighted areas on diagram

diagram 48966 89408C 90178T0018 90178T0018 9167380616 9415180600 9415180600
Part # Description Qty Price
48966 - BRACKET, SENSOR CONNECTING, REAR
48966-68010

ZSP170..Q,U

 1
89408C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
89408-52010

ZSP170..Q,U

 1
Common parts
90178-T0018
91673-80616
94151-80600
