ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

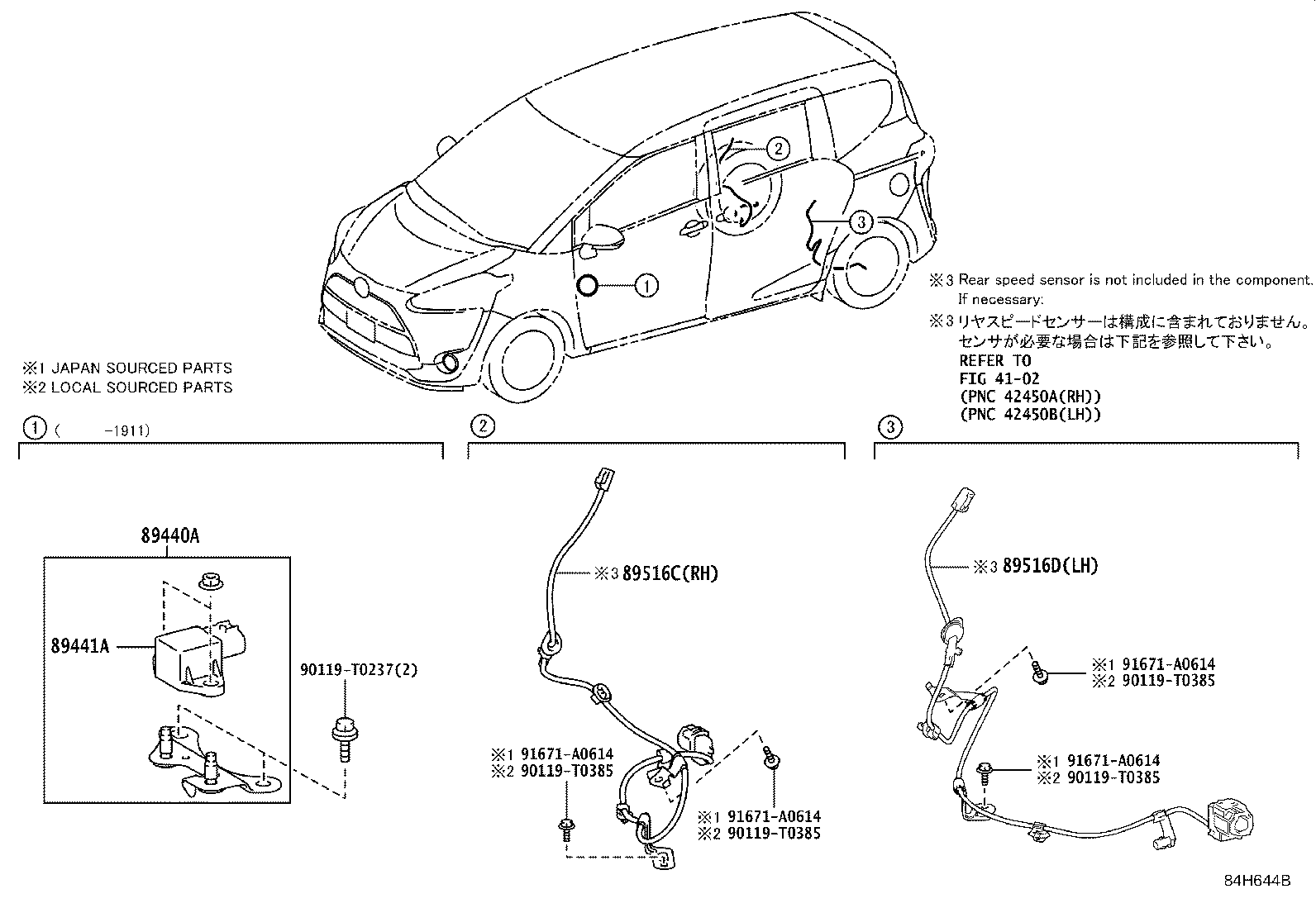

Click highlighted areas on diagram

diagram 4102 89440A 89441A 89516C 89516D 90119T0237 90119T0385 90119T0385 90119T0385 90119T0385 91671A0614 91671A0614 91671A0614 91671A0614
Part # Description Qty Price
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-52170

NSP170,ZSP170

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-52180

NSP170,ZSP170

 1
Common parts
90119-T0237
90119-T0385
91671-A0614
Linked diagrams
4102
