ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

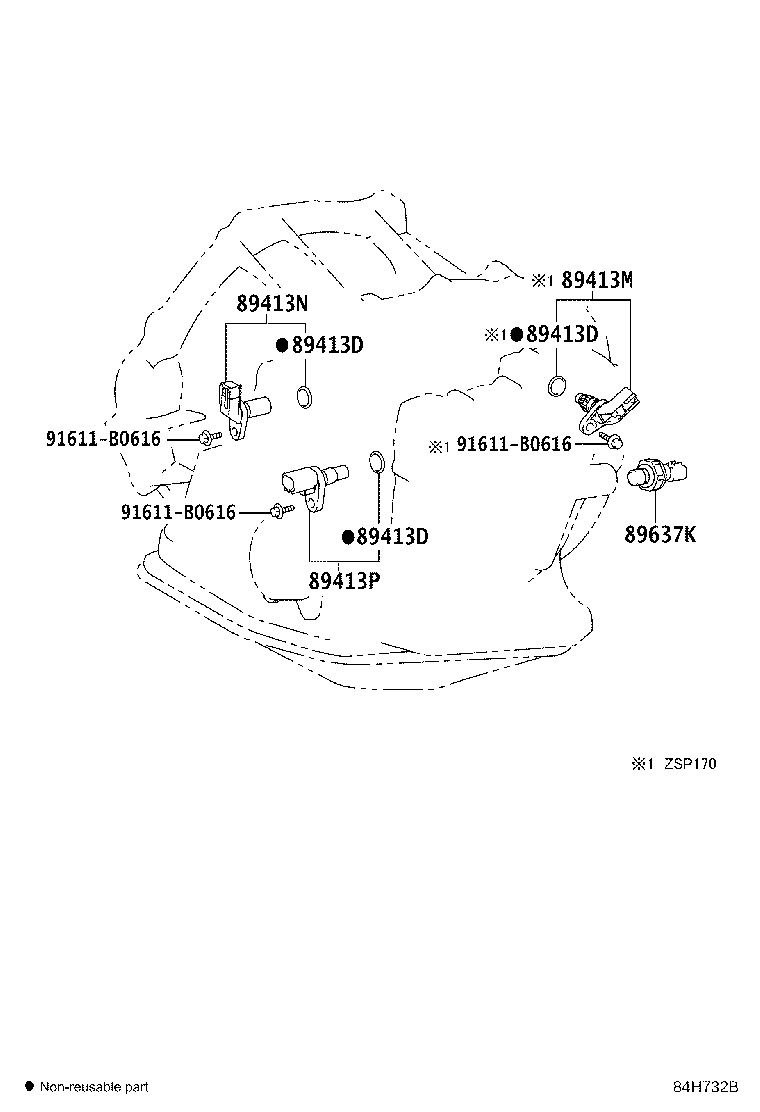

Click highlighted areas on diagram

K312,K311

diagram 89413D 89413D 89413D 89413M 89413N 89413P 89637K 91611B0616 91611B0616 91611B0616
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZSP170

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZSP170

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZSP170

 3
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-12020

ZSP170

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-12020

NSP170,ZSP170

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-60020

NSP170,ZSP170

 1
89413-60021

NSP170,ZSP170

 1
89637K - SENSOR, OIL PRESSURE
89637-63010

NSP170,ZSP170

 1
Common parts
91611-B0616
