ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )ZSP170

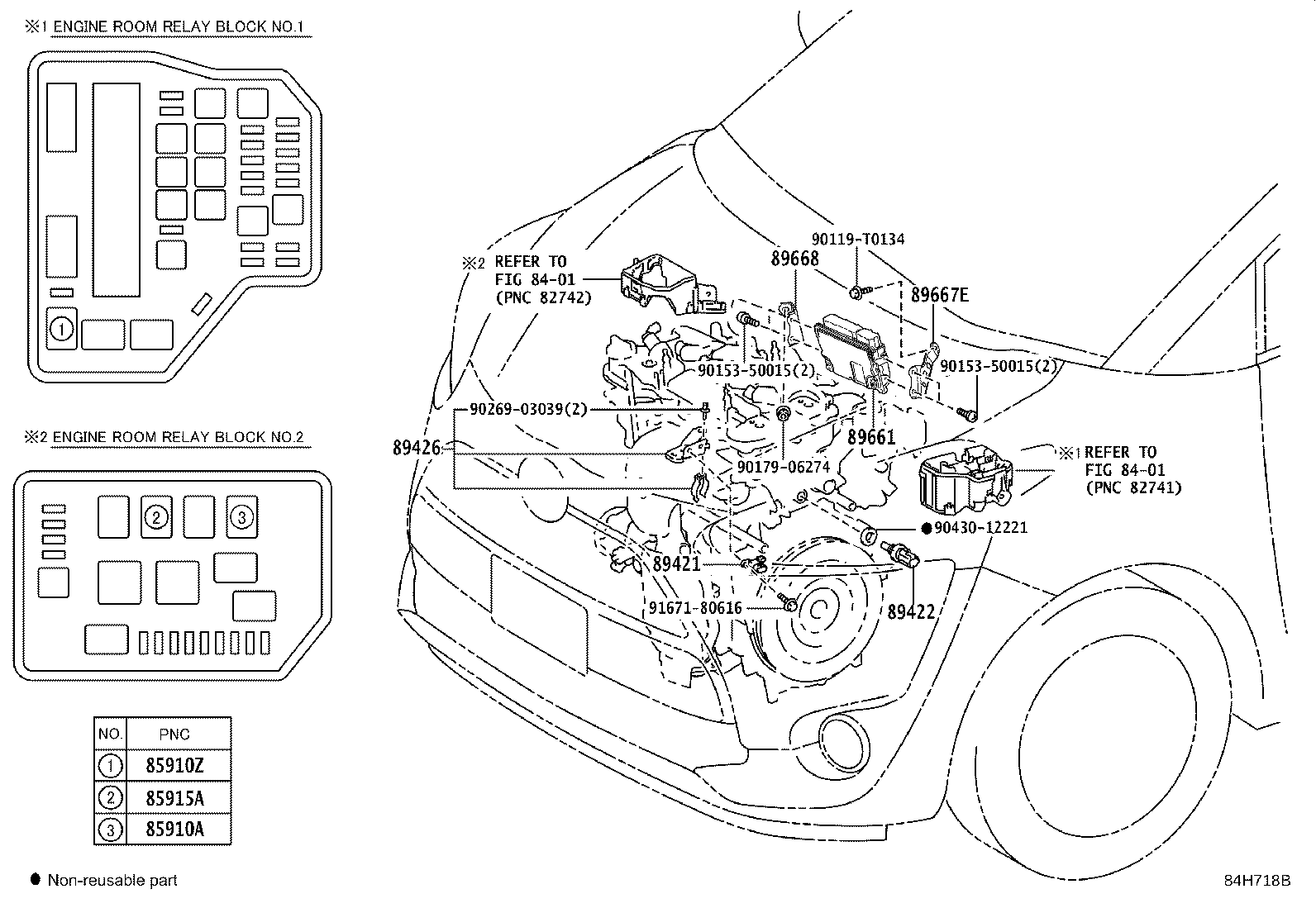

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02027 |
ZSP170 (J) |
1 | ||
| 90987-T2001 |
ZSP170 (L) |
1 | ||
| 85910Z - RELAY, INJECTION (FOR EFI) | ||||
| 90987-T2001 |
ZSP170 (L) |
1 | ||
| 90987-02027 |
ZSP170 (J) |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-T2001 |
ZSP170 (L) |
1 | ||
| 90987-02027 |
ZSP170 (J) |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-26030 |
ZSP170 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
NSP170,ZSP170 |
1 | ||
| 89426 - BRACKET, VACUUM SENSOR | ||||
| 89426-13020 |
ZSP170 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-0DR90 |
ZSP170 |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-0D380 |
NSP170,ZSP170 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-0D230 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90119-T0134 | ||||
| 90153-50015 | ||||
| 90179-06274 | ||||
| 90269-03039 | ||||
| 90430-12221 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
