ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)

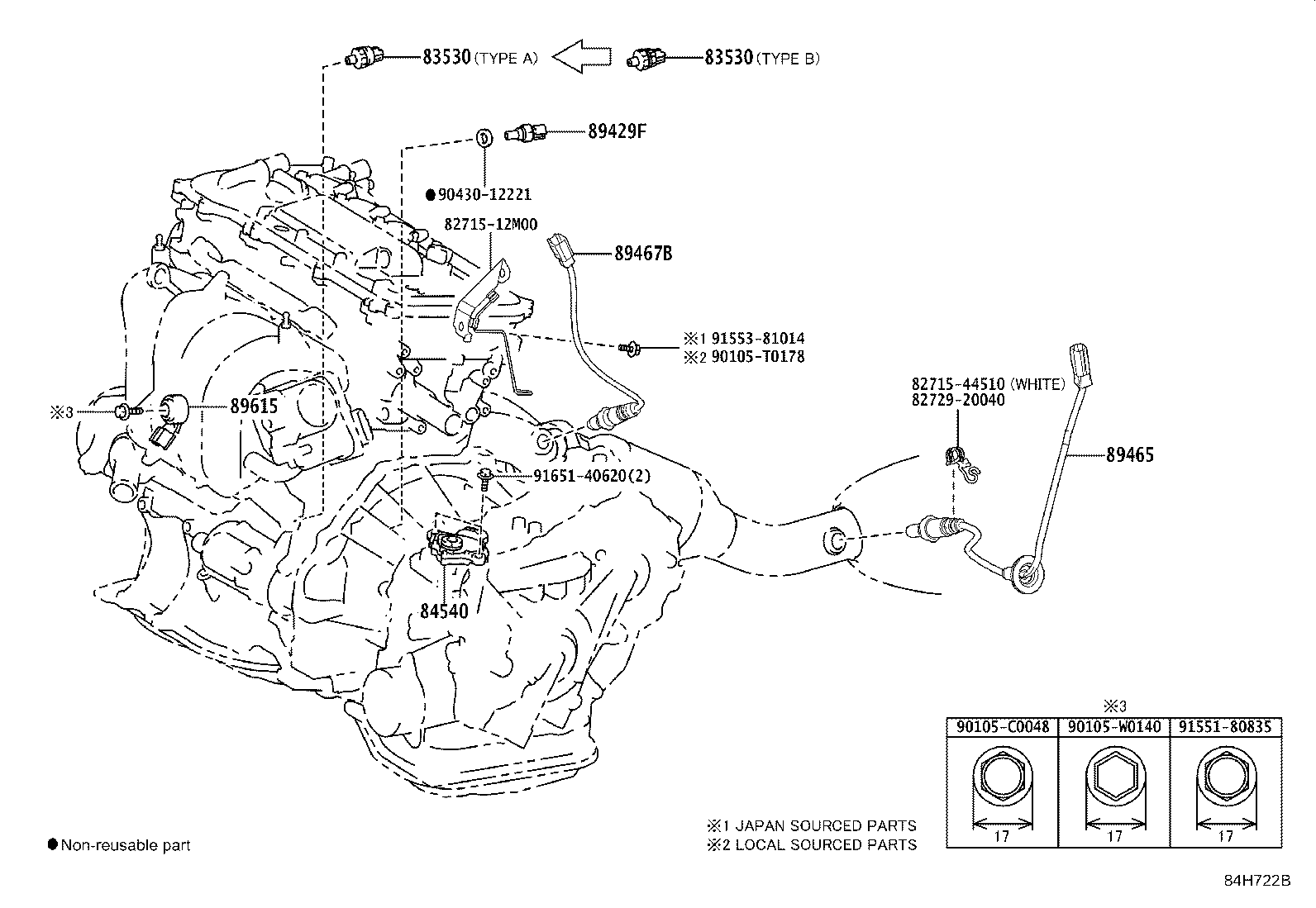

ILLUST NO. 1 OF 8(1611- )ZSP170
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZSP170 TYPE A |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZSP170 TYPE A |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NSP170,ZSP170 |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZSP170 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52850 |
ZSP170 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZSP170 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 82715-12M00 | ||||
| 82715-44510 | ||||
| 82729-20040 | ||||
| 90105-C0048 | ||||
| 90105-T0178 | ||||
| 90105-W0140 | ||||
| 90430-12221 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||

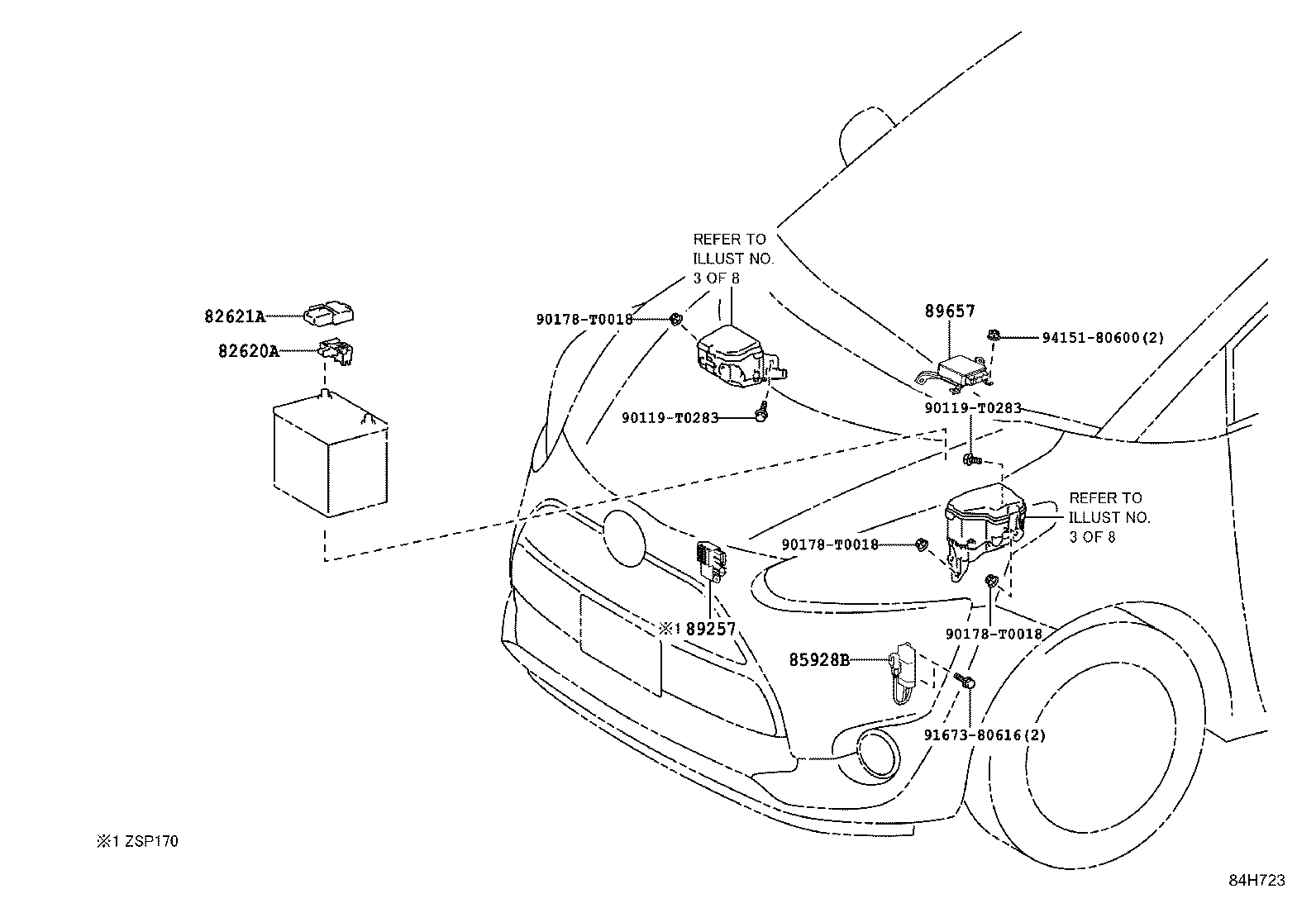

ILLUST NO. 2 OF 8(1611- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NSP170,ZSP170 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52140 |
NSP170,ZSP170 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
ZSP170 |
1 | ||
| 89257-K0020 |
ZSP170 |
1 | ||
| 89657 - COMPUTER, POWER STEERING | ||||
| 89650-52B10 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90119-T0283 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||

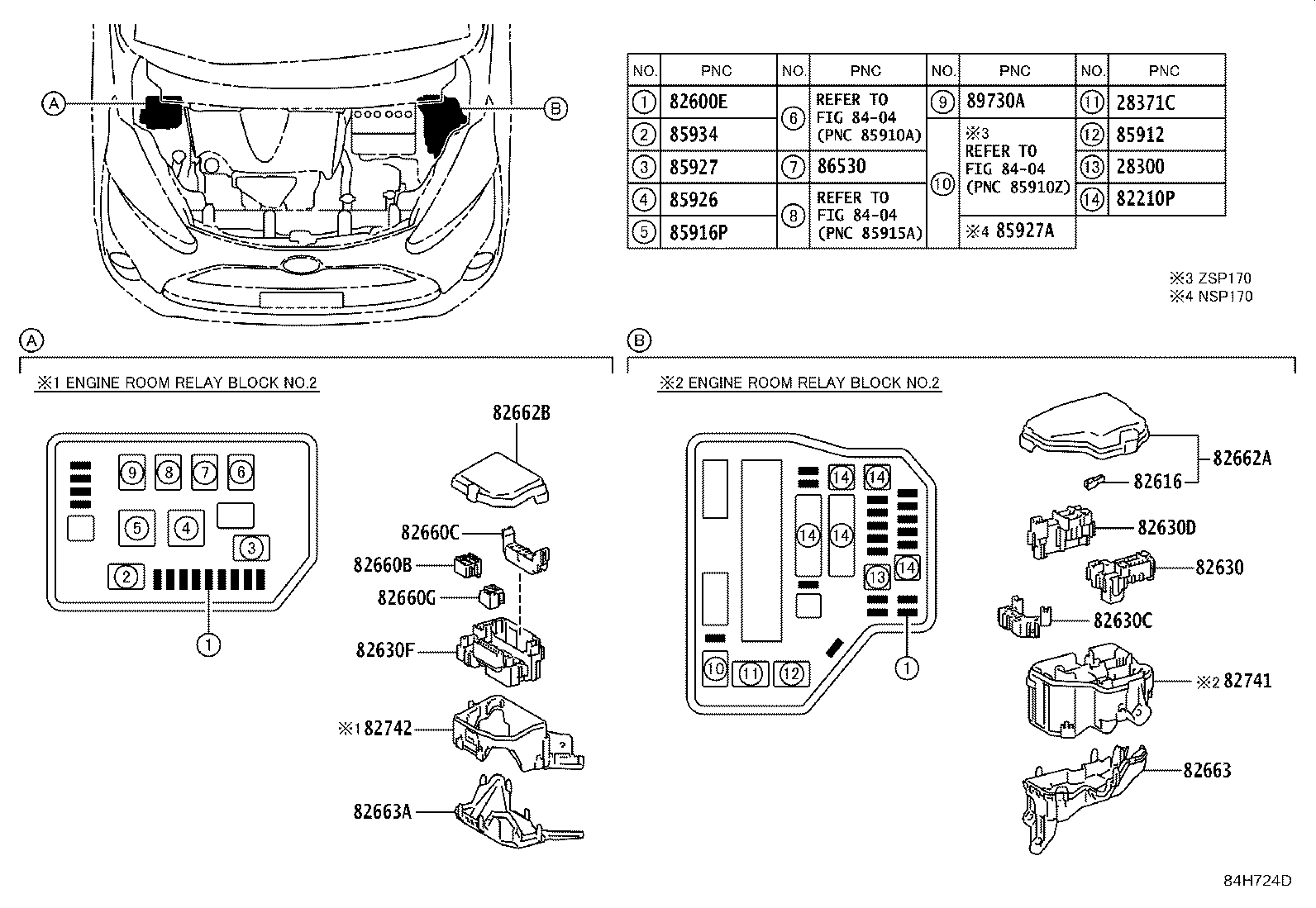

ILLUST NO. 3 OF 8(1611- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
2NRFE,2ZRFAE..NSP170,ZSP170 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2NRFE,2ZRFAE..NSP170,ZSP170 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
NSP170,ZSP170 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08300 |
NSP170,ZSP170 50A-30A-30A,FEMALE |
1 | ||
| 90982-08301 |
NSP170,ZSP170 50A-30A-40A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
NSP170,ZSP170 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
NSP170,ZSP170 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
NSP170,ZSP170 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP170,ZSP170 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NSP170,ZSP170 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NSP170,ZSP170 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NSP170,ZSP170 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-52010 |
NSP170,ZSP170 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-52020 |
NSP170,ZSP170 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52030 |
NSP170,ZSP170 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52040 |
NSP170,ZSP170 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H060 |
NSP170,ZSP170 |
1 | ||
| 82660-0H070 |
NSP170,ZSP170 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52120 |
NSP170,ZSP170 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NSP170,ZSP170 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52780 |
NSP170,ZSP170 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52770 |
NSP170,ZSP170 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52080 |
NSP170,ZSP170 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52090 |
NSP170,ZSP170 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12130 |
NSP170,ZSP170 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52080 |
NSP170,ZSP170 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
ZSP170 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NSP170,ZSP170 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
NSP170,ZSP170 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
NSP170,ZSP170 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
ZSP170..Q,U |
1 | ||
| Linked diagrams | ||||
| 8404 | ||||

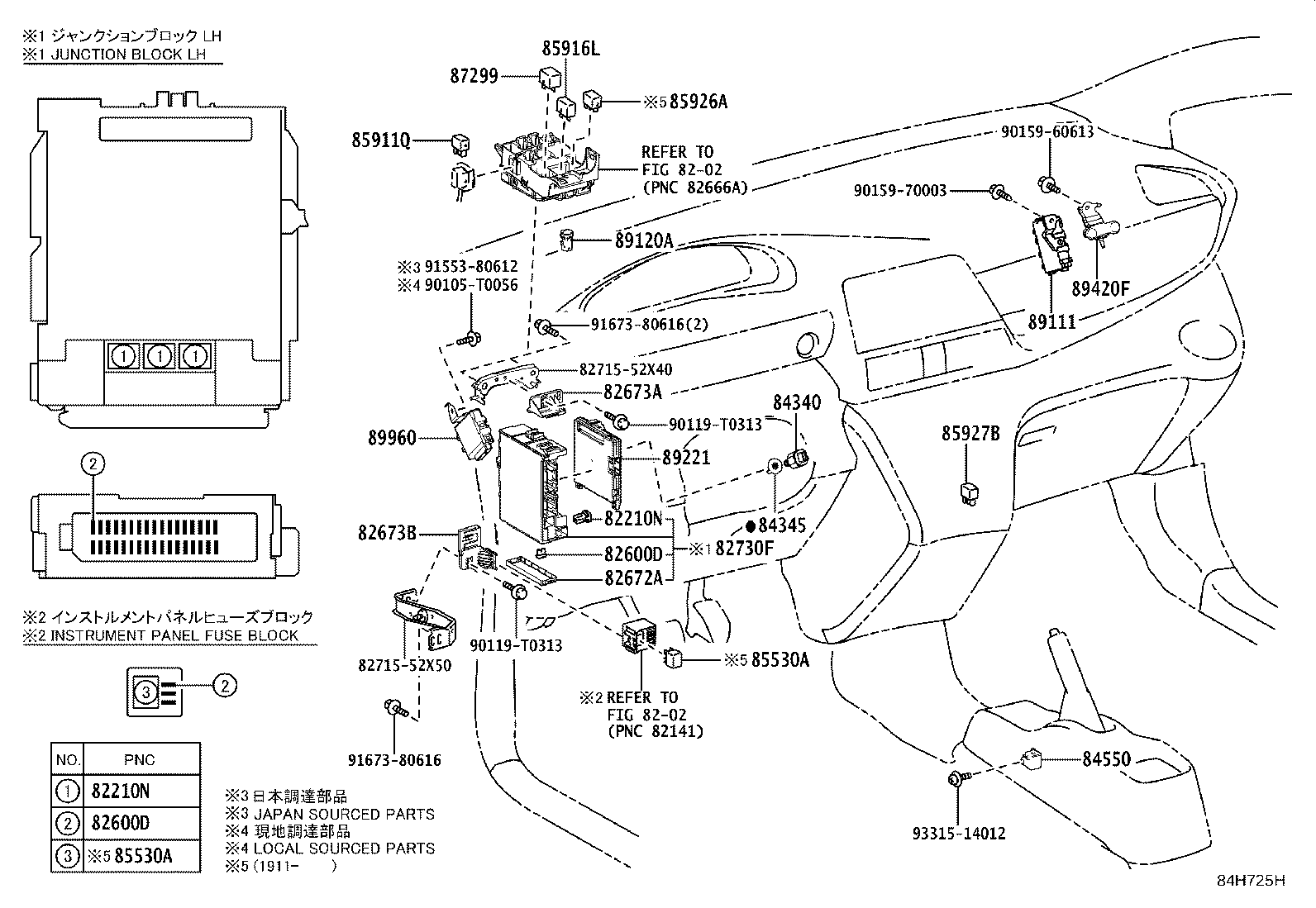

ILLUST NO. 4 OF 8(1611- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NSP170,ZSP170 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NSP170,ZSP170 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NSP170,ZSP170 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NSP170,ZSP170 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP170,ZSP170 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NSP170,ZSP170 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP170,ZSP170 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NSP170,ZSP170 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NSP170,ZSP170 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NSP170,ZSP170 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP170,ZSP170 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NSP170,ZSP170 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP170,ZSP170 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NSP170,ZSP170 10A,MINI FUSE,RED |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52120 |
NSP170,ZSP170 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52040 |
NSP170,ZSP170 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52140 |
NSP170,ZSP170 |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-52R00 |
NSP170,ZSP170 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49085 |
NSP170,ZSP170 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NSP170,ZSP170 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NSP170,ZSP170 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2001 |
NSP170,ZSP170 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZSP170 (J) |
1 | ||
| 90987-T2001 |
ZSP170 (L) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZSP170..Q,U |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-52730 |
NSP170,ZSP170..D,N |
1 | ||
| 89221-52740 |
ZSP170..Q,U |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-52690 |
ZSP170..Q,U |
1 | ||
| Common parts | ||||
| 82715-52X40 | ||||
| 82715-52X50 | ||||
| 90105-T0056 | ||||
| 90119-T0313 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 91553-80612 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

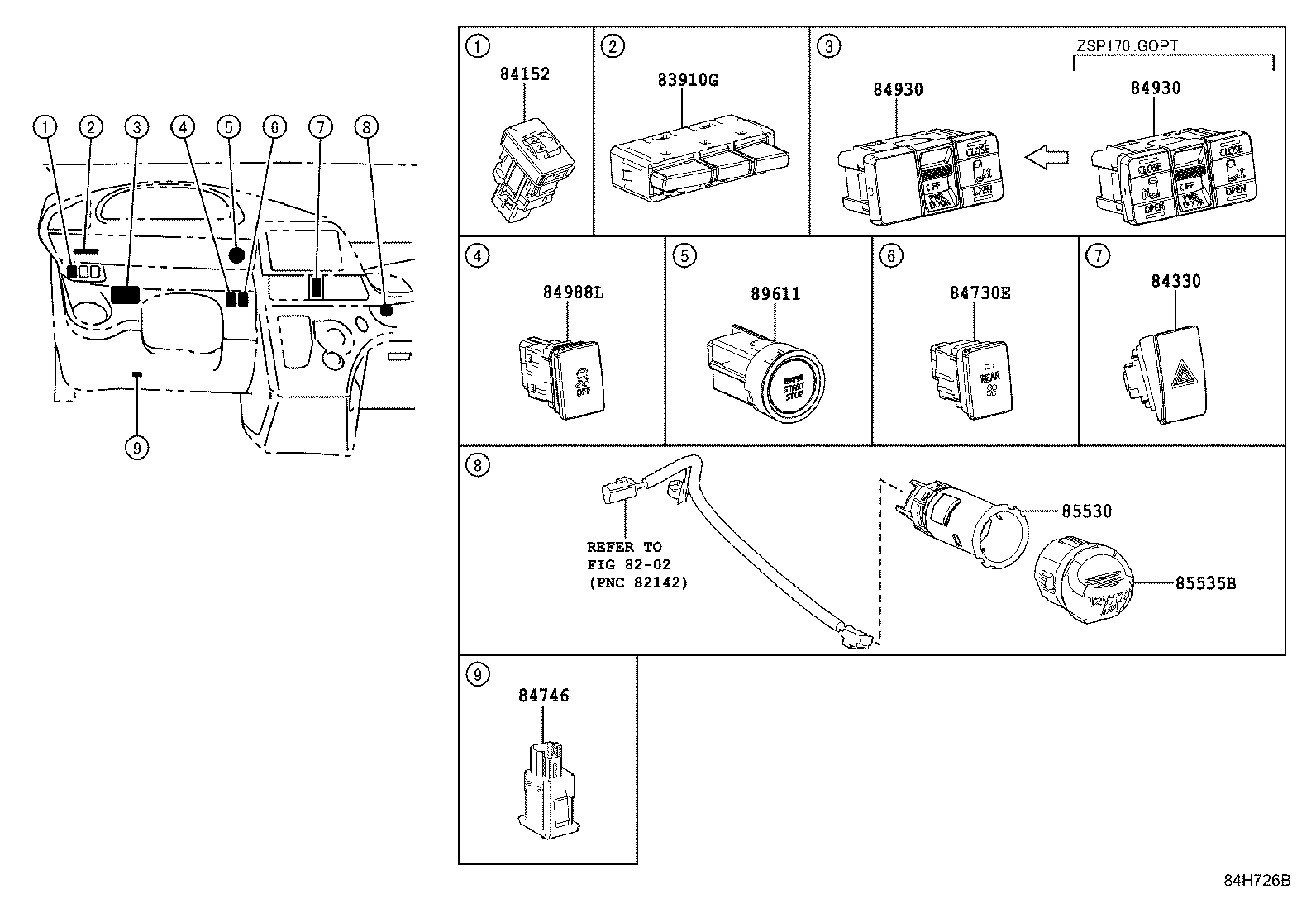

ILLUST NO. 5 OF 8(1611-1911)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 84975-0D120 |
NSP170,ZSP170..D,N |
1 | ||
| 84975-0D130 |
ZSP170..Q,U |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D100 |
NSP170,ZSP170..D,N |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0D110 |
NSP170,ZSP170 |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-50010 |
NSP170,ZSP170 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-52120 |
ZSP170..05S..Q |
1 | ||
| 84930-52120 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-52120 |
ZSP170..05S..Q |
1 | ||
| 84930-52120 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0D020 |
ZSP170 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-52010 |
NSP170,ZSP170 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52052 |
NSP170,ZSP170 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52034 |
NSP170,ZSP170 |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||

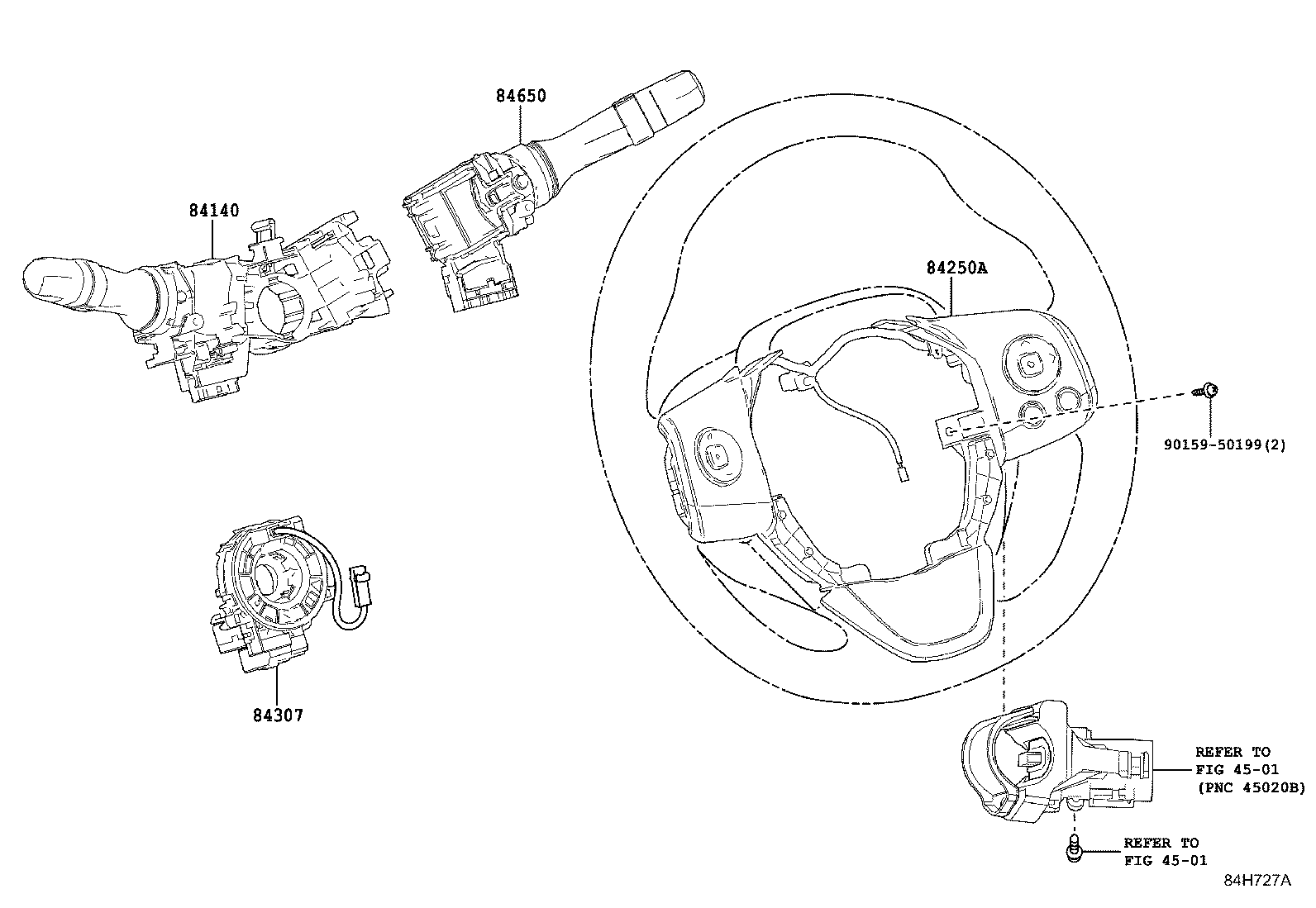

ILLUST NO. 6 OF 8(1611- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D870 |
ZSP170..Q,U |
1 | ||
| 84140-0D860 |
NSP170,ZSP170..D,N |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0D340C0 |
ZSP170..Q,U PIANOBLACK_22BK22,TRIM0#,2# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0D090 |
ZSP170 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0D440 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 4501 | ||||

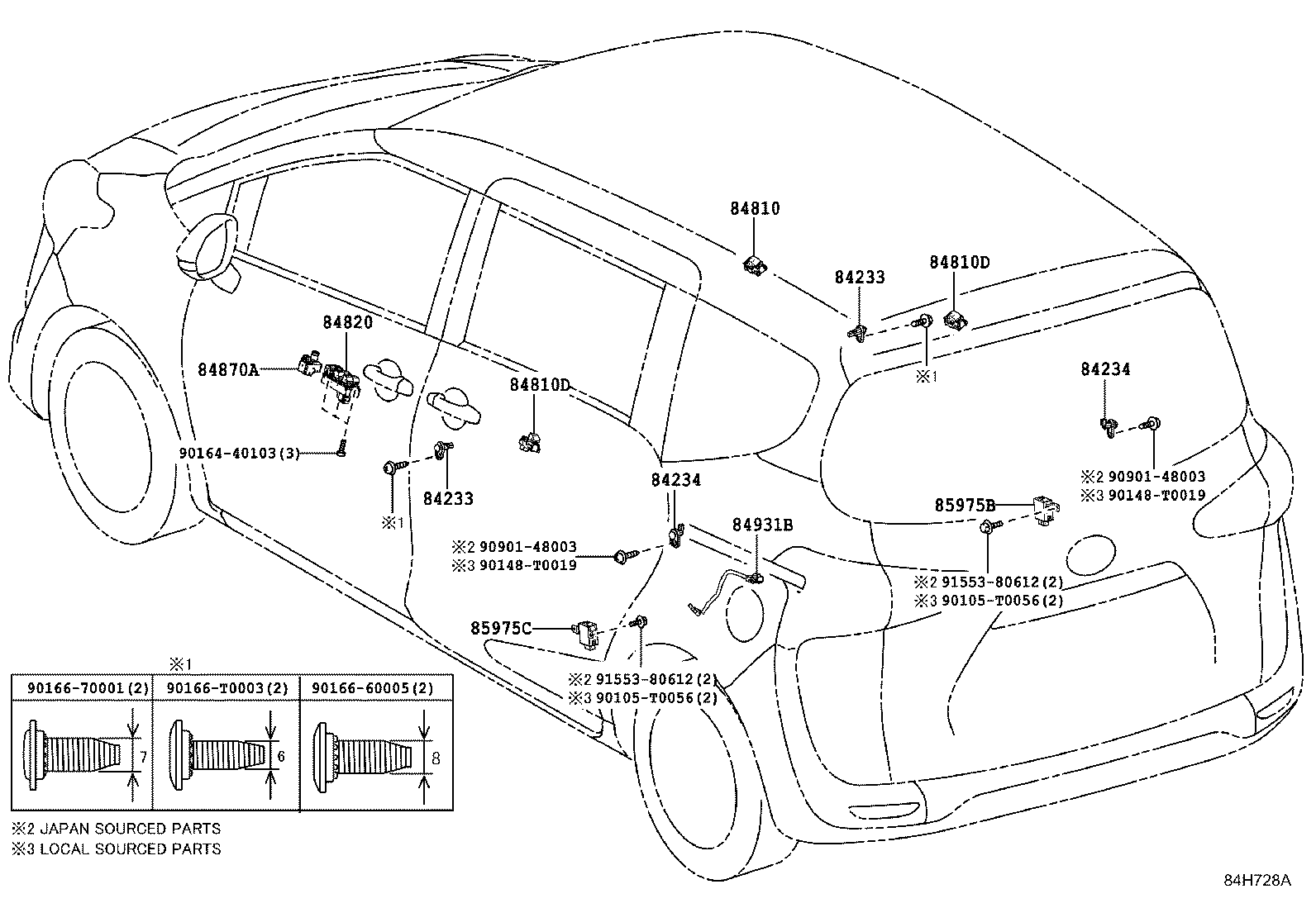

ILLUST NO. 7 OF 8(1611- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02040 |
NSP170,ZSP170 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02040 |
NSP170,ZSP170 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02080 |
NSP170,ZSP170 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02080 |
NSP170,ZSP170 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D070 |
NSP170,ZSP170 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D070 |
NSP170,ZSP170 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D070 |
NSP170,ZSP170 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D340 |
NSP170,ZSP170 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0D120 |
ZSP170 |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85975-52050 |
NSP170,ZSP170..D,N |
1 | ||
| 85975C - RELAY, SLIDE DOOR CLOSER, LH | ||||
| 85975-52050 |
ZSP170..05S..Q;NSP170,ZSP170..D,N |
1 | ||
| Common parts | ||||
| 90105-T0056 | ||||
| 90148-T0019 | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90166-T0003 | ||||
| 90901-48003 | ||||
| 91553-80612 | ||||

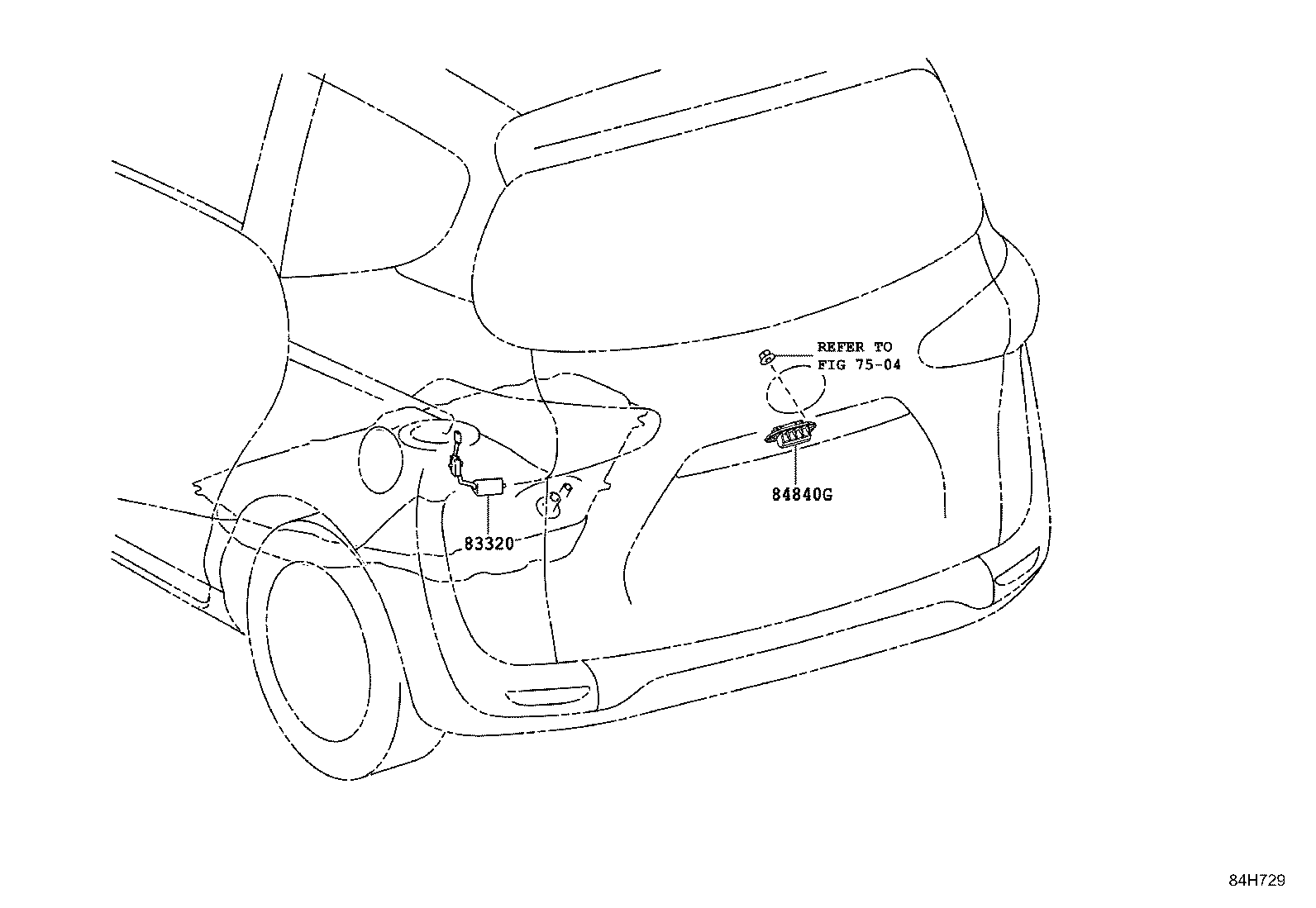

ILLUST NO. 8 OF 8(1611- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D200 |
NSP170,ZSP170 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47040 |
NSP170,ZSP170 |
1 | ||
| 84840-28050 |
NSP170,ZSP170 |
1 | ||
| Linked diagrams | ||||
| 7504 | ||||
