ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)

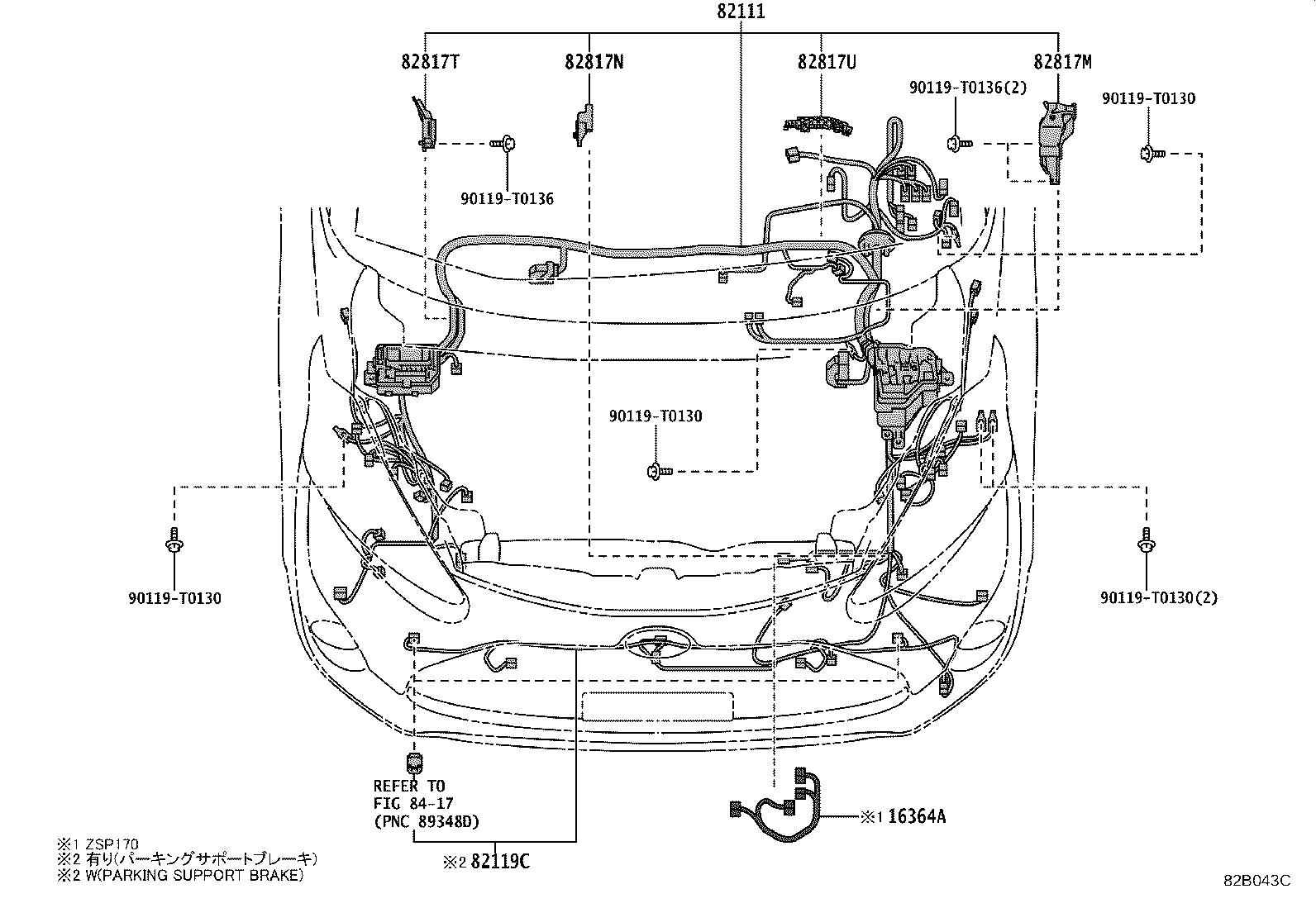

ILLUST NO. 1 OF 7(1611- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16364A - WIRE, COOLING FAN | ||||
| 16364-37020 |
2ZRFAE..ZSP170 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-0U210 |
ZSP170..Q,U |
1 | ||
| 82115-0U200 |
ZSP170..N |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-52A20 |
NSP170,ZSP170 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-0DB10 |
ZSP170 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-0DB10 |
ZSP170 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-52C00 |
NSP170,ZSP170 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-52B70 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90119-T0130 | ||||
| 90119-T0136 | ||||
| Linked diagrams | ||||
| 8417 | ||||

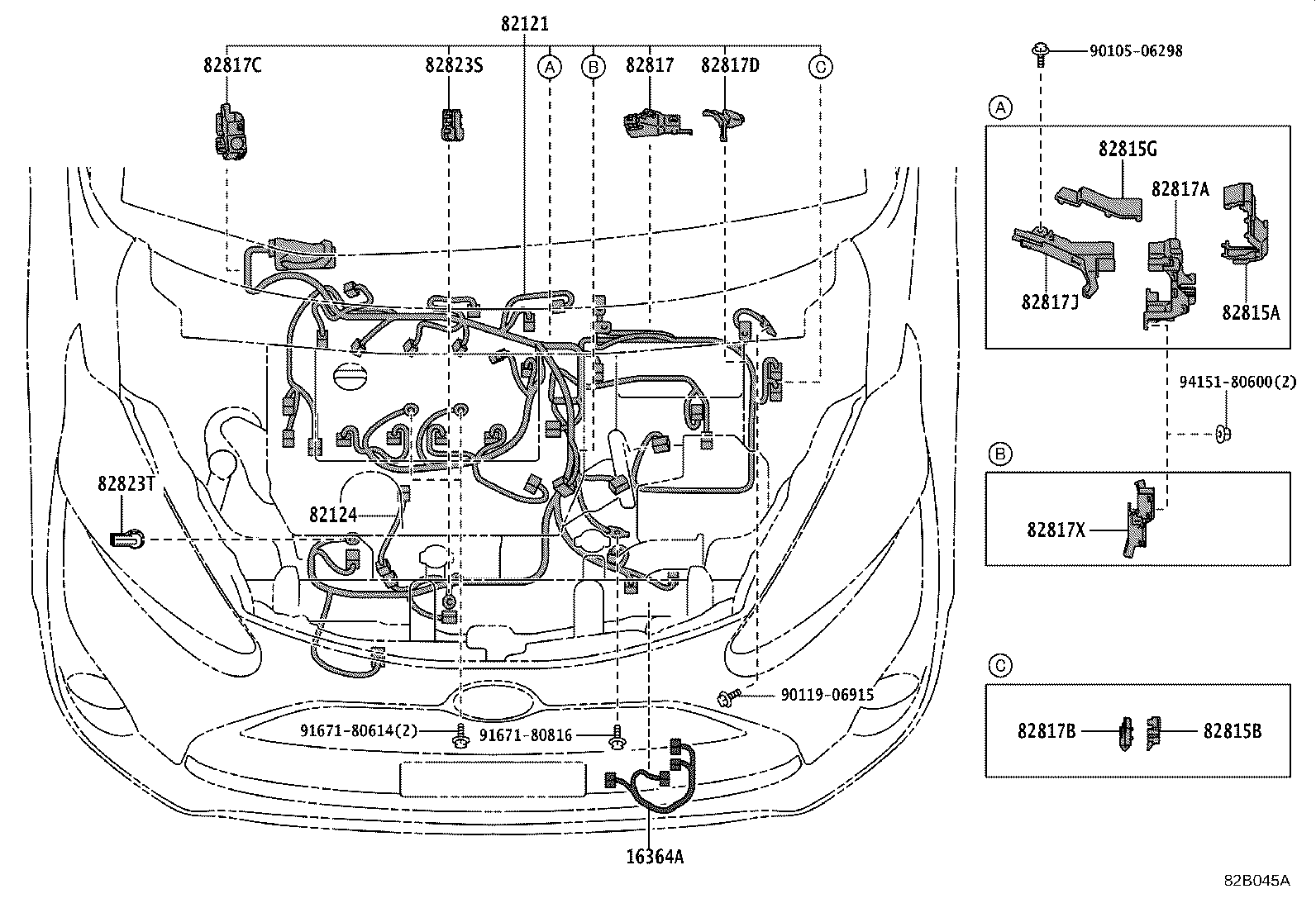

ILLUST NO. 2 OF 7(1611- )ZSP170
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16364A - WIRE, COOLING FAN | ||||
| 16364-37020 |
2ZRFAE..ZSP170 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-0DY00 |
ZSP170 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZSP170 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12560 |
ZSP170 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-52120 |
NSP170,ZSP170 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-02260 |
ZSP170 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52620 |
NSP170,ZSP170 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12L40 |
ZSP170 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-52850 |
NSP170,ZSP170 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52740 |
ZSP170 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-52860 |
NSP170,ZSP170 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-02770 |
ZSP170 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-12L50 |
ZSP170 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NSP170,ZSP170 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90119-06915 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||

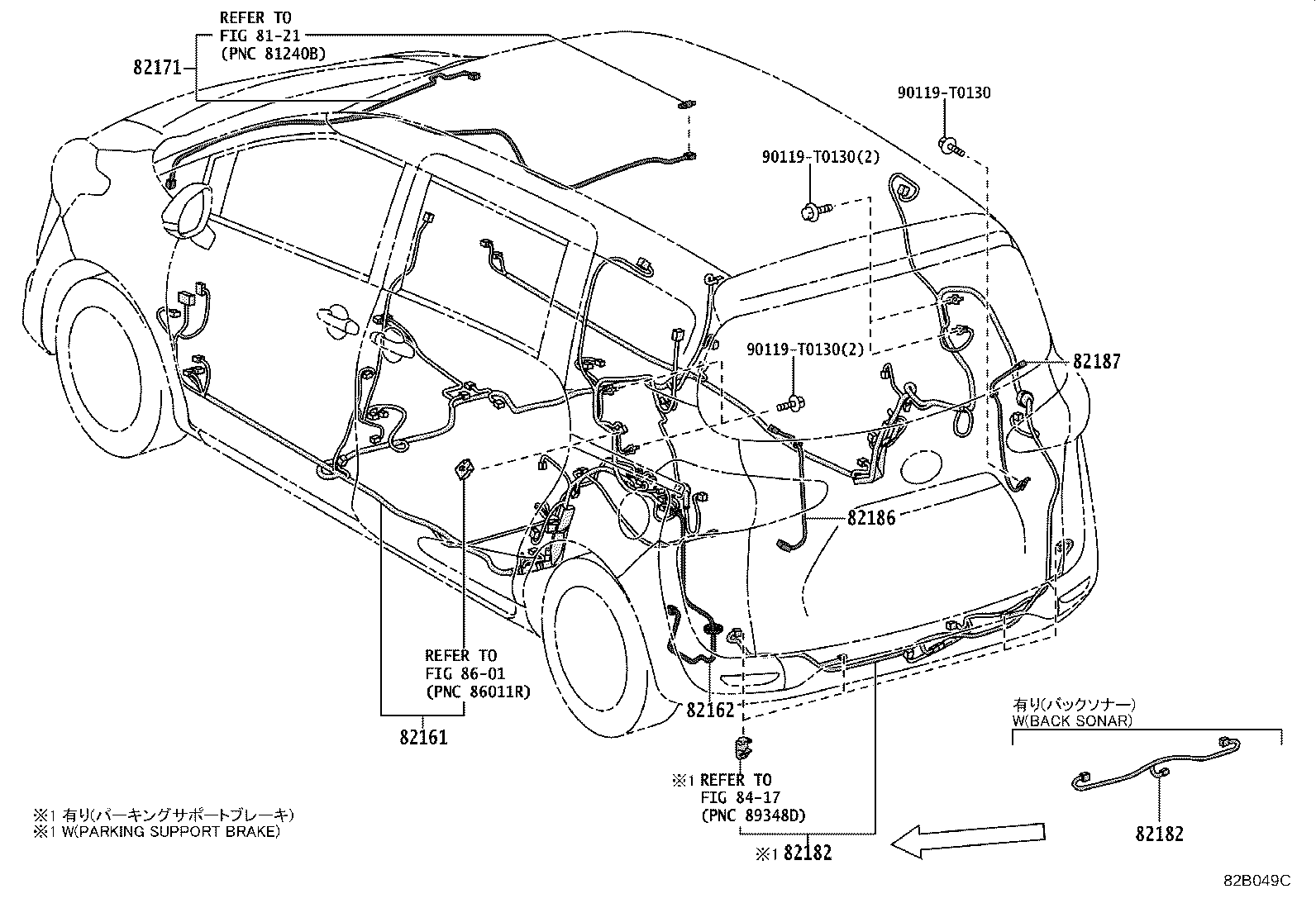

ILLUST NO. 5 OF 7(1611- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0U800 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82161-0U420 |
ZSP170..05S..N |
1 | ||
| 82161-0U421 |
ZSP170..05S..N |
1 | ||
| 82161-0U801 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82161-0U430 |
ZSP170..05S..Q |
1 | ||
| 82161-0U422 |
ZSP170..05S..N |
1 | ||
| 82161-0UM50 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82161-0UL90 |
ZSP170..05S..Q |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0D020 |
ZSP170..Q,U |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0D300 |
NSP170,ZSP170 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-0D170 |
NSP170,ZSP170 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-0D080 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90119-T0130 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
ILLUST NO. 3 OF 7(1611- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82146-0UQ80 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82145-0DS61 |
ZSP170..05S..N |
1 | ||
| 82145-F5J00 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82145-F5G50 |
ZSP170..05S..Q |
1 | ||
| 82145-0DS70 |
ZSP170..05S..Q |
1 | ||
| 82145-0DS60 |
ZSP170..05S..N |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-52570 |
NSP170,ZSP170 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0D100 |
NSP170,ZSP170 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52180 |
NSP170,ZSP170 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-52230 |
NSP170,ZSP170 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-52240 |
NSP170,ZSP170 |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-52020 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90119-T0130 | ||||
| 90159-T0037 | ||||
ILLUST NO. 4 OF 7(1611- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0U350 |
ZSP170..Q,U |
1 | ||
| 82151-0DK20 |
ZSP170..N |
1 | ||
| 82151-0U351 |
ZSP170..Q,U |
1 | ||
| 82151-0DK21 |
ZSP170..N |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0DK70 |
ZSP170..N |
1 | ||
| 82152-0U430 |
ZSP170..Q,U |
1 | ||
| 82152-0DK71 |
ZSP170..N |
1 | ||
| 82152-0U431 |
ZSP170..Q,U |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0D500 |
NSP170,ZSP170..D,N |
1 | ||
| 82153-0DA90 |
ZSP170..Q,U |
1 | ||
| 82153-0DA90 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-0D040 |
ZSP170..Q,U |
1 | ||
| 82157-0D030 |
NSP170,ZSP170..D,N |
1 | ||
| 82157-0D040 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0D370 |
ZSP170..05S..Q;NSP170,ZSP170..D,N |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82158-0D030 |
ZSP170..05S..Q;NSP170,ZSP170..D,N |
1 | ||
| 82156 - WIRE, SLIDE DOOR | ||||
| 82156-0D010 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82156-0D010 |
ZSP170..Q,U |
1 | ||
| 82156 - WIRE, SLIDE DOOR | ||||
| 82156-0D010 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 82156-0D010 |
ZSP170..Q,U |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0D730 |
NSP170,ZSP170 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0D780 |
NSP170,ZSP170..D,N |
1 | ||
| 82185-0D791 |
ZSP170..Q,U |
1 | ||
| 82185-0D781 |
NSP170,ZSP170..D,N |
1 | ||
| 82185-0D790 |
ZSP170..Q,U |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-52J50 |
NSP170,ZSP170 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-52J60 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 46431-58010 | ||||
| 90119-T0130 | ||||
| 90119-T0403 | ||||
| 90467-09206 | ||||
ILLUST NO. 6 OF 7(1611- )ZSP170
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-28L90 | ||||
| 82715-52L30 | ||||
| 82715-52L50 | ||||
| 82715-52Z00 | ||||
| 82715-5C060 | ||||
| 82715-5C390 | ||||
| 82715-6A460 | ||||
| 90119-T0248 | ||||
| 91621-B0816 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||

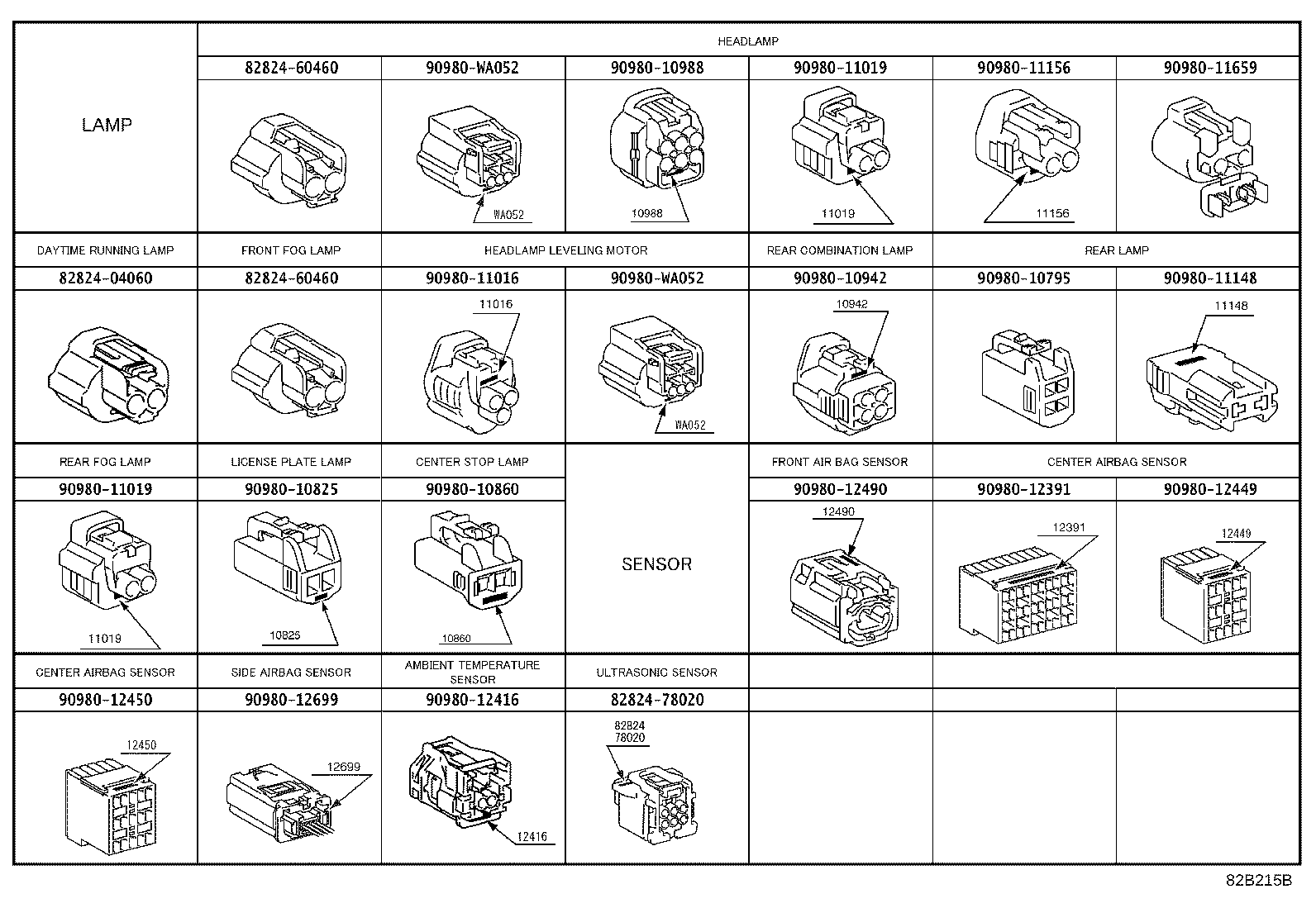

ILLUST NO. 7 OF 7(1611- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-04060 | ||||
| 82824-60460 | ||||
| 82824-78020 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-10988 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11659 | ||||
| 90980-12391 | ||||
| 90980-12416 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-WA052 | ||||

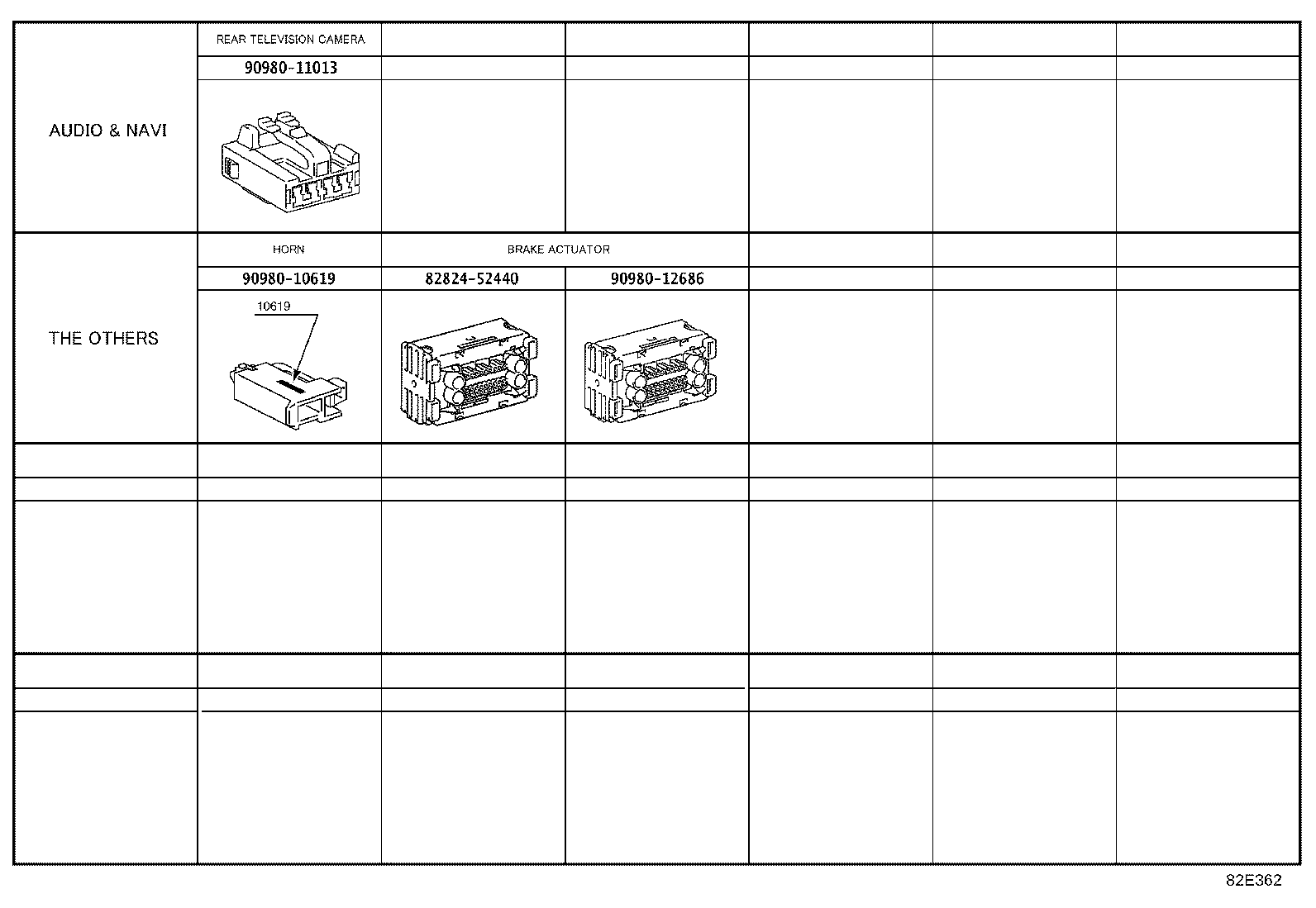

ILLUST NO. 7 OF 7(1611- )
CONNENCTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52440 | ||||
| 90980-10619 | ||||
| 90980-11013 | ||||
| 90980-12686 | ||||
