ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

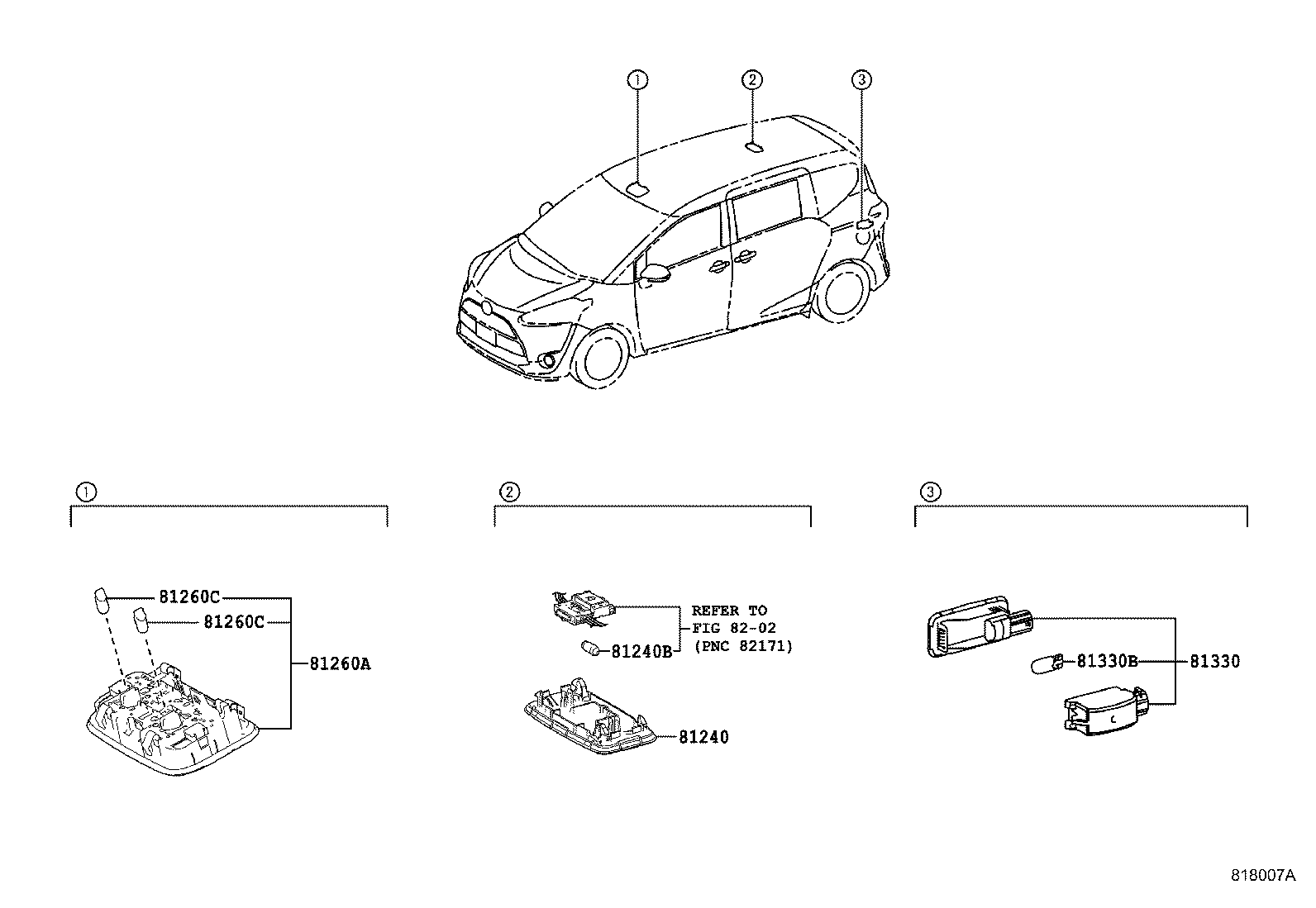

diagram 81240 81240B 81260A 81260C 81260C 81330 81330B 8202
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-42020B0

ZSP170

LT.GRAY,TRIM0#,2#

 1
81240-35020B0

ZSP170

LT.GRAY,TRIM0#,2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NSP170,ZSP170

12V 8W

 1
81260A - LAMP ASSY, MAP
81260-68011B2

ZSP170

LT.GRAY,TRIM0#,2#

 1
81260-68010B2

ZSP170

LT.GRAY,TRIM0#,2#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

NSP170,ZSP170

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NSP170,ZSP170

12V 8W

 2
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210

NSP170,ZSP170

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

NSP170,ZSP170

12V 5W

 1
Linked diagrams
8202
