ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

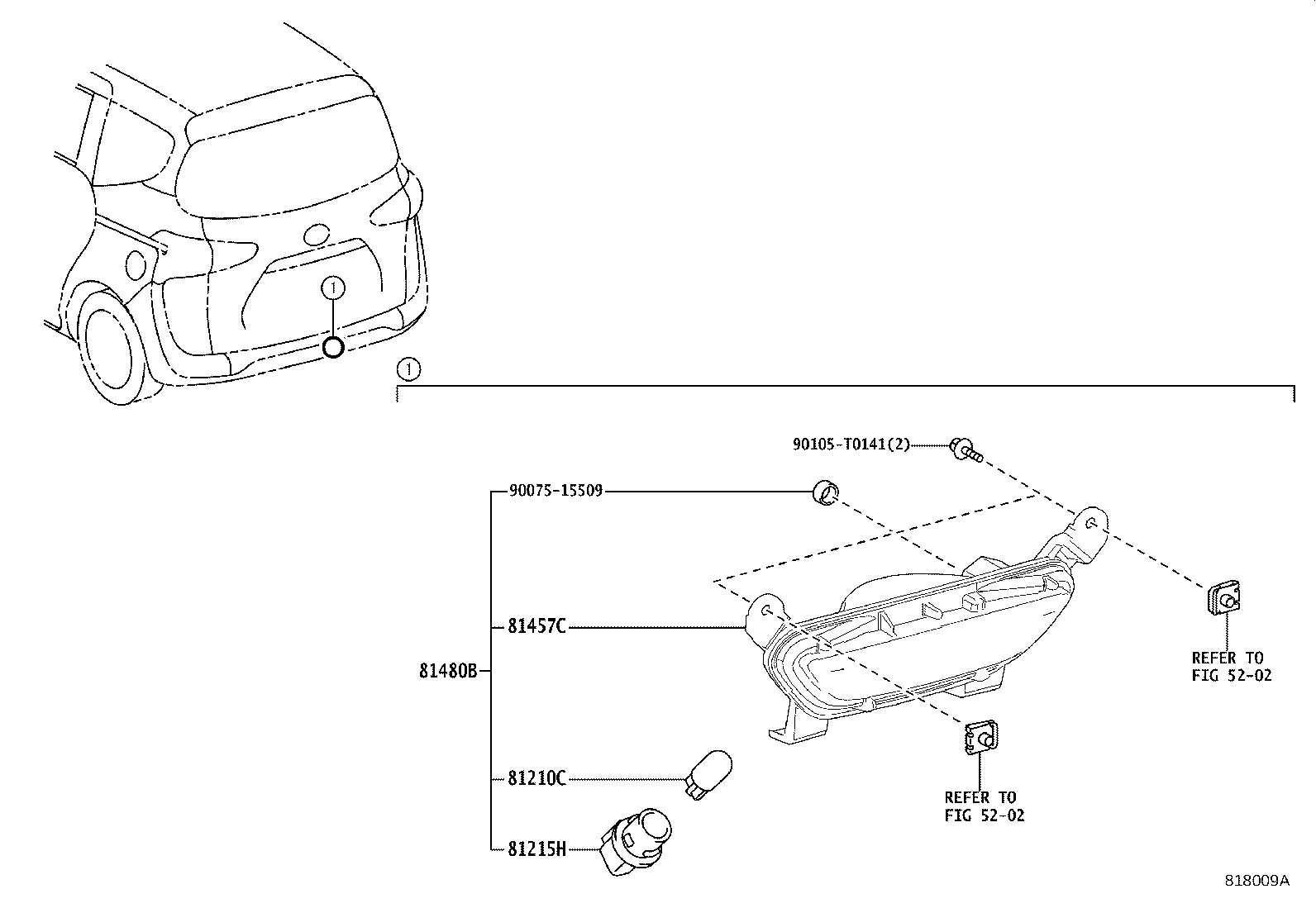

diagram 5202 5202 81210C 81215H 81457C 81480B 9007515509 90105T0141
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-13043

NSP170,ZSP170

12V 21W

 1
81215H - SOCKET, REAR FOG LAMP
90075-99080

NSP170,ZSP170

 1
81457C - LENS & BODY, REAR FOG LAMP
81457-0D100

NSP170,ZSP170

 1
81480B - LAMP ASSY, REAR FOG
81480-0D100

NSP170,ZSP170

 1
Common parts
90075-15509
90105-T0141
Linked diagrams
5202
