ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
(1611- )D,N,Q,W

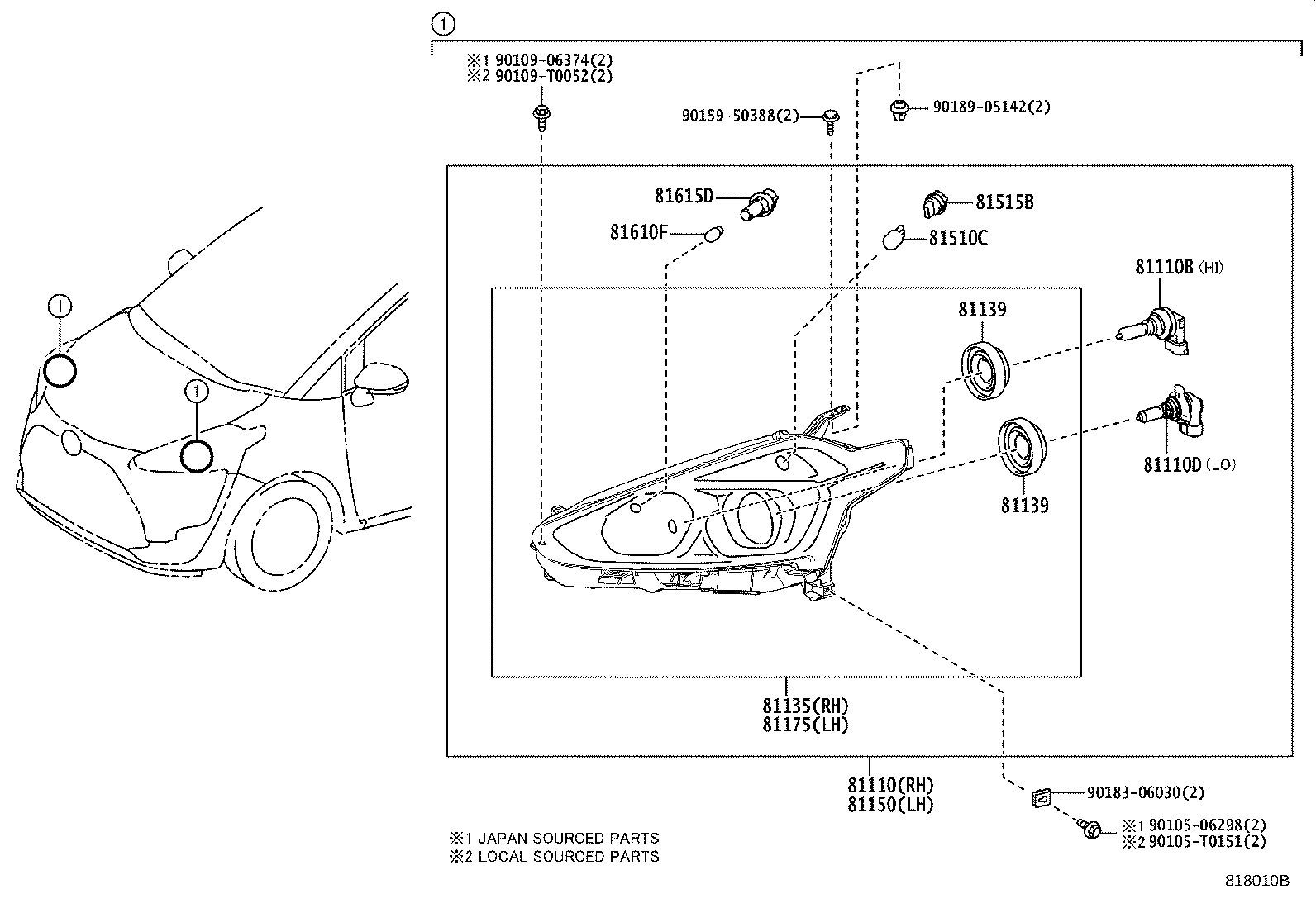

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0DE80 |
NSP170,ZSP170..D,N |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NSP170,ZSP170..D,N 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13085 |
NSP170,ZSP170..D,N 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DE80 |
NSP170,ZSP170..D,N |
1 | ||
| 81130-52L10 |
ZSP170..Q,U |
1 | ||
| 81130-52L11 |
ZSP170..Q,U |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
NSP170,ZSP170..D,N |
4 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
NSP170,ZSP170..D,N |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0DE80 |
NSP170,ZSP170..D,N |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DE80 |
NSP170,ZSP170..D,N |
1 | ||
| 81170-52L11 |
ZSP170..Q,U |
1 | ||
| 81170-52L10 |
ZSP170..Q,U |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ZSP170..Q,U 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NSP170,ZSP170..D,N 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NSP170,ZSP170..D,N |
2 | ||
| 81515-42050 |
ZSP170..Q,U |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
NSP170,ZSP170..D,N 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NSP170,ZSP170..D,N |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90105-T0151 | ||||
| 90109-06374 | ||||
| 90109-T0052 | ||||
| 90159-50388 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
(1611-1911)Q,U

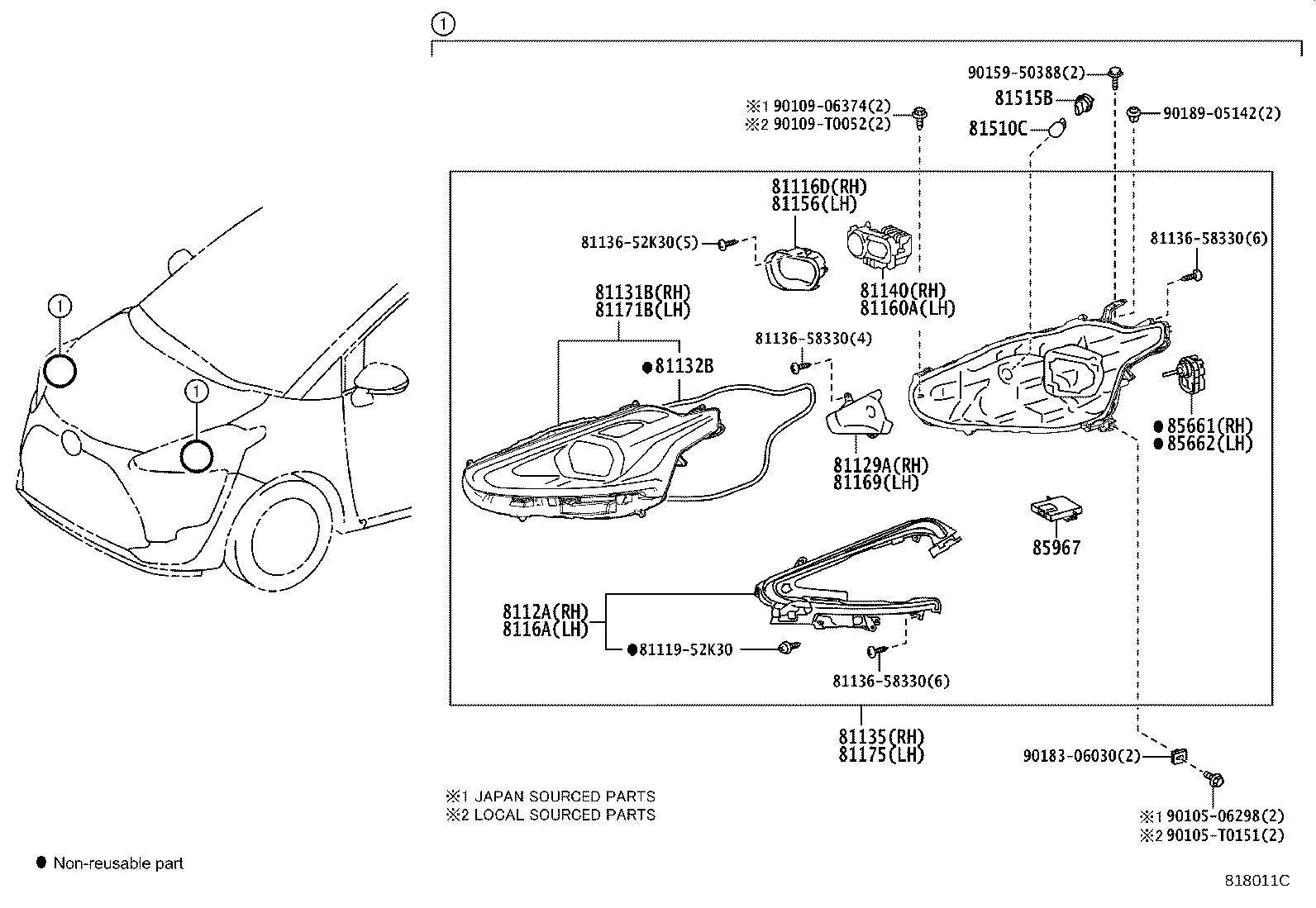

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81116D - RIM, HEAD LAMP, RH | ||||
| 81116-52K30 |
ZSP170..Q,U |
1 | ||
| 81129A - REFLECTOR, HEADLAMP, RH | ||||
| 81129-52K30 |
ZSP170..Q,U |
1 | ||
| 8112A - UNIT, HEADLAMP CLEARANCE LED, NO.1 RH | ||||
| 8112A-52K30 |
ZSP170..Q,U |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-52K30 |
ZSP170..Q,U |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
ZSP170..Q,U |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0DE80 |
NSP170,ZSP170..D,N |
1 | ||
| 81130-52L10 |
ZSP170..Q,U |
1 | ||
| 81130-52L11 |
ZSP170..Q,U |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-52L10 |
ZSP170..Q,U |
1 | ||
| 81156 - RIM, HEADLAMP, LH | ||||
| 81156-52K30 |
ZSP170..Q,U |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-52L10 |
ZSP170..Q,U |
1 | ||
| 81169 - REFLECTOR, HEADLAMP, LH | ||||
| 81169-52K30 |
ZSP170..Q,U |
1 | ||
| 8116A - UNIT, HEADLAMP CLEARANCE LED, NO.1 LH | ||||
| 8116A-52K30 |
ZSP170..Q,U |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-52K30 |
ZSP170..Q,U |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0DE80 |
NSP170,ZSP170..D,N |
1 | ||
| 81170-52L11 |
ZSP170..Q,U |
1 | ||
| 81170-52L10 |
ZSP170..Q,U |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ZSP170..Q,U 12V 21W,AMBER |
2 | ||
| 90981-15021 |
NSP170,ZSP170..D,N 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
NSP170,ZSP170..D,N |
2 | ||
| 81515-42050 |
ZSP170..Q,U |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-68011 |
ZSP170..Q,U |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-68011 |
ZSP170..Q,U |
1 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-52070 |
ZSP170..Q,U |
2 | ||
| Common parts | ||||
| 81119-52K30 | ||||
| 81136-52K30 | ||||
| 81136-58330 | ||||
| 90105-06298 | ||||
| 90105-T0151 | ||||
| 90109-06374 | ||||
| 90109-T0052 | ||||
| 90159-50388 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
