ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1611- )

Click highlighted areas on diagram

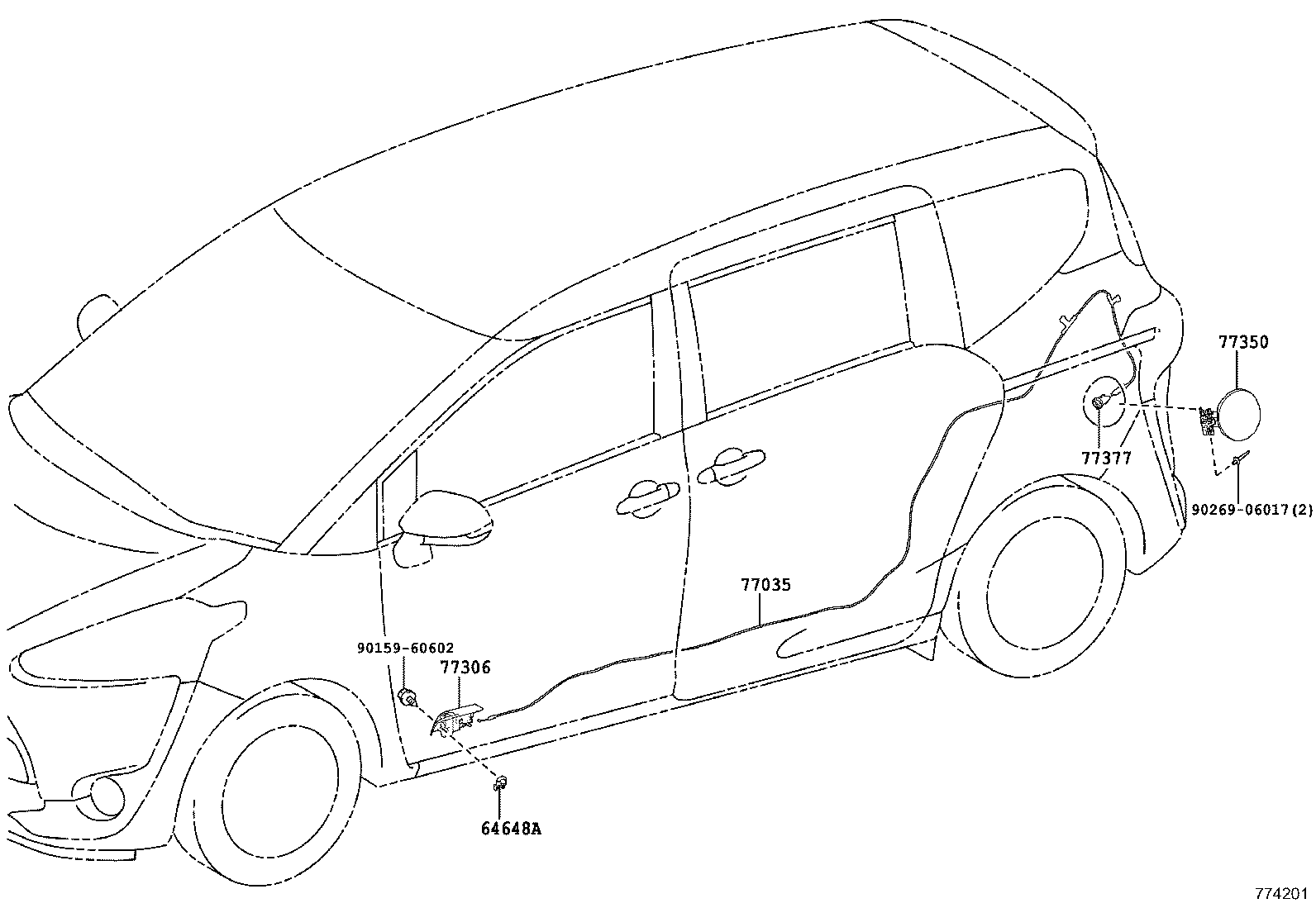

FUEL LID OPENER

diagram 64648A 77035 77306 77350 77377 9015960602 9026906017
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12020

NSP170,ZSP170

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0D470

NSP170,ZSP170

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0D090

NSP170,ZSP170

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0D230

NSP170,ZSP170

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0D100

NSP170,ZSP170

 1
Common parts
90159-60602
90269-06017

ILLUST NO. 2 OF 3(1611- )ZSP170

Click highlighted areas on diagram

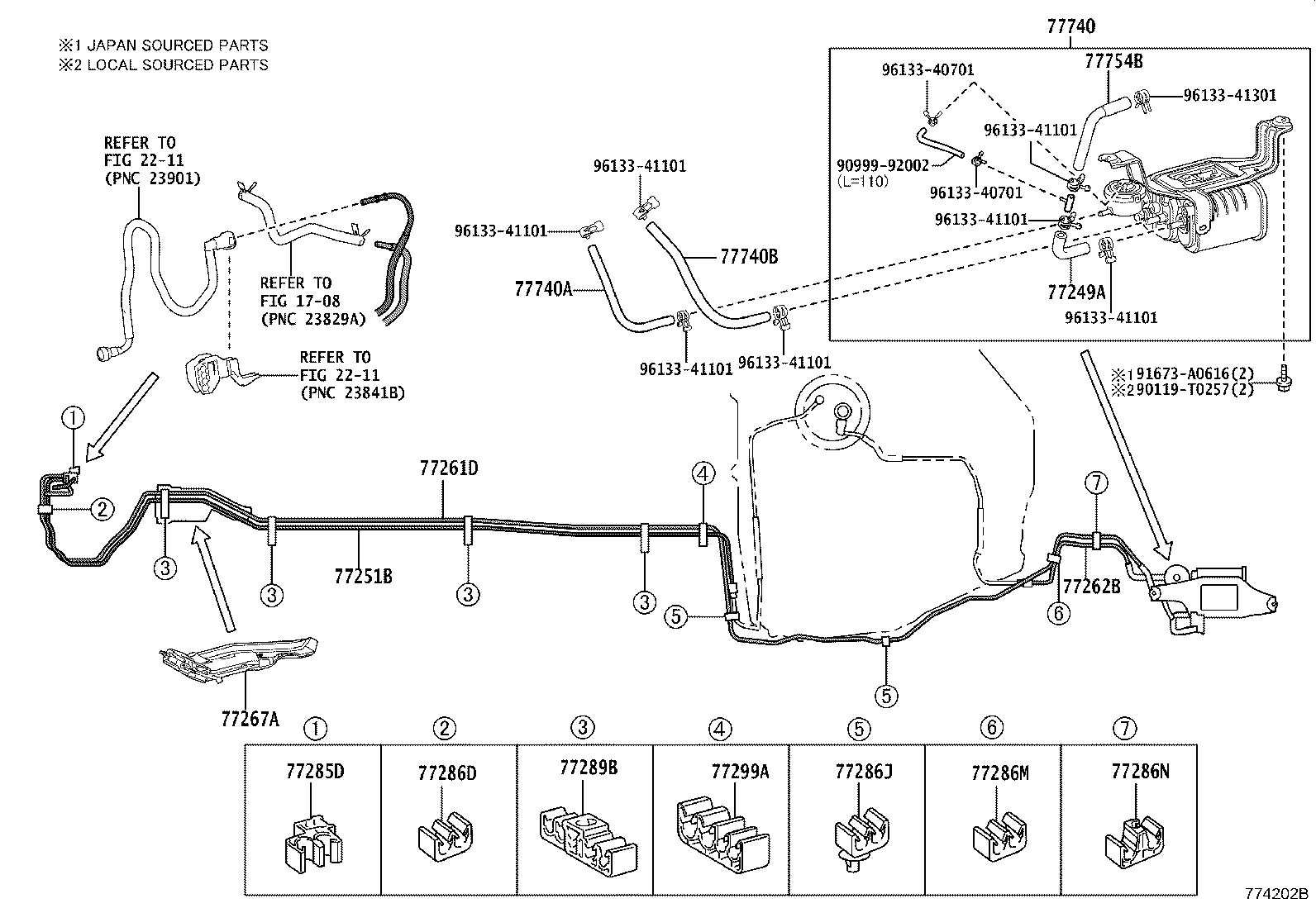

FUEL TUBE

diagram 1708 2211 2211 77249A 77251B 77261D 77262B 77267A 77285D 77286D 77286J 77286M 77286N 77289B 77299A 77740 77740A 77740B 77754B 90119T0257 9099992002 91673A0616 9613340701 9613340701 9613341101 9613341101 9613341101 9613341101 9613341101 9613341101 9613341101 9613341301
Part # Description Qty Price
77249A - HOSE, FUEL EMISSION
77249-52120

NSP170,ZSP170

 1
77251B - TUBE, FUEL MAIN
77251-0D550

ZSP170

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-0D490

ZSP170

 1
77262B - TUBE, FUEL TANK TO CANISTER, NO.2
77262-0D080

NSP170,ZSP170

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-52050

ZSP170

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52060

ZSP170

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-52100

ZSP170

 1
77286J - CLAMP, FUEL TUBE, NO.4
77285-52110

NSP170,ZSP170

 2
77286M - CLAMP, FUEL TUBE, NO.6
77285-52150

ZSP170

 1
77286N - CLAMP, FUEL TUBE, NO.7
77286-52220

ZSP170

 1
77289B - CLAMP, FUEL TUBE, NO.3
77298-52070

ZSP170

 4
77299A - CLAMP, FUEL TUBE, NO.5
77411-48030

NSP170,ZSP170

 1
77740 - CANISTER ASSY, CHARCOAL
77740-52140

NSP170,ZSP170

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95326-06018

NSP170,ZSP170

L=180

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
95326-07022

NSP170,ZSP170

L=220

 1
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-52090

NSP170,ZSP170

 1
Common parts
90119-T0257
90999-92002
91673-A0616
96133-40701
96133-41101
96133-41301
Linked diagrams
1708
2211

ILLUST NO. 1 OF 3(1611- )ZSP170

Click highlighted areas on diagram

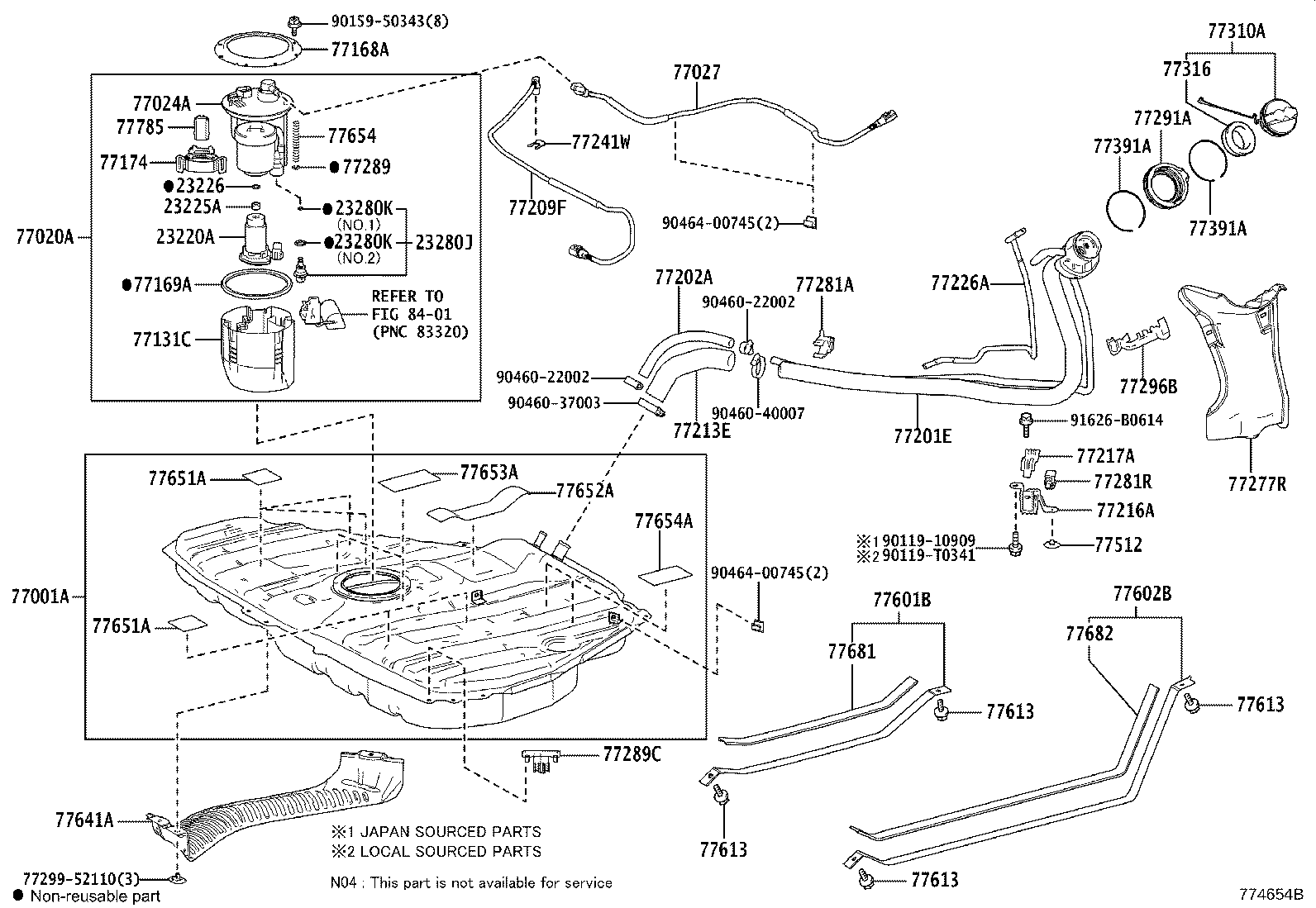

FUEL TANK

diagram 23220A 23225A 23226 23280J 23280K 23280K 77001A 77020A 77024A 77027 77131C 77168A 77169A 77174 77201E 77202A 77209F 77213E 77216A 77217A 77226A 77241W 77277R 77281A 77281R 77289 77289C 77291A 77296B 7729952110 77310A 77316 77391A 77391A 77512 77601B 77602B 77613 77613 77613 77613 77641A 77651A 77651A 77652A 77653A 77654 77654A 77681 77682 77785 8401 9011910909 90119T0341 9015950343 9046022002 9046022002 9046037003 9046040007 9046400745 9046400745 91626B0614
Part # Description Qty Price
23220A - PUMP ASSY, FUEL W/FILTER
23220-0T290

2ZRFAE..ZSP170

 1
23225A - SPACER, FUEL PUMP
23225-0V030

2NRFE,2ZRFAE..NSP170,ZSP170

 1
23226 - RING, O(FOR FUEL PUMP)
90301-08020

2NRFE,2ZRFAE..NSP170,ZSP170

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010

2NRFE,2ZRFAE..NSP170,ZSP170

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

2NRFE,2ZRFAE..NSP170,ZSP170

NO.1:REFER ILLUST.

 1
90301-15024

2NRFE,2ZRFAE..NSP170,ZSP170

NO.2:REFER ILLUST.

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

2NRFE,2ZRFAE..NSP170,ZSP170

NO.1:REFER ILLUST.

 1
90301-15024

2NRFE,2ZRFAE..NSP170,ZSP170

NO.2:REFER ILLUST.

 1
77001A - TANK SUB-ASSY, FUEL
77001-0D350

NSP170,ZSP170

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0D330

ZSP170

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-0D180

NSP170,ZSP170

 1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-52170

NSP170,ZSP170

 1
77131C - SUB-TANK, FUEL, NO.1
77131-52120

NSP170,ZSP170

 1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-02020

NSP170,ZSP170

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52010

NSP170,ZSP170

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-28020

NSP170,ZSP170

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-0D340

NSP170,ZSP170

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95313-13024

NSP170,ZSP170

L=240

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-52160

ZSP170

 1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-0D190

NSP170,ZSP170

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-0D220

NSP170,ZSP170

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-0D190

NSP170,ZSP170

 1
77226A - TUBE, FUEL TANK BREATHER, NO.6
77226-0D090

NSP170,ZSP170

 1
77241W - CLIP, TUBE JOINT
77241-33011

NSP170,ZSP170

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-0D080

NSP170,ZSP170

 1
77281A - CLAMP, FUEL FILLER PIPE
77281-52070

NSP170,ZSP170

 1
77281R - CLAMP, FUEL FILLER PIPE, NO.2
77281-30110

NSP170,ZSP170

 1
77289 - HOLDER, FUEL TANK PIPE SETTING
77289-52090

NSP170,ZSP170

 1
77289C - CLAMP, FUEL TUBE, NO.4
77289-52070

NSP170,ZSP170

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0D150

NSP170,ZSP170

 1
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-52090

NSP170,ZSP170

 1
77310A - CAP ASSY, FUEL TANK
77300-12020

NSP170,ZSP170

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

NSP170,ZSP170

 1
77391A - RING, FUEL INLET BOX
77391-12020

NSP170,ZSP170

 2
77391A - RING, FUEL INLET BOX
77391-12020

NSP170,ZSP170

 2
77512 - BRACKET, FUEL TANK, REAR
77512-0D020

NSP170,ZSP170

 1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-0D020

NSP170,ZSP170

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-0D020

NSP170,ZSP170

 1
77613 - BOLT, FUEL TANK BAND SET
90119-10971

NSP170,ZSP170

(J)

 4
90119-T0454

NSP170,ZSP170

(L)

 4
77613 - BOLT, FUEL TANK BAND SET
90119-10971

NSP170,ZSP170

(J)

 4
90119-T0454

NSP170,ZSP170

(L)

 4
77613 - BOLT, FUEL TANK BAND SET
90119-10971

NSP170,ZSP170

(J)

 4
90119-T0454

NSP170,ZSP170

(L)

 4
77613 - BOLT, FUEL TANK BAND SET
90119-10971

NSP170,ZSP170

(J)

 4
90119-T0454

NSP170,ZSP170

(L)

 4
77641A - PROTECTOR, FUEL TANK, NO.1
77641-0D130

NSP170,ZSP170

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-12070

NSP170,ZSP170

 5
77651A - CUSHION, FUEL TANK, NO.1
77651-12070

NSP170,ZSP170

 5
77652A - CUSHION, FUEL TANK, NO.2
77652-52060

NSP170,ZSP170

 1
77653A - CUSHION, FUEL TANK, NO.3
77653-60060

NSP170,ZSP170

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-52020

NSP170,ZSP170

 1
77654A - CUSHION, FUEL TANK, NO.4
77652-12100

NSP170,ZSP170

 2
77681 - SEAT, FUEL TANK BAND, RH
77681-0D030

NSP170,ZSP170

 1
77682 - SEAT, FUEL TANK BAND, LH
77682-0D010

NSP170,ZSP170

 1
77785 - HARNESS, FUEL PUMP
77785-48040

NSP170,ZSP170

 1
Common parts
77299-52110
90119-10909
90119-T0341
90159-50343
90460-22002
90460-37003
90460-40007
90464-00745
91626-B0614
Linked diagrams
8401
