ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )

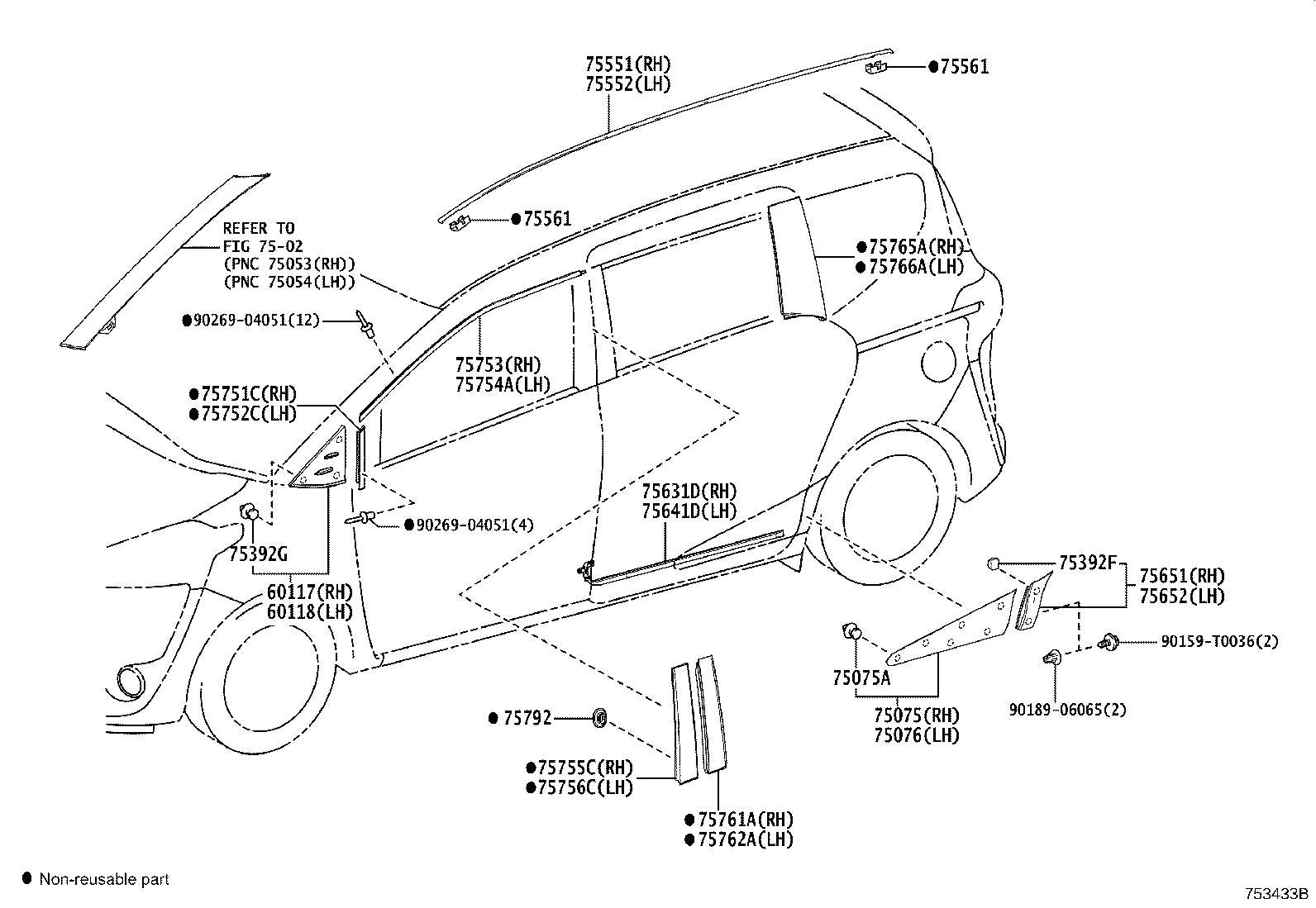

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-0D220 |
NSP170,ZSP170 |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-0D220 |
NSP170,ZSP170 |
1 | ||
| 75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH | ||||
| 75075-0D040 |
NSP170,ZSP170 |
1 | ||
| 75075A - CLIP(FOR REAR DOOR OUTSIDE MOULDING) | ||||
| 90467-10162 |
NSP170,ZSP170 |
12 | ||
| 75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH | ||||
| 75076-0D040 |
NSP170,ZSP170 |
1 | ||
| 75392F - RETAINER, OUTSIDE MOULDING | ||||
| 76932-28030 |
NSP170,ZSP170 |
4 | ||
| 75392G - RETAINER, OUTSIDE MOULDING, NO.1 | ||||
| 52562-58020 |
NSP170,ZSP170 |
6 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-0D370 |
NSP170,ZSP170 NO PAINT REQ. |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-0D330 |
NSP170,ZSP170 NO PAINT REQ. |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
NSP170,ZSP170 |
4 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
NSP170,ZSP170 |
4 | ||
| 75631D - MOULDING, SIDE PANEL, LOWER NO.1 RH | ||||
| 75631-0D020 |
NSP170,ZSP170 |
1 | ||
| 75641D - MOULDING, SIDE PANEL, LOWER NO.1 LH | ||||
| 75641-0D060 |
NSP170,ZSP170 |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75605-0D040 |
NSP170,ZSP170 |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75606-0D040 |
NSP170,ZSP170 |
1 | ||
| 75751C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH | ||||
| 75751-0D070 |
NSP170,ZSP170 |
1 | ||
| 75752C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH | ||||
| 75752-0D070 |
NSP170,ZSP170 |
1 | ||
| 75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH | ||||
| 75753-0D020 |
NSP170,ZSP170 |
1 | ||
| 75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH | ||||
| 75754-0D020 |
NSP170,ZSP170 |
1 | ||
| 75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-0D110 |
NSP170,ZSP170 |
1 | ||
| 75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-0D110 |
NSP170,ZSP170 |
1 | ||
| 75761A - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH | ||||
| 75761-0D090 |
NSP170,ZSP170 NO PAINT REQ. |
1 | ||
| 75762A - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH | ||||
| 75762-0D090 |
NSP170,ZSP170 NO PAINT REQ. |
1 | ||
| 75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH | ||||
| 75765-0D020 |
NSP170,ZSP170 |
1 | ||
| 75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH | ||||
| 75766-0D020 |
NSP170,ZSP170 |
1 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-0D020 |
NSP170,ZSP170 (L) |
2 | ||
| 75792-0D020 |
NSP170,ZSP170 |
2 | ||
| 75792-47010 |
NSP170,ZSP170 (J) |
2 | ||
| Common parts | ||||
| 90159-T0036 | ||||
| 90189-06065 | ||||
| 90269-04051 | ||||
| Linked diagrams | ||||
| 7502 | ||||
