ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

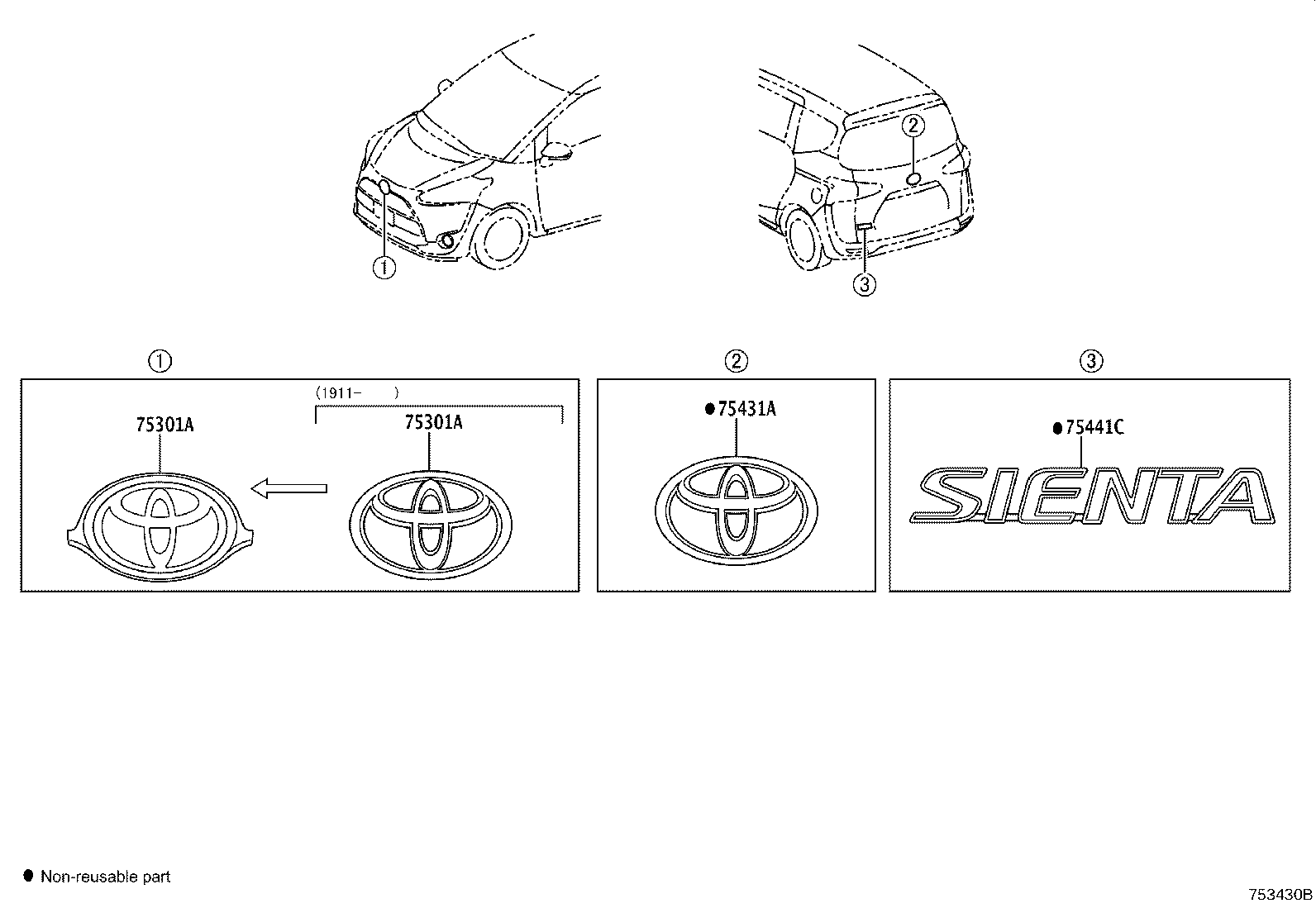

diagram 75301A 75301A 75431A 75441C
Part # Description Qty Price
75301A - EMBLEM SUB-ASSY, FRONT BUMPER
75301-0D170

NSP170,ZSP170

 1
75301A - EMBLEM SUB-ASSY, FRONT BUMPER
75301-0D170

NSP170,ZSP170

 1
75431A - EMBLEM, BACK DOOR, NO.1
90975-02086

NSP170,ZSP170

 1
75441C - PLATE, BACK DOOR NAME
75441-0D070

NSP170,ZSP170

SIENTA

 1
