ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

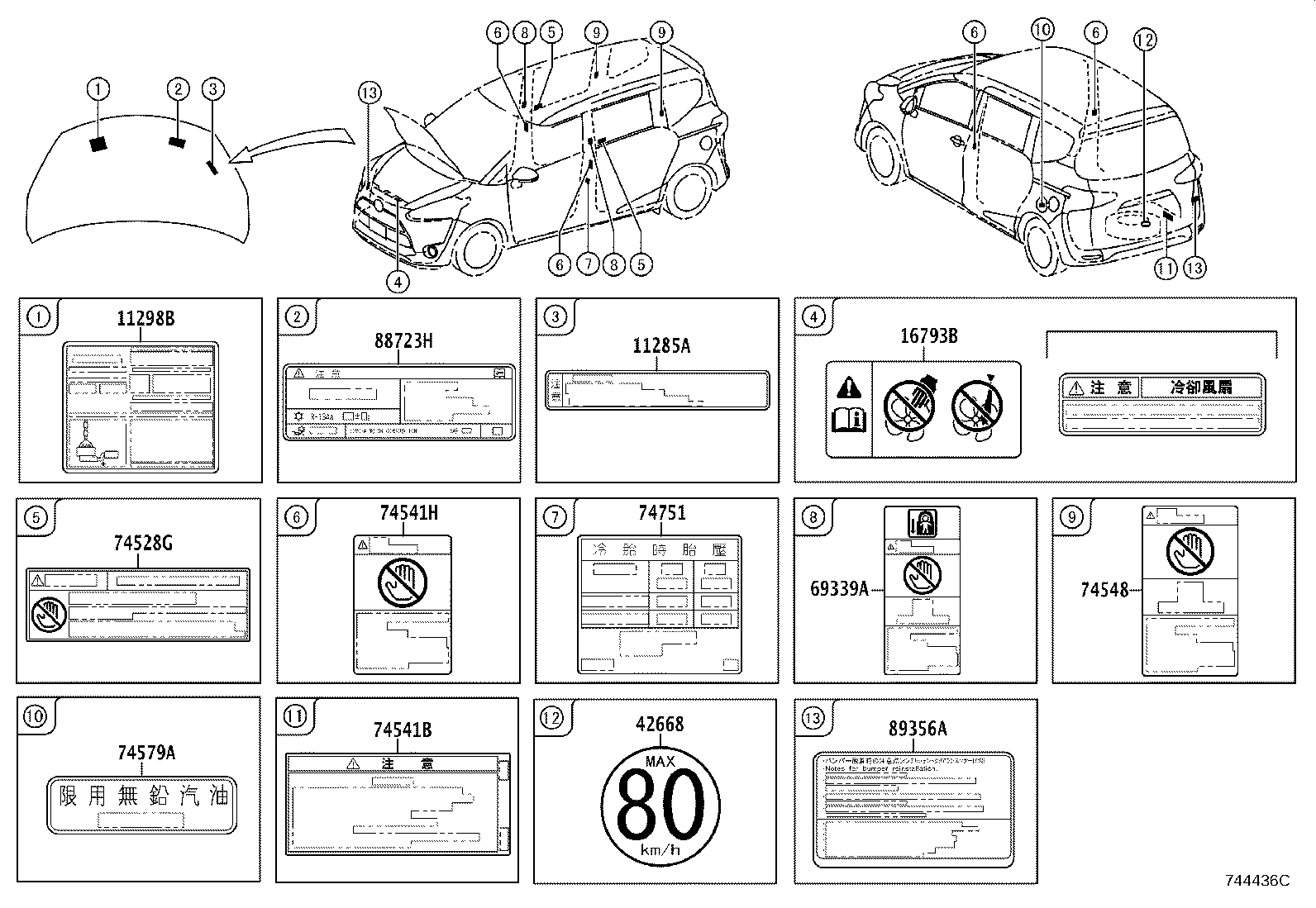

Click highlighted areas on diagram

diagram 11285A 11298B 16793B 42668 69339A 74528G 74541B 74541H 74548 74579A 74751 88723H 89356A
Part # Description Qty Price
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-0T270

2ZRFAE..ZSP170

 1
11298-0T380

2ZRFAE..ZSP170

 1
11298-0T510

2ZRFAE..ZSP170

 1
11298-0T580

2ZRFAE..ZSP170

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-11010

2NRFE,2ZRFAE..NSP170,ZSP170

 1
42668 - LABEL, COMPACT SPARE TIRE CAUTION
42668-20020

NSP170,ZSP170

 1
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-0D050

NSP170,ZSP170

 2
74528G - LABEL, POWER SLIDE DOOR CAUTION
74528-0D020

NSP170,ZSP170

 2
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-42050

NSP170,ZSP170

 1
74541H - PLATE, BODY CAUTION
74541-0D040

NSP170,ZSP170

 4
74548 - PLATE, BODY CAUTION
74541-0D030

NSP170,ZSP170

 2
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-0B010

NSP170,ZSP170

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0DA10

NSP170,ZSP170..D,N

 1
42661-0D770

ZSP170..Q,U

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-0D100

ZSP170

 1
