ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

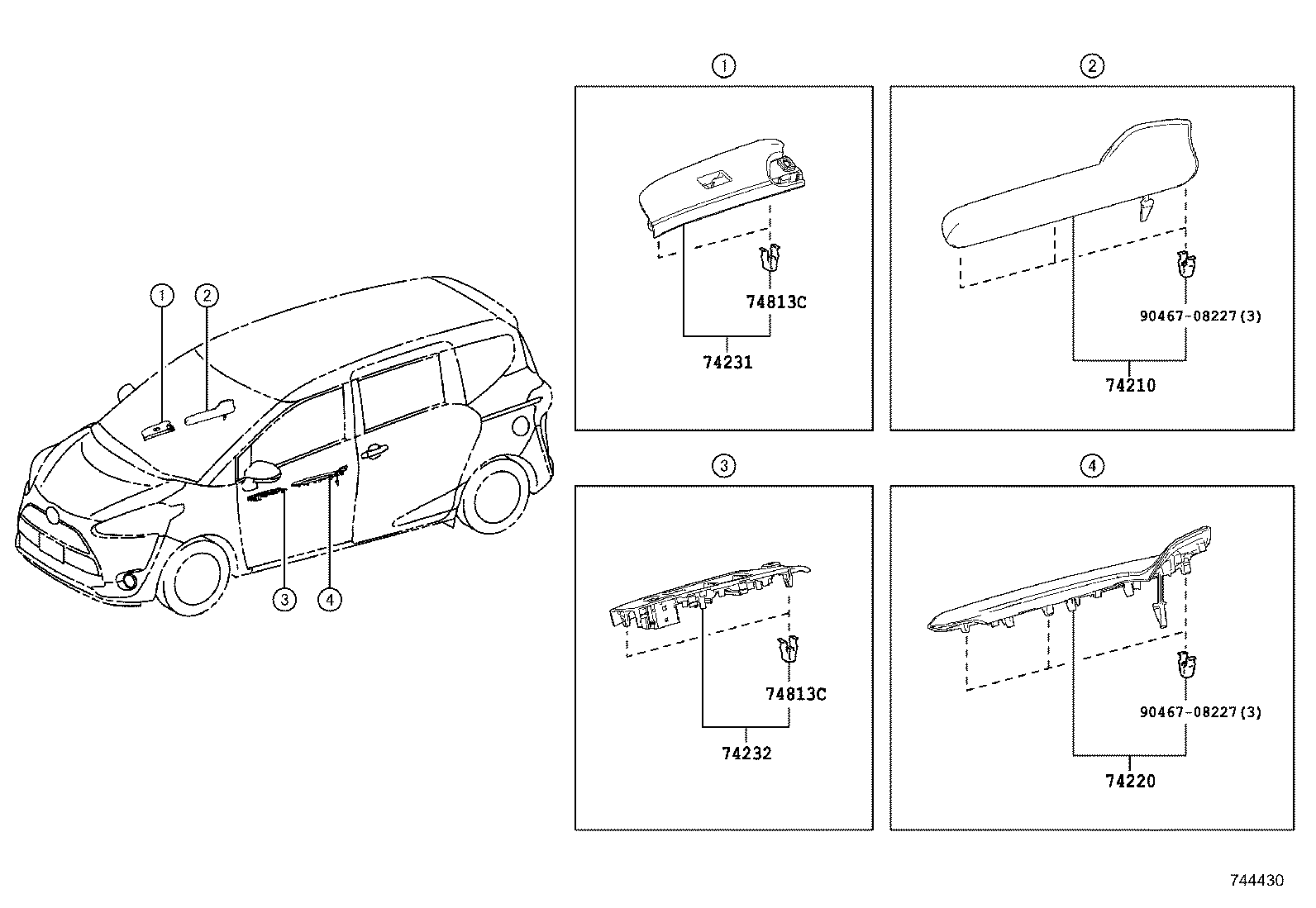

ILLUST NO. 1 OF 2(1611-1911)
Click highlighted areas on diagram
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-0D180A2 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 74210-0D180C2 |
ZSP170 BLACK,TRIM2# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-0D180A2 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 74220-0D180C2 |
ZSP170 BLACK,TRIM2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D540A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 74231-0D540C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D550C0 |
ZSP170 BLACK,TRIM2# |
1 | ||
| 74232-0D550A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 74813C - CLIP | ||||
| 90467-10203 |
NSP170,ZSP170 |
4 | ||
| 74813C - CLIP | ||||
| 90467-10203 |
NSP170,ZSP170 |
4 | ||
| Common parts | ||||
| 90467-08227 | ||||

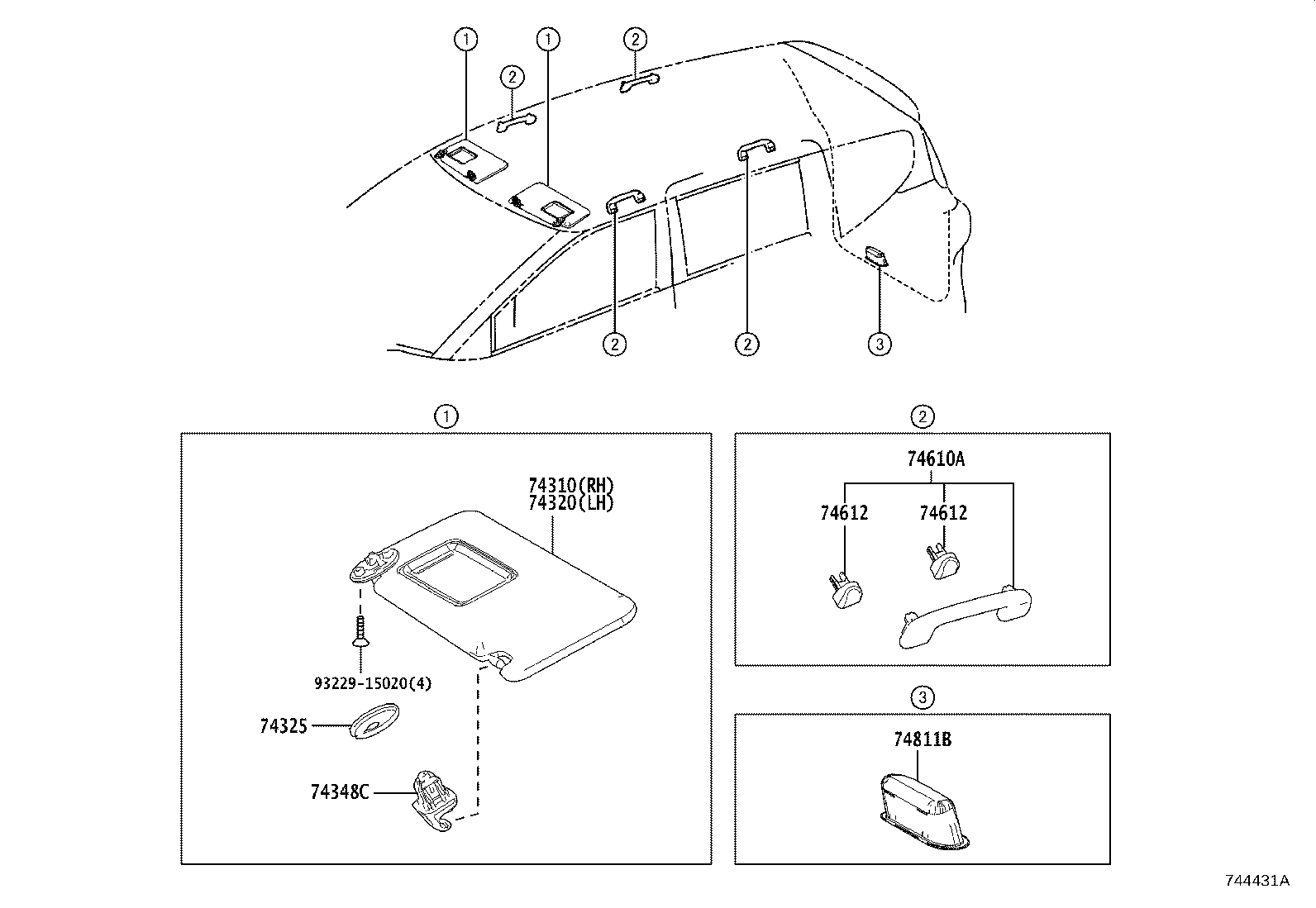

ILLUST NO. 2 OF 2(1611- )
Click highlighted areas on diagram
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-52E30B0 |
ZSP170 LT.GRAY,TRIM0#,2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-52E20B0 |
ZSP170 LT.GRAY,TRIM0#,2# |
1 | ||
| 74325 - COVER, VISOR BRACKET | ||||
| 74317-60020B1 |
ZSP170 LT.GRAY,TRIM0#,2# |
2 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-33040B1 |
ZSP170 LT.GRAY,TRIM0#,2# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0D150B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
3 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D050B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D050B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
6 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 69285-0D070 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 93229-15020 | ||||
