ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

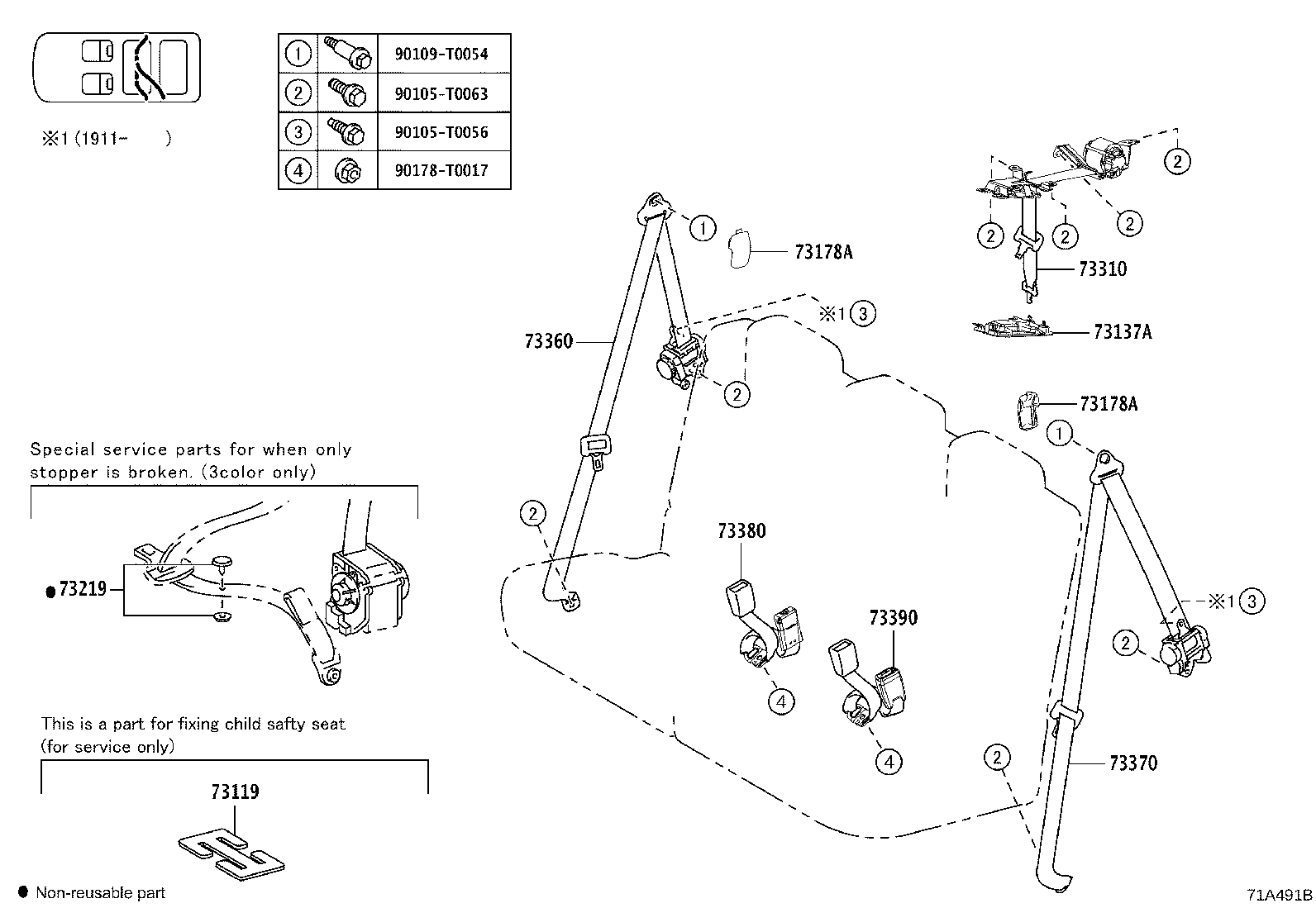

REAR NO.1 SEAT

diagram 73119 73137A 73178A 73178A 73219 73310 73360 73370 73380 73390 90105T0056 90105T0063 90109T0054 90178T0017
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NSP170,ZSP170

 1
73137A - COVER, SHOULDER BELT ANCHOR, UPR
73137-0D060B0

ZSP170

LT.GRAY,TRIM0#,2#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-0D090B0

ZSP170

LT.GRAY,TRIM0#,2#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-0D090B0

ZSP170

LT.GRAY,TRIM0#,2#

 2
73219 - STOPPER, TONGUE PLATE
73219-33010

NSP170,ZSP170

BLACK

 1
73219-33020

NSP170,ZSP170

GRAY

 1
73219-33030

NSP170,ZSP170

BEIGE

 1
73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH
73310-0D240C0

ZSP170

BLACK,TRIM0#,2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-0D410C0

ZSP170

BLACK,TRIM0#,2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-0D360C0

ZSP170

BLACK,TRIM0#,2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-0D120C0

ZSP170

BLACK,TRIM0#,2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73390-0D110C0

ZSP170

BLACK,TRIM0#,2#

 1
Common parts
90105-T0056
90105-T0063
90109-T0054
90178-T0017

(1611- )

Click highlighted areas on diagram

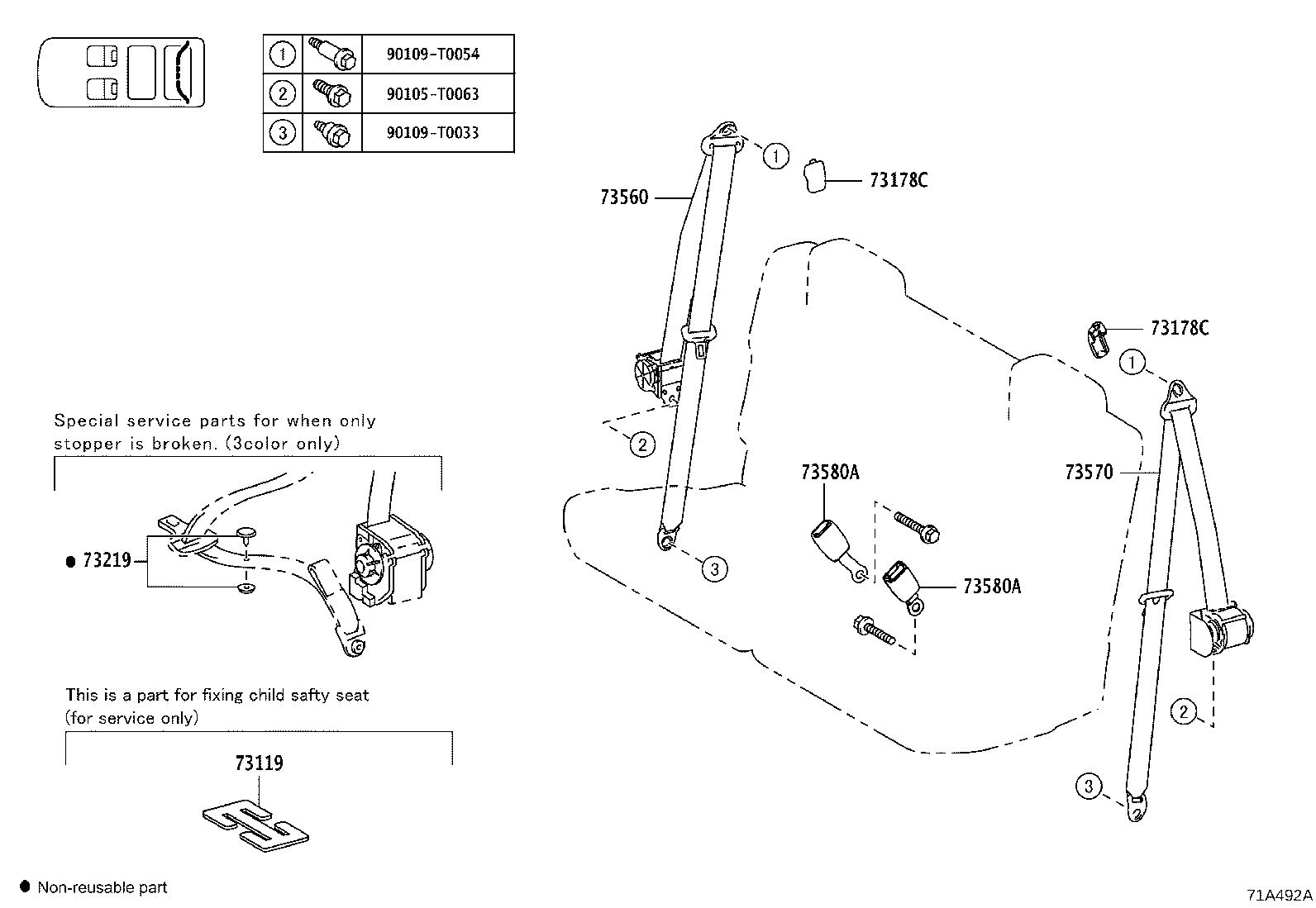

REAR NO.2 SEAT

diagram 73119 73178C 73178C 73219 73560 73570 73580A 73580A 90105T0063 90109T0033 90109T0054
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NSP170,ZSP170

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

NSP170,ZSP170

BLACK

 1
73219-33020

NSP170,ZSP170

GRAY

 1
73219-33030

NSP170,ZSP170

BEIGE

 1
Common parts
90105-T0063
90109-T0033
90109-T0054

(1611- )

Click highlighted areas on diagram

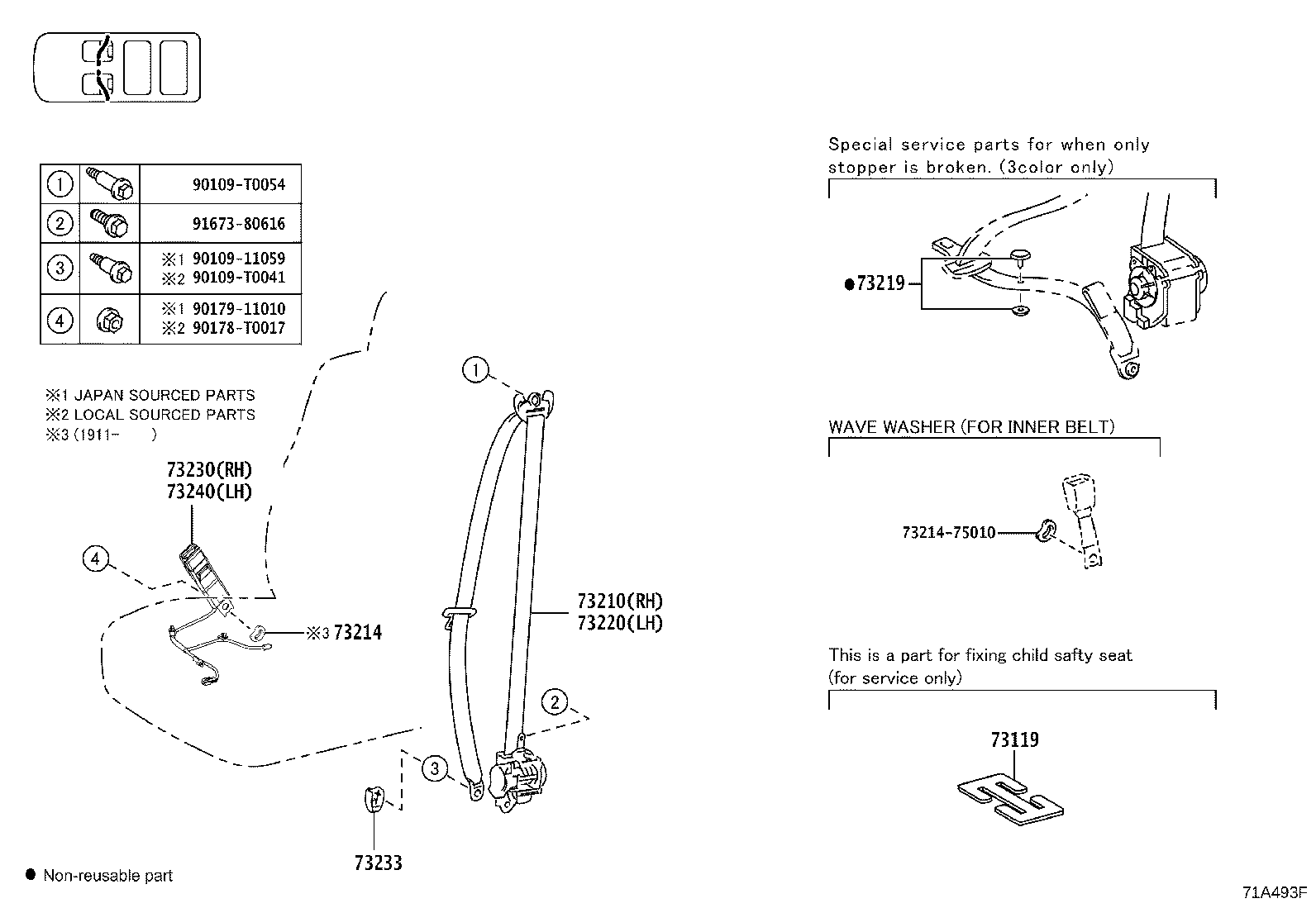

FRONT SEAT

diagram 73119 73210 73214 7321475010 73219 73220 73230 73233 73240 9010911059 90109T0041 90109T0054 90178T0017 9017911010 9167380616
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NSP170,ZSP170

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0D500C0

ZSP170

BLACK,TRIM0#,2#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

NSP170,ZSP170

BLACK

 1
73219-33020

NSP170,ZSP170

GRAY

 1
73219-33030

NSP170,ZSP170

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0D490C0

ZSP170

BLACK,TRIM0#,2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0D650C0

ZSP170

BLACK,TRIM0#,2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-KK010C0

ZSP170

BLACK,TRIM0#,2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-0D010C0

ZSP170

BLACK,TRIM0#,2#

 1
Common parts
73214-75010
90109-11059
90109-T0041
90109-T0054
90178-T0017
90179-11010
91673-80616
