ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
(1611- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

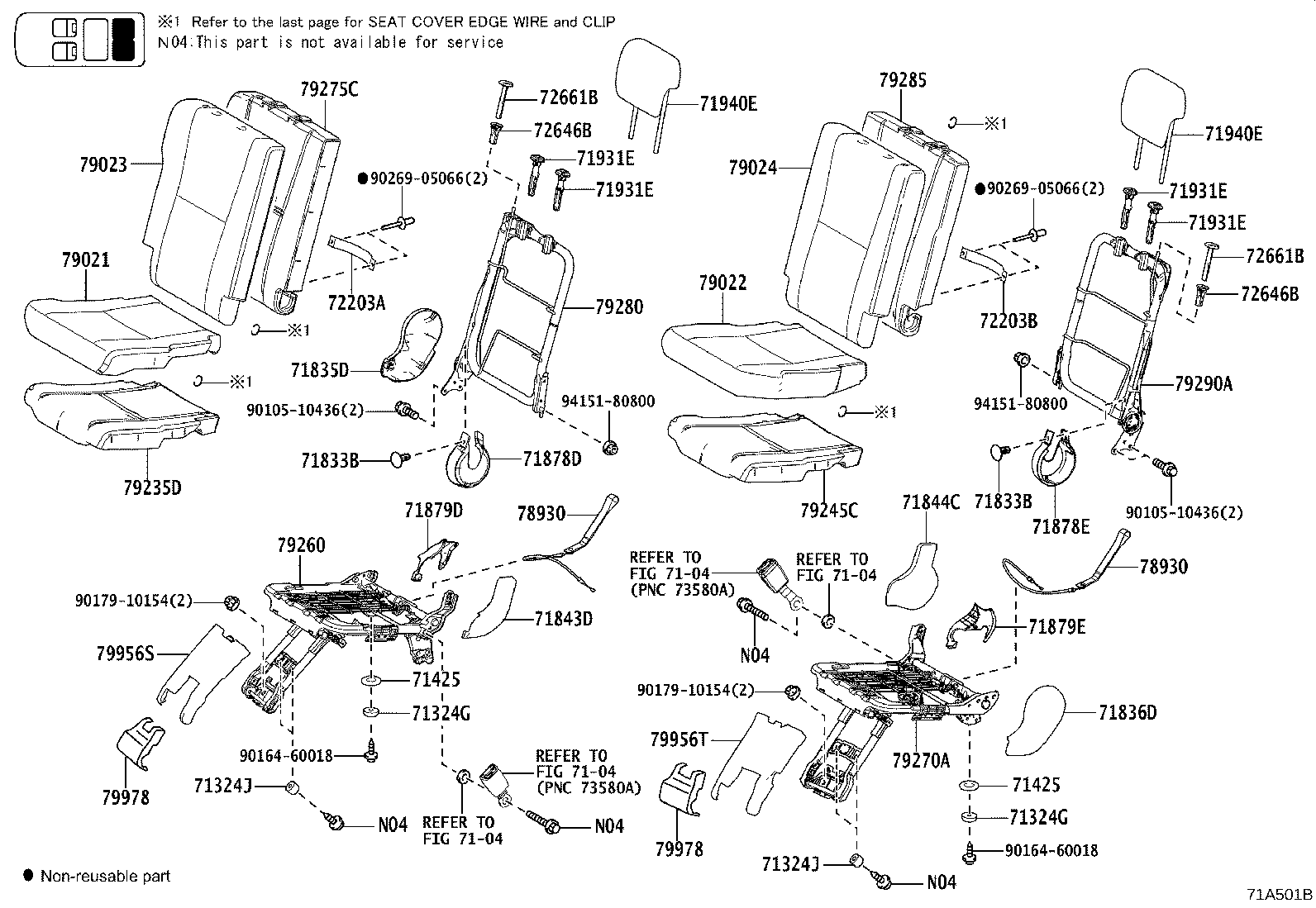

ILLUST NO. 3 OF 3(1611- )
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10436 | ||||
| 90164-60018 | ||||
| 90179-10154 | ||||
| 90269-05066 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7104 | ||||

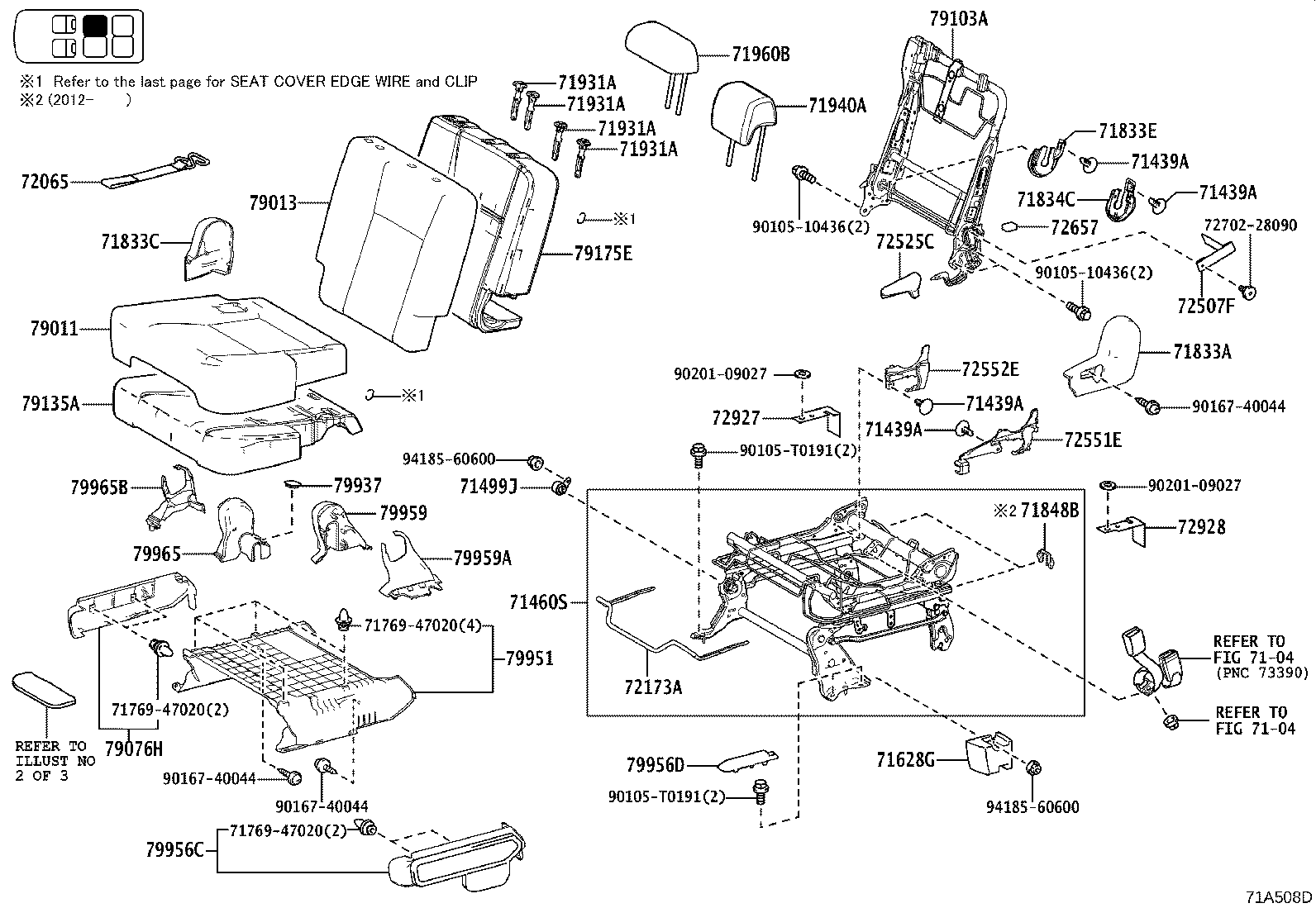

ILLUST NO. 1 OF 3(1611- )
REAR NO.1 SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71439A - CLIP | ||||
| 67771-26230C0 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230 |
ZSP170 |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C0 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230 |
ZSP170 |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C0 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230 |
ZSP170 |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C0 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230 |
ZSP170 |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-0DP90 |
NSP170,ZSP170 |
1 | ||
| 71499J - DAMPER, REAR SEAT CUSHION SPRING, RH | ||||
| 71499-52060 |
NSP170,ZSP170 |
1 | ||
| 71628G - SPACER, REAR SEAT CUSHION, RH | ||||
| 72136-0D030 |
NSP170,ZSP170 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0D120 |
ZSP170 |
1 | ||
| 71833-0D120C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71833-0D120C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-0D130C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71833-0D130 |
ZSP170 |
1 | ||
| 71833-0D130C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 71833-0D140C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 71833-0D140C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 71833-0D140 |
ZSP170 |
2 | ||
| 71834C - COVER, REAR SEAT RECLINING, NO.3 LH | ||||
| 71834-0D140C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 71834-0D140 |
ZSP170 |
2 | ||
| 71834-0D140C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370 |
ZSP170 W(LOCK)&W(BUTTON) |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130 |
ZSP170 W/O(LOCK) |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370 |
ZSP170 W(LOCK)&W(BUTTON) |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130 |
ZSP170 W/O(LOCK) |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370 |
ZSP170 W(LOCK)&W(BUTTON) |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130 |
ZSP170 W/O(LOCK) |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370 |
ZSP170 W(LOCK)&W(BUTTON) |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130 |
ZSP170 W/O(LOCK) |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0DQ70 |
ZSP170 |
2 | ||
| 71940-0DG50E2 |
ZSP170 CHOCOLATE BROWN,TRIM0#,20 |
2 | ||
| 71940-0DG50B1 |
ZSP170 DK.GRAY,TRIM20 |
2 | ||
| 71940-0DQ70C0 |
ZSP170 BLACK,TRIM2# |
2 | ||
| 71940-0DQ70E0 |
ZSP170 NOBLE BROWN,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0DA00B1 |
ZSP170 DK.GRAY,TRIM20 |
1 | ||
| 71960-0D670E0 |
ZSP170 NOBLE BROWN,TRIM0# |
1 | ||
| 71960-0D670C0 |
ZSP170 BLACK,TRIM2# |
1 | ||
| 71960-0D670 |
ZSP170 |
1 | ||
| 71960-0DA00E2 |
ZSP170 CHOCOLATE BROWN,TRIM0#,20 |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-0D020C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72065-0D020 |
ZSP170 |
1 | ||
| 72065-0D020C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72173A - HANDLE, REAR SEAT TRACK ADJUSTING, RH | ||||
| 72173-0D020 |
NSP170,ZSP170 |
1 | ||
| 72507F - HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE | ||||
| 72507-0D020C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 72507-0D020 |
ZSP170 |
2 | ||
| 72507-0D020C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0D220C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72525-0D220 |
ZSP170 |
1 | ||
| 72525-0D220C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72551E - COVER, RECLINING HINGE, RH | ||||
| 72551-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72551-0D030 |
ZSP170 |
1 | ||
| 72551-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72552E - COVER, RECLINING HINGE, LH | ||||
| 72552-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72552-0D030 |
ZSP170 |
1 | ||
| 72552-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72657 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD | ||||
| 72657-0D030 |
NSP170,ZSP170 |
2 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72907-0D010 |
NSP170,ZSP170 |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72908-0D010 |
NSP170,ZSP170 |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0D050B1 |
ZSP170..05S CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 79011-0D070B0 |
ZSP170..05S BLACK/BLACK,TRIM2# |
1 | ||
| 79011-0D070 |
ZSP170..05S |
1 | ||
| 79011-0D050B0 |
ZSP170..05S BLACK/ ORENGE,TRIM2# |
1 | ||
| 79011-0D070B1 |
ZSP170..05S NOBLE BROWN/NOBLE BROWN,TRIM0# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0D060E2 |
ZSP170 CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 79013-0D070C0 |
ZSP170 BLACK/BLACK,TRIM2# |
1 | ||
| 79013-0D070E0 |
ZSP170 NOBLE BROWN/NOBLE BROWN,TRIM0# |
1 | ||
| 79013-0D060C2 |
ZSP170 BLACK/ ORENGE,TRIM2# |
1 | ||
| 79013-0D070 |
ZSP170 |
1 | ||
| 79076H - COVER SUB-ASSY, NO.1 SEAT LEG, RH | ||||
| 79076-0D030 |
ZSP170 |
1 | ||
| 79076-0D030C1 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79076-0D030C1 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79076-0D030C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 79076-0D030A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-0D030 |
NSP170,ZSP170..05S |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0D020 |
NSP170,ZSP170 |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0D020 |
NSP170,ZSP170 |
1 | ||
| 79937 - COVER, REAR SEAT LEG, NO.2 | ||||
| 79937-0D060C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 79951 - COVER, NO.1 SEAT CUSHION | ||||
| 79951-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79951-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79951-0D030 |
ZSP170 |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-0D100C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956-0D100 |
ZSP170 |
1 | ||
| 79956-0D100C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-0D130C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-0D100 |
ZSP170 |
1 | ||
| 79959-0D100C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959-0D100C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959-0D030 |
ZSP170 |
1 | ||
| 79959-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0D050 |
ZSP170 |
1 | ||
| 79965-0D050C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965-0D050C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965B - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0D060C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965-0D060 |
ZSP170 |
1 | ||
| 79965-0D060C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 71769-47020 | ||||
| 72702-28090 | ||||
| 90105-10436 | ||||
| 90105-T0191 | ||||
| 90167-40044 | ||||
| 90201-09027 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

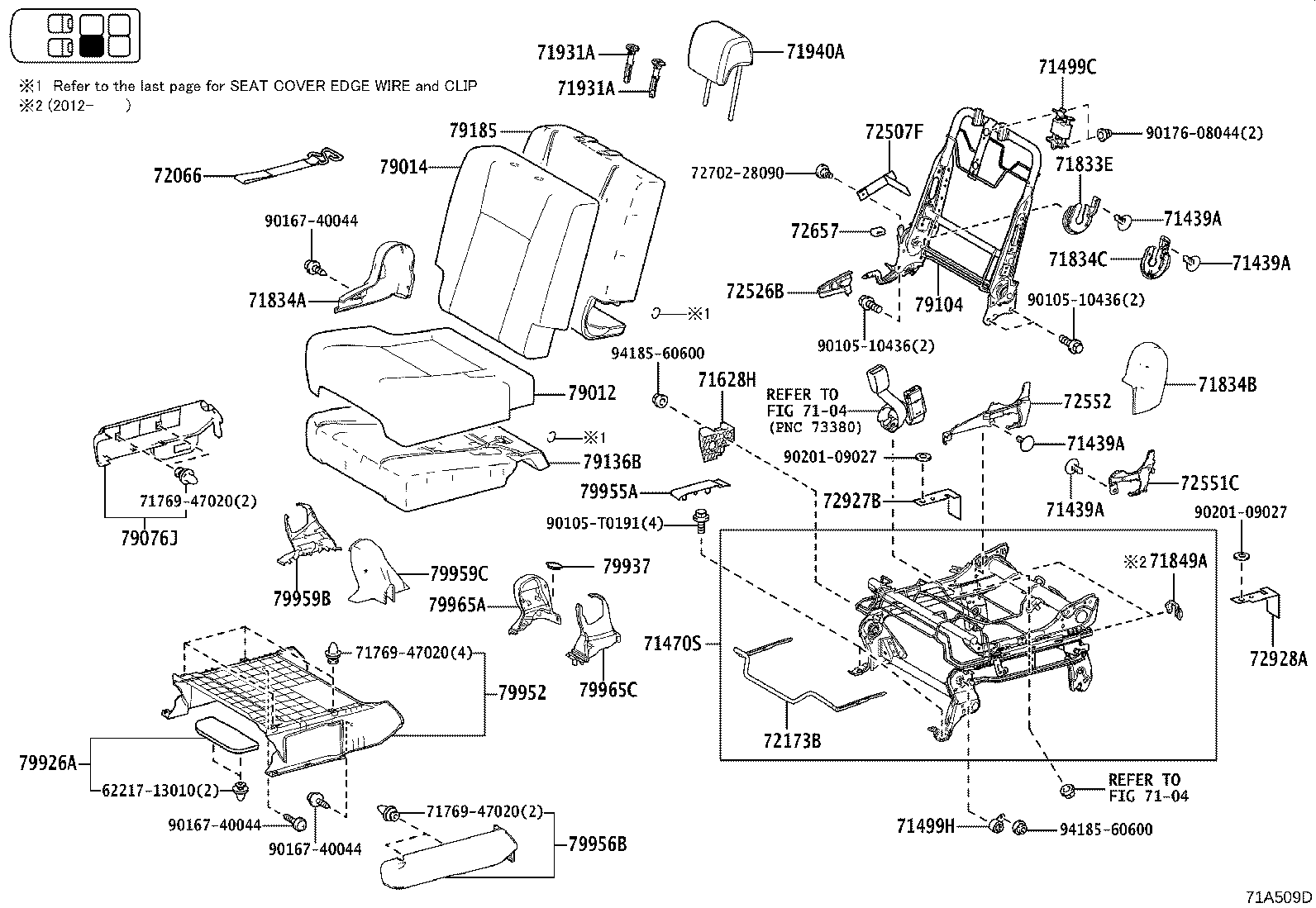

ILLUST NO. 2 OF 3(1611- )
REAR NO.1 SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71439A - CLIP | ||||
| 67771-26230C0 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230 |
ZSP170 |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C0 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230 |
ZSP170 |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C0 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230 |
ZSP170 |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 71439A - CLIP | ||||
| 67771-26230C0 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230 |
ZSP170 |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 67771-26230C1 |
ZSP170 BLACK,TRIM0#,2# |
8 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-0D160 |
NSP170,ZSP170 |
1 | ||
| 71499C - DAMPER, REAR SEAT CUSHION SPRING | ||||
| 71499-46020 |
NSP170,ZSP170 |
1 | ||
| 71499H - DAMPER, REAR SEAT BACK SPRING, LH | ||||
| 71499-52070 |
NSP170,ZSP170 |
1 | ||
| 71628H - SPACER, REAR SEAT CUSHION, LH | ||||
| 72136-0D040 |
NSP170,ZSP170 |
1 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 71833-0D140C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 71833-0D140C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 71833-0D140 |
ZSP170 |
2 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0D120C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71834-0D120 |
ZSP170 |
1 | ||
| 71834-0D120C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-0D130C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71834-0D130 |
ZSP170 |
1 | ||
| 71834-0D130C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71834C - COVER, REAR SEAT RECLINING, NO.3 LH | ||||
| 71834-0D140C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 71834-0D140 |
ZSP170 |
2 | ||
| 71834-0D140C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370 |
ZSP170 W(LOCK)&W(BUTTON) |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130 |
ZSP170 W/O(LOCK) |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02370 |
ZSP170 W(LOCK)&W(BUTTON) |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
3 | ||
| 71931-02130 |
ZSP170 W/O(LOCK) |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0DQ70 |
ZSP170 |
2 | ||
| 71940-0DG50E2 |
ZSP170 CHOCOLATE BROWN,TRIM0#,20 |
2 | ||
| 71940-0DG50B1 |
ZSP170 DK.GRAY,TRIM20 |
2 | ||
| 71940-0DQ70C0 |
ZSP170 BLACK,TRIM2# |
2 | ||
| 71940-0DQ70E0 |
ZSP170 NOBLE BROWN,TRIM0# |
2 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-0D020 |
ZSP170 |
1 | ||
| 72065-0D020C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72065-0D020C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72173B - HANDLE, REAR SEAT TRACK ADJUSTING, LH | ||||
| 72173-0D020 |
NSP170,ZSP170 |
1 | ||
| 72507F - HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE | ||||
| 72507-0D020C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 72507-0D020 |
ZSP170 |
2 | ||
| 72507-0D020C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-0D230 |
ZSP170 |
1 | ||
| 72526-0D230C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72526-0D230C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72551C - COVER, RECLINING HINGE, NO.2 | ||||
| 72551-0D040C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72551-0D040 |
ZSP170 |
1 | ||
| 72551-0D040C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72552 - COVER, RECLINING HINGE, NO.2 | ||||
| 72552-0D040C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72552-0D040C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72552-0D040 |
ZSP170 |
1 | ||
| 72657 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD | ||||
| 72657-0D030 |
NSP170,ZSP170 |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72907-0D010 |
NSP170,ZSP170 |
1 | ||
| 72928A - COVER, REAR SEAT CUSHION UNDER, NO.2 | ||||
| 72908-0D010 |
NSP170,ZSP170 |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0D050B1 |
ZSP170..05S CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 79012-0D070 |
ZSP170..05S |
1 | ||
| 79012-0D070B0 |
ZSP170..05S BLACK/BLACK,TRIM2# |
1 | ||
| 79012-0D050B0 |
ZSP170..05S BLACK/ ORENGE,TRIM2# |
1 | ||
| 79012-0D070B1 |
ZSP170..05S NOBLE BROWN/NOBLE BROWN,TRIM0# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-0D070E0 |
ZSP170 NOBLE BROWN/NOBLE BROWN,TRIM0# |
1 | ||
| 79014-0D060C2 |
ZSP170 BLACK/ ORENGE,TRIM2# |
1 | ||
| 79014-0D060E2 |
ZSP170 CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 79014-0D070C0 |
ZSP170 BLACK/BLACK,TRIM2# |
1 | ||
| 79014-0D070 |
ZSP170 |
1 | ||
| 79076J - COVER SUB-ASSY, NO.1 SEAT LEG, LH | ||||
| 79076-0D040C1 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79076-0D040A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 79076-0D040 |
ZSP170 |
1 | ||
| 79076-0D040C1 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79076-0D040C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-0D030 |
NSP170,ZSP170..05S |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-0D020 |
NSP170,ZSP170 |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-0D020 |
NSP170,ZSP170 |
1 | ||
| 79926A - COVER, REAR SEAT LEG GARNISH | ||||
| 79926-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79937 - COVER, REAR SEAT LEG, NO.2 | ||||
| 79937-0D060C0 |
ZSP170 BLACK,TRIM0#,2# |
2 | ||
| 79952 - COVER, NO.2 SEAT CUSHION | ||||
| 79951-0D040C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79951-0D040 |
ZSP170 |
1 | ||
| 79951-0D040C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-0D030C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-0D120 |
ZSP170 |
1 | ||
| 79956-0D120C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79956-0D120C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-0D110C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959-0D110 |
ZSP170 |
1 | ||
| 79959-0D110C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-0D120C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959-0D120C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79959-0D120 |
ZSP170 |
1 | ||
| 79965A - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0D070C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965-0D070C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965-0D070 |
ZSP170 |
1 | ||
| 79965C - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0D080 |
ZSP170 |
1 | ||
| 79965-0D080C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 79965-0D080C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 71769-47020 | ||||
| 72702-28090 | ||||
| 90105-10436 | ||||
| 90105-T0191 | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90201-09027 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
