ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
(1611- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1611- )

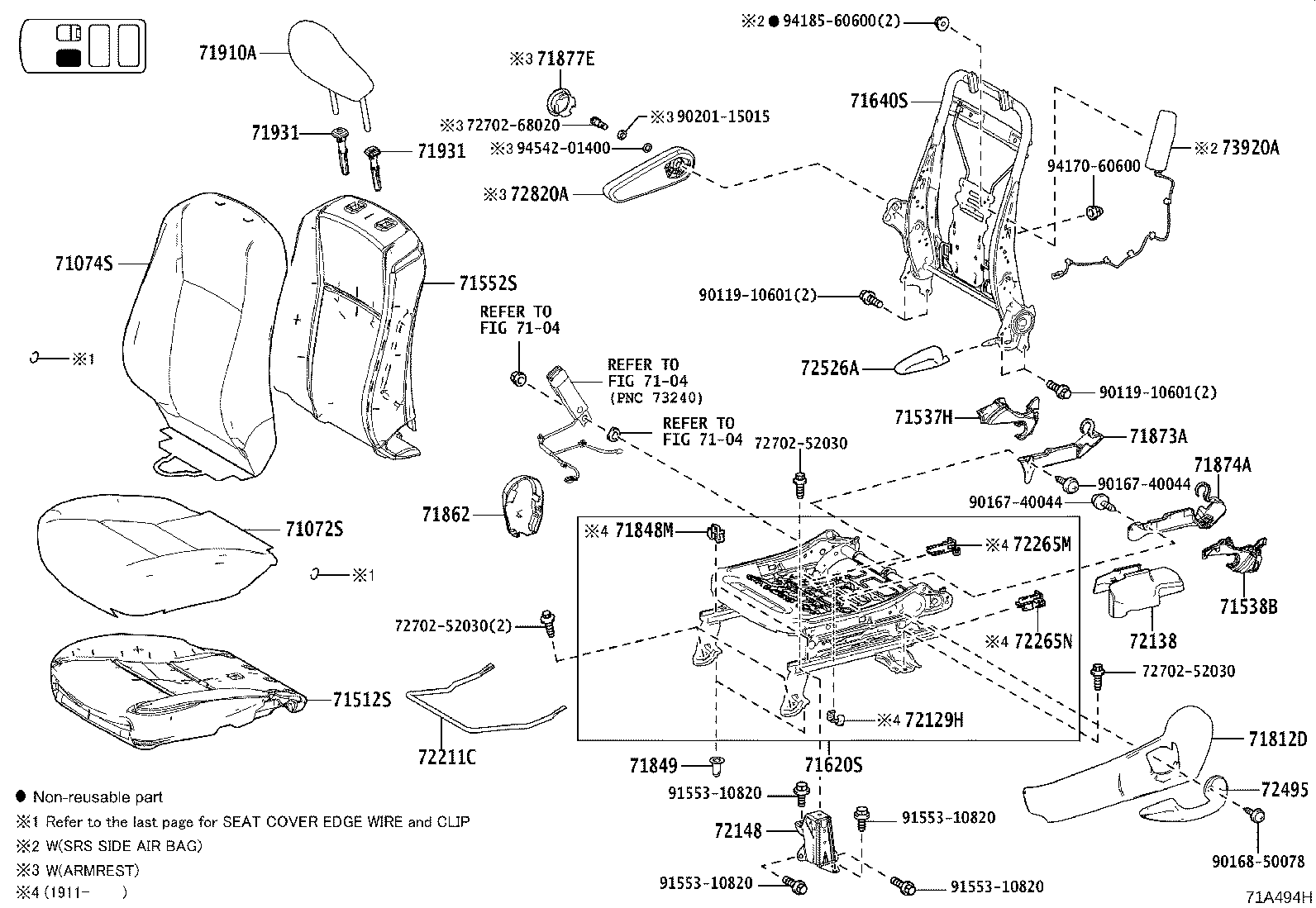

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0DU90B5 |
ZSP170..N BLACK/ ORENGE,TRIM2# |
1 | ||
| 71072-0DV00B7 |
ZSP170..Q,U CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 71072-0DU90B6 |
ZSP170..N CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 71072-0U570B1 |
ZSP170 NOBLE BROWN/NOBLE BROWN,TRIM0# |
1 | ||
| 71072-0U570B0 |
ZSP170 BLACK/BLACK,TRIM2# |
1 | ||
| 71072-0DV00B6 |
ZSP170..Q,U BLACK/ ORENGE,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0DT40B4 |
ZSP170..N CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 71074-0DT50B5 |
ZSP170..Q,U CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 71074-0DT40B3 |
ZSP170..N BLACK/ ORENGE,TRIM2# |
1 | ||
| 71074-0DT50B4 |
ZSP170..Q,U BLACK/ ORENGE,TRIM2# |
1 | ||
| 71074-0U470B0 |
ZSP170 BLACK/BLACK,TRIM2# |
1 | ||
| 71074-0U470B1 |
ZSP170 NOBLE BROWN/NOBLE BROWN,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0D560 |
NSP170,ZSP170 |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-02260C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-02190C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0D570 |
ZSP170..N |
1 | ||
| 71552-0D580 |
ZSP170..Q,U |
1 | ||
| 71552-0D580 |
ZSP170..N |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0D280 |
NSP170,ZSP170 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0D330 |
ZSP170 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D440C0 |
ZSP170..Q,U BLACK,TRIM0#,2# |
1 | ||
| 71812-0D240C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 71812-0D440C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
NSP170,ZSP170 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D280C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-06460 |
NSP170,ZSP170 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06450 |
NSP170,ZSP170 |
1 | ||
| 71877E - COVER, SEAT ARMREST HOLE, LH | ||||
| 71877-68010C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DM10C0 |
ZSP170 BLACK/BLACK,TRIM2# |
2 | ||
| 71910-0DC20E1 |
ZSP170 CHOCOLATE BROWN,TRIM0# |
2 | ||
| 71910-0DM10E0 |
ZSP170 NOBLE BROWN/NOBLE BROWN,TRIM0# |
2 | ||
| 71910-0DC20B0 |
ZSP170 DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
2 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
2 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0D170C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52220 |
NSP170,ZSP170 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D210 |
ZSP170 |
1 | ||
| 72211-02140 |
ZSP170 |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-02050C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0M010C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-0D080B0 |
ZSP170 DK.GRAY,TRIM0#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-52110 |
ZSP170..Q,U |
1 | ||
| 73920-52110 |
ZSP170..N |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 72702-68020 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1611- )

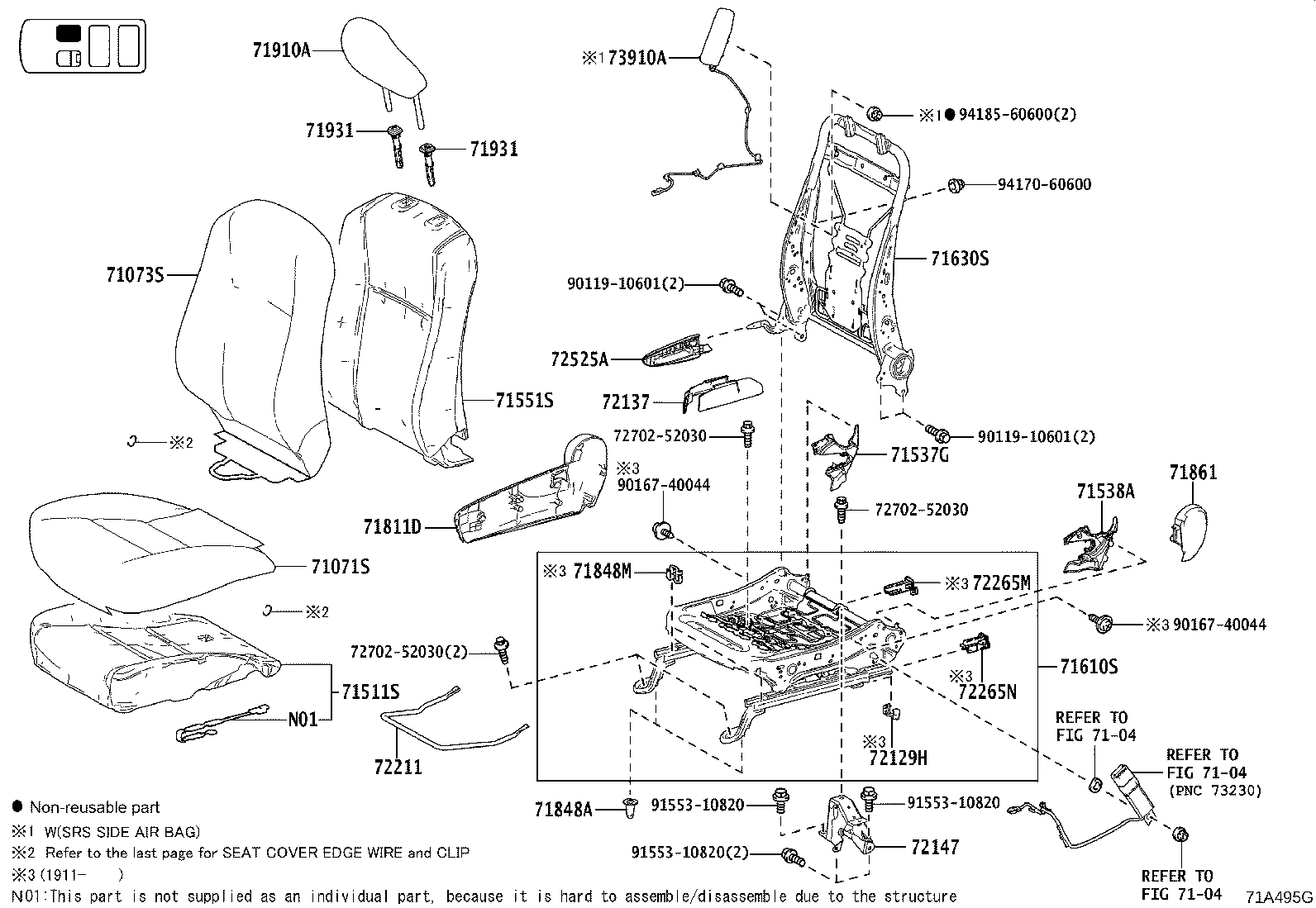

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0DV30B5 |
ZSP170..N BLACK/ ORENGE,TRIM2# |
1 | ||
| 71071-0U770B0 |
ZSP170 BLACK/BLACK,TRIM2# |
1 | ||
| 71071-0DV30B6 |
ZSP170..N CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 71071-0DV40B6 |
ZSP170..Q,U BLACK/ ORENGE,TRIM2# |
1 | ||
| 71071-0DV40B7 |
ZSP170..Q,U CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 71071-0U770B1 |
ZSP170 NOBLE BROWN/NOBLE BROWN,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0U860B1 |
ZSP170 NOBLE BROWN/NOBLE BROWN,TRIM0# |
1 | ||
| 71073-0DX30B4 |
ZSP170..Q,U BLACK/ ORENGE,TRIM2# |
1 | ||
| 71073-0DX30B5 |
ZSP170..Q,U CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 71073-0DX20B4 |
ZSP170..N CHOCOLATE BROWN/ORENGE,TRIM0# |
1 | ||
| 71073-0DX20B3 |
ZSP170..N BLACK/ ORENGE,TRIM2# |
1 | ||
| 71073-0U860B0 |
ZSP170 BLACK/BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0D140 |
NSP170,ZSP170 |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02220C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02150C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0D670 |
ZSP170..N |
1 | ||
| 71551-0D670 |
ZSP170..Q,U |
1 | ||
| 71551-0D660 |
ZSP170..N |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0D260 |
NSP170,ZSP170 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0D360 |
NSP170,ZSP170 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D330C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 71811-0D320C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 71811-0D330C0 |
ZSP170..Q,U BLACK,TRIM0#,2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
NSP170,ZSP170 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02260C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DM10C0 |
ZSP170 BLACK/BLACK,TRIM2# |
2 | ||
| 71910-0DC20E1 |
ZSP170 CHOCOLATE BROWN,TRIM0# |
2 | ||
| 71910-0DM10E0 |
ZSP170 NOBLE BROWN/NOBLE BROWN,TRIM0# |
2 | ||
| 71910-0DC20B0 |
ZSP170 DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
2 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
ZSP170 W(LOCK)&W(BUTTON),BLACK,TRIM0#,2# |
2 | ||
| 71931-02130C0 |
ZSP170 W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0D190C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52230 |
NSP170,ZSP170 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D210 |
ZSP170 |
1 | ||
| 72211-02140 |
ZSP170 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02230C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52110 |
ZSP170..N |
1 | ||
| 73910-52110 |
ZSP170..Q,U |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
