ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

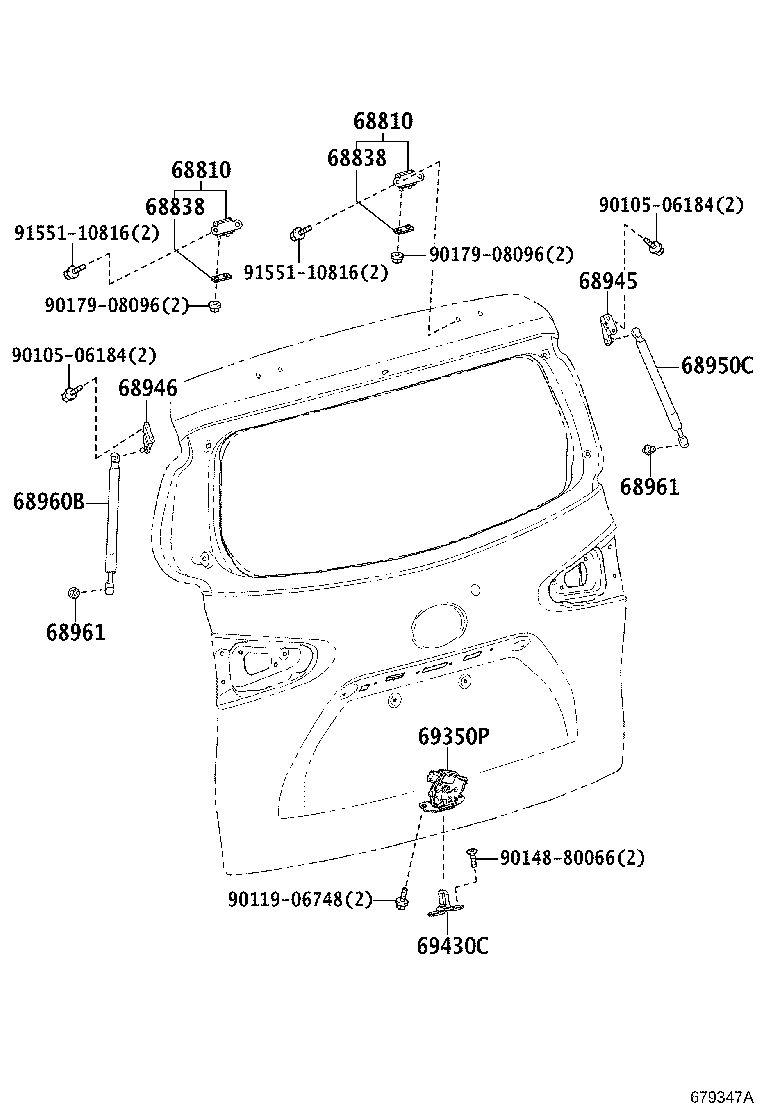

Click highlighted areas on diagram

diagram 68810 68810 68838 68838 68945 68946 68950C 68960B 68961 68961 69350P 69430C 9010506184 9010506184 9011906748 9014880066 9017908096 9017908096 9155110816 9155110816
Part # Description Qty Price
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-52130

NSP170,ZSP170

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-52130

NSP170,ZSP170

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-47020

NSP170,ZSP170

T=1.5

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-47020

NSP170,ZSP170

T=1.5

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0D090

NSP170,ZSP170

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-0D020

NSP170,ZSP170

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0D180

NSP170,ZSP170

 1
68960B - STAY ASSY, BACK DOOR, LH
68960-0D140

NSP170,ZSP170

 1
68961 - BOLT, BACK DOOR STAY
68961-52020

NSP170,ZSP170

 2
68961 - BOLT, BACK DOOR STAY
68961-52020

NSP170,ZSP170

 2
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0D240

NSP170,ZSP170

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52050

NSP170,ZSP170

 1
Common parts
90105-06184
90119-06748
90148-80066
90179-08096
91551-10816
