ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

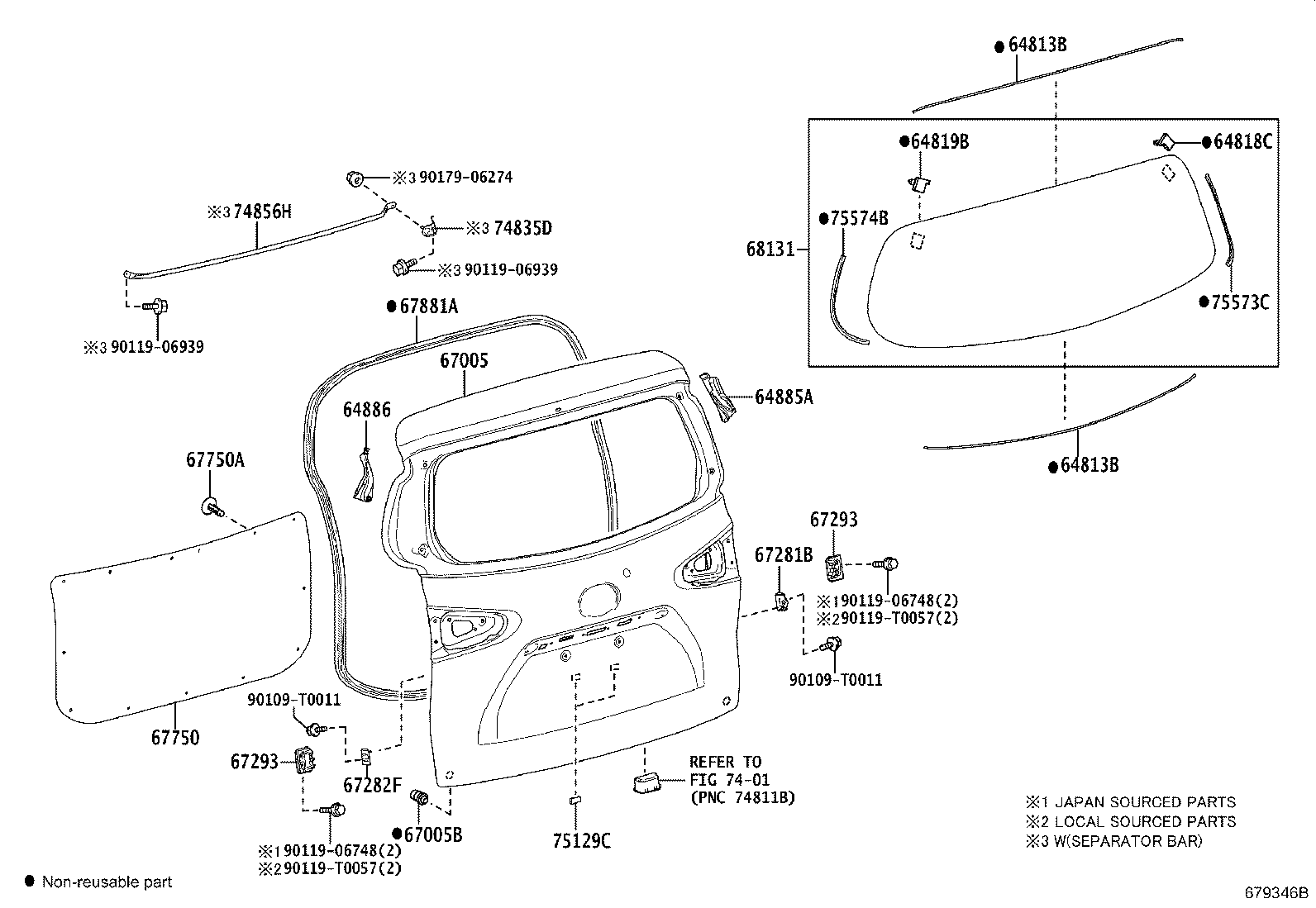

Click highlighted areas on diagram

diagram 64813B 64813B 64818C 64819B 64885A 64886 67005 67005B 67281B 67282F 67293 67293 67750 67750A 67881A 68131 7401 74835D 74856H 75129C 75573C 75574B 90109T0011 90109T0011 9011906748 9011906748 9011906939 9011906939 90119T0057 90119T0057 9017906274
Part # Description Qty Price
64813B - DAM, BACK WINDOW GLASS ADHESIVE
64813-0D330

NSP170,ZSP170

 2
64813B - DAM, BACK WINDOW GLASS ADHESIVE
64813-0D330

NSP170,ZSP170

 2
64818C - SPACER, BACK WINDOW GLASS, NO.1
64818-0D120

NSP170,ZSP170

 1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-0D110

NSP170,ZSP170

 1
64885A - CHANNEL, BACK WINDOW GLASS, RH
64885-0D010

NSP170,ZSP170

 1
64886 - CHANNEL, BACK WINDOW GLASS, LH
64886-0D010

NSP170,ZSP170

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0D210

NSP170,ZSP170..05S

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09142

NSP170,ZSP170

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-0D010

NSP170,ZSP170

 1
67282F - STOPPER, BACK DOOR, LWR LH
67281-0D010

NSP170,ZSP170

 1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-0D010

NSP170,ZSP170

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-0D010

NSP170,ZSP170

 2
67750 - BOARD ASSY, BACK DOOR TRIM
67750-0D190B0

ZSP170

GRAY,TRIM0#,2#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-08186C3

ZSP170

BLACK,TRIM0#,2#

 13
67881A - WEATHERSTRIP, BACK DOOR
67881-0D210

NSP170,ZSP170

 1
68131 - GLASS, BACK DOOR
68105-0D380

NSP170,ZSP170

 1
74835D - BRACKET, SEPARATOR BAR
74835-0D010

NSP170,ZSP170..05S

 1
74856H - BAR, SEPARATOR
74856-0D010

NSP170,ZSP170..05S

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-0D030

NSP170,ZSP170

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-0D070

NSP170,ZSP170

 1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75574-0D020

NSP170,ZSP170

 1
Common parts
90109-T0011
90119-06748
90119-06939
90119-T0057
90179-06274
Linked diagrams
7401
