ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)

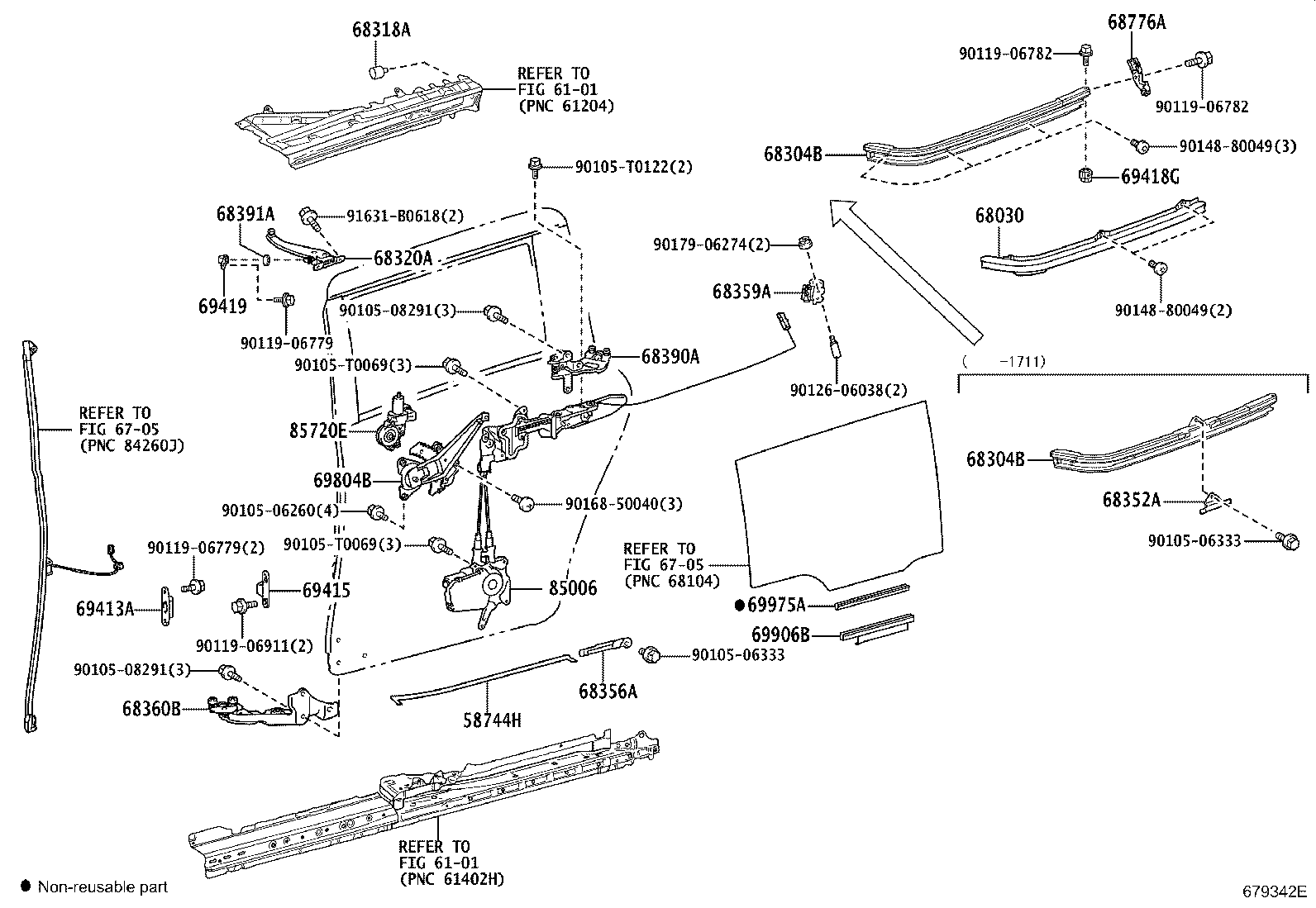

ILLUST NO. 1 OF 2(1611- )N,Q,U
W(POWER SLIDE DOOR) LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58744H - PROTECTOR, SLIDE DOOR PANEL, LH | ||||
| 58744-52050 |
NSP170,ZSP170 |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-52060 |
NSP170,ZSP170..D,N,Q |
1 | ||
| 68304-0D031 |
ZSP170..05S..Q;NSP170,ZSP170..D,N |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-52060 |
NSP170,ZSP170..D,N,Q |
1 | ||
| 68304-0D031 |
ZSP170..05S..Q;NSP170,ZSP170..D,N |
1 | ||
| 68318A - STOPPER, SLIDE DOOR UPPER RAIL, LH | ||||
| 68317-0D010 |
NSP170,ZSP170 |
1 | ||
| 68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68320-0D010 |
NSP170,ZSP170 |
1 | ||
| 68352A - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 LH | ||||
| 68352-52030 |
NSP170,ZSP170 |
1 | ||
| 68356A - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH | ||||
| 68356-0D030 |
NSP170,ZSP170 |
1 | ||
| 68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH | ||||
| 68360-0D030 |
NSP170,ZSP170 |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-0D020 |
NSP170,ZSP170 |
1 | ||
| 68391A - CUSHION, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68391-28040 |
NSP170,ZSP170 |
1 | ||
| 69413A - STOP, FRONT SLIDE DOOR DOWN MALE | ||||
| 69046-52010 |
NSP170,ZSP170 |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-52010 |
NSP170,ZSP170 |
2 | ||
| 69418G - CUSHION, SLIDE DOOR OPEN STOPPER, LH | ||||
| 69417-52010 |
NSP170,ZSP170 |
1 | ||
| 69419 - STOP, SLIDE DOOR OPEN, LH | ||||
| 69419-52010 |
NSP170,ZSP170 |
1 | ||
| 69804B - REGULATOR SUB-ASSY, SLIDE DOOR WINDOW, LH | ||||
| 69804-0D220 |
NSP170,ZSP170 |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-02130 |
NSP170,ZSP170 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
NSP170,ZSP170 |
2 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-0D380 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-06333 | ||||
| 90105-08291 | ||||
| 90105-T0069 | ||||
| 90105-T0122 | ||||
| 90119-06779 | ||||
| 90119-06782 | ||||
| 90119-06911 | ||||
| 90126-06038 | ||||
| 90148-80049 | ||||
| 90168-50040 | ||||
| 90179-06274 | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 6705 | ||||

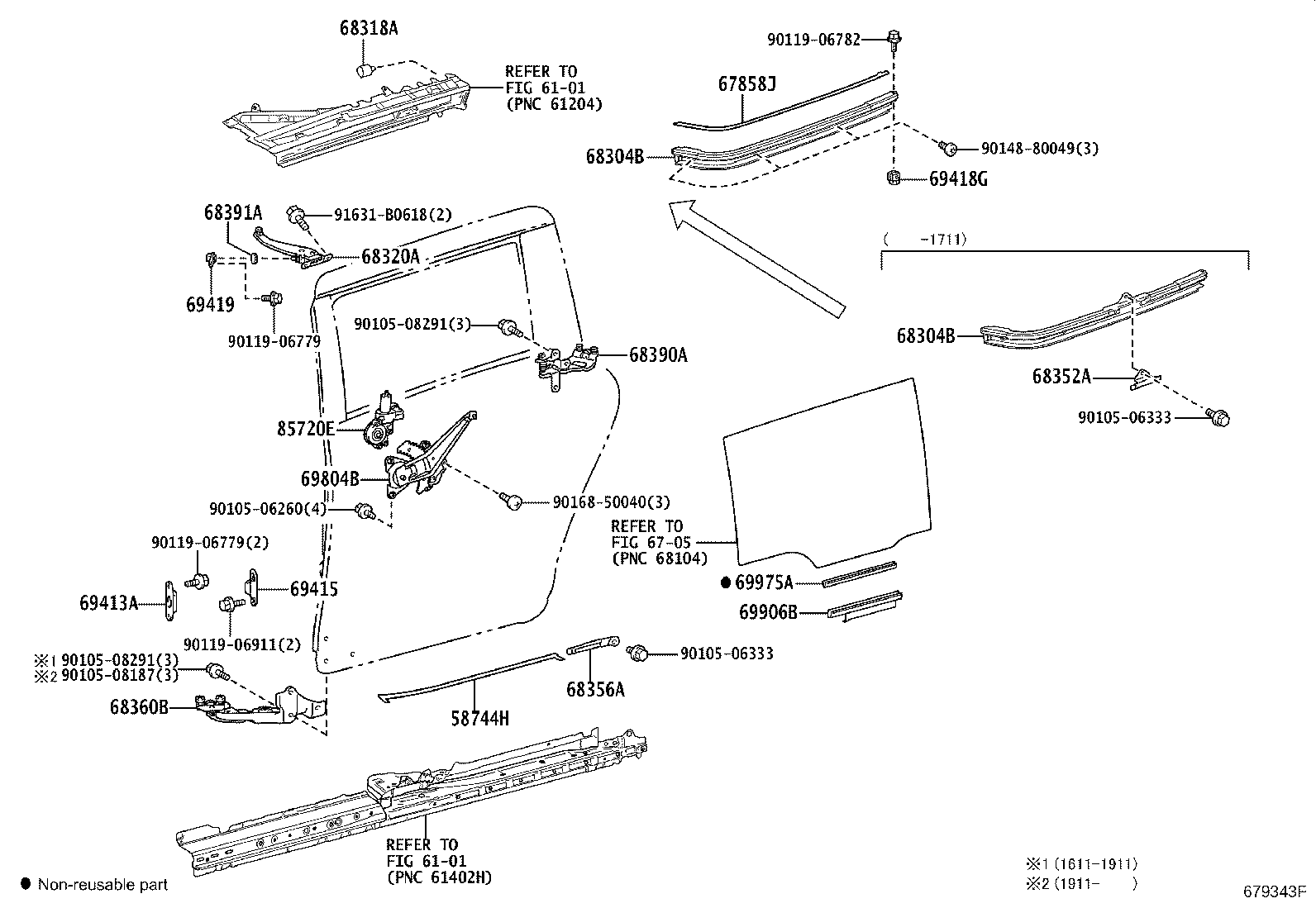

ILLUST NO. 1 OF 2(1611- )D,N,Q,W
W/O(POWER SLIDE DOOR) LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58744H - PROTECTOR, SLIDE DOOR PANEL, LH | ||||
| 58744-52050 |
NSP170,ZSP170 |
1 | ||
| 67858J - PROTECTOR, SLIDE DOOR RAIL, LH | ||||
| 67858-52100 |
ZSP170..05S..Q;NSP170,ZSP170..D,N |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-52060 |
NSP170,ZSP170..D,N,Q |
1 | ||
| 68304-0D031 |
ZSP170..05S..Q;NSP170,ZSP170..D,N |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-52060 |
NSP170,ZSP170..D,N,Q |
1 | ||
| 68304-0D031 |
ZSP170..05S..Q;NSP170,ZSP170..D,N |
1 | ||
| 68318A - STOPPER, SLIDE DOOR UPPER RAIL, LH | ||||
| 68317-0D010 |
NSP170,ZSP170 |
1 | ||
| 68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68320-0D010 |
NSP170,ZSP170 |
1 | ||
| 68352A - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 LH | ||||
| 68352-52030 |
NSP170,ZSP170 |
1 | ||
| 68356A - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH | ||||
| 68356-0D030 |
NSP170,ZSP170 |
1 | ||
| 68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH | ||||
| 68360-0D030 |
NSP170,ZSP170 |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-0D020 |
NSP170,ZSP170 |
1 | ||
| 68391A - CUSHION, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68391-28040 |
NSP170,ZSP170 |
1 | ||
| 69413A - STOP, FRONT SLIDE DOOR DOWN MALE | ||||
| 69046-52010 |
NSP170,ZSP170 |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-52010 |
NSP170,ZSP170 |
2 | ||
| 69418G - CUSHION, SLIDE DOOR OPEN STOPPER, LH | ||||
| 69417-52010 |
NSP170,ZSP170 |
1 | ||
| 69419 - STOP, SLIDE DOOR OPEN, LH | ||||
| 69419-52010 |
NSP170,ZSP170 |
1 | ||
| 69804B - REGULATOR SUB-ASSY, SLIDE DOOR WINDOW, LH | ||||
| 69804-0D220 |
NSP170,ZSP170 |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-02130 |
NSP170,ZSP170 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
NSP170,ZSP170 |
2 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-0D380 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-06333 | ||||
| 90105-08187 | ||||
| 90105-08291 | ||||
| 90119-06779 | ||||
| 90119-06782 | ||||
| 90119-06911 | ||||
| 90148-80049 | ||||
| 90168-50040 | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 6705 | ||||

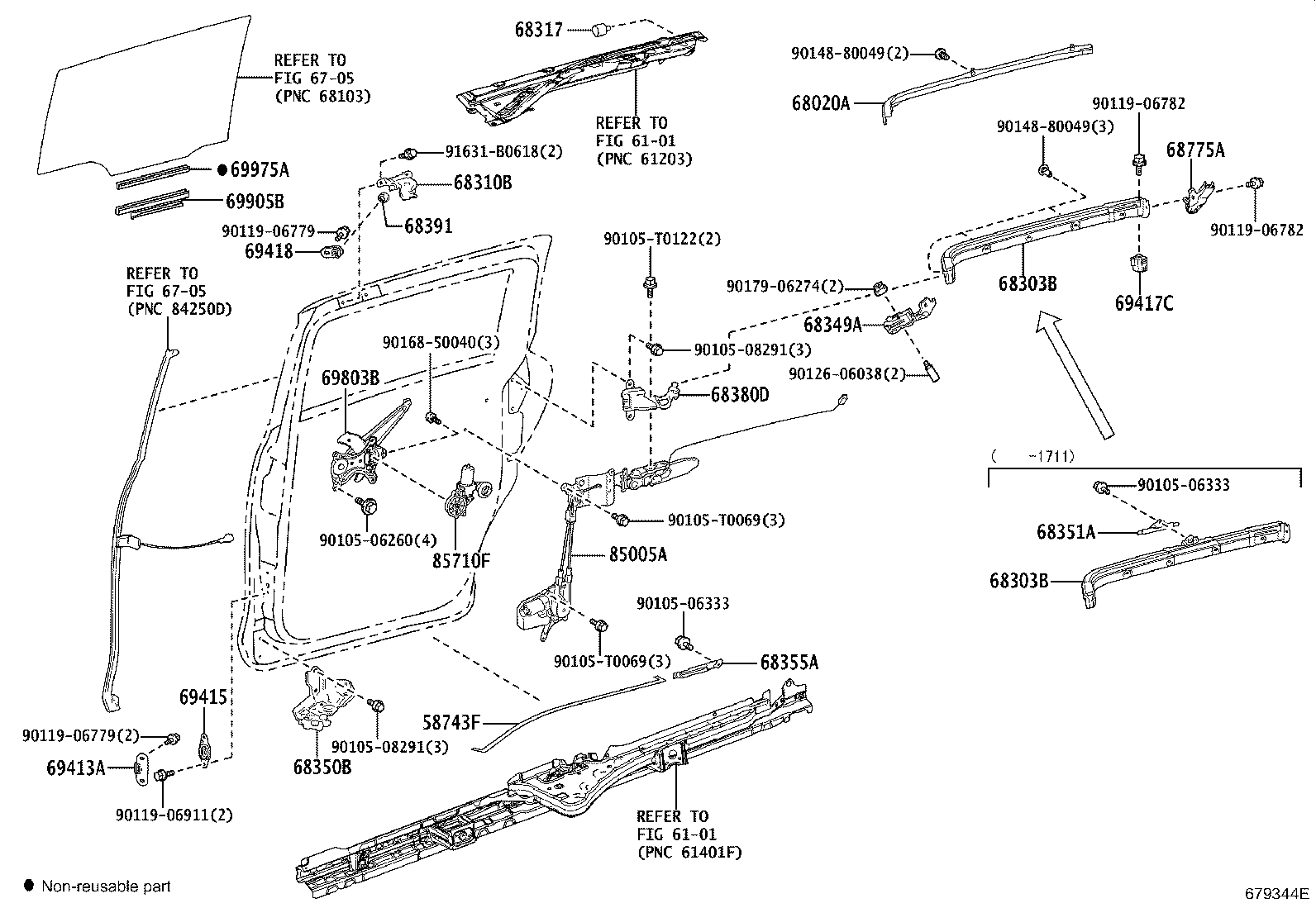

ILLUST NO. 2 OF 2(1611- )N,Q,U,W
W(POWER SLIDE DOOR) RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58743F - PROTECTOR, SLIDE DOOR PANEL, RH | ||||
| 58743-52020 |
NSP170,ZSP170 |
1 | ||
| 68020A - GUIDE ASSY, SLIDE DOOR CABLE, RH | ||||
| 68020-52030 |
ZSP170..Q,U |
1 | ||
| 68020-52030 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-52030 |
NSP170,ZSP170..D,N |
1 | ||
| 68303-52040 |
ZSP170..Q,U |
1 | ||
| 68303-0D041 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303-52040 |
ZSP170..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303-0D031 |
NSP170,ZSP170..D,N |
1 | ||
| 68303-0D041 |
ZSP170..Q,U |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-52030 |
NSP170,ZSP170..D,N |
1 | ||
| 68303-52040 |
ZSP170..Q,U |
1 | ||
| 68303-0D041 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303-52040 |
ZSP170..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303-0D031 |
NSP170,ZSP170..D,N |
1 | ||
| 68303-0D041 |
ZSP170..Q,U |
1 | ||
| 68310B - ROLLER ASSY, SLIDE DOOR, UPPER RH | ||||
| 68310-0D010 |
NSP170,ZSP170 |
1 | ||
| 68317 - STOPPER, SLIDE DOOR UPPER RAIL, RH | ||||
| 68317-0D010 |
NSP170,ZSP170 |
1 | ||
| 68349A - BRACKET, SLIDE DOOR CENTER RAIL, RH | ||||
| 68765-0D020 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68765-0D020 |
ZSP170..Q,U |
1 | ||
| 68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH | ||||
| 68350-0D030 |
NSP170,ZSP170 |
1 | ||
| 68351A - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 RH | ||||
| 68351-52020 |
NSP170,ZSP170 |
1 | ||
| 68355A - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH | ||||
| 68355-0D020 |
NSP170,ZSP170 |
1 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-0D020 |
NSP170,ZSP170 |
1 | ||
| 68391 - CUSHION, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68391-28040 |
NSP170,ZSP170 |
1 | ||
| 68775A - BRACKET, SLIDE DOOR, CENTER NO.2 RH | ||||
| 68775-0D020 |
ZSP170..Q,U |
1 | ||
| 68775-0D020 |
ZSP170..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68775-0D021 |
ZSP170..Q,U |
1 | ||
| 68775-0D021 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 69413A - STOP, FRONT SLIDE DOOR DOWN MALE | ||||
| 69046-52010 |
NSP170,ZSP170 |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-52010 |
NSP170,ZSP170 |
2 | ||
| 69417C - CUSHION, SLIDE DOOR OPEN STOPPER, RH | ||||
| 69417-52020 |
NSP170,ZSP170 |
1 | ||
| 69418 - STOP, SLIDE DOOR OPEN | ||||
| 69418-52010 |
NSP170,ZSP170 |
1 | ||
| 69803B - REGULATOR SUB-ASSY, SLIDE DOOR WINDOW, RH | ||||
| 69803-0D220 |
NSP170,ZSP170 |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-02130 |
NSP170,ZSP170 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
NSP170,ZSP170 |
2 | ||
| 85005A - MOTOR UNIT, SLIDE DOOR, RH | ||||
| 85005-52092 |
ZSP170..Q,U |
1 | ||
| 85005-52091 |
ZSP170..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 85005-52093 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 85005-52093 |
ZSP170..Q,U |
1 | ||
| 85005-52091 |
ZSP170..Q,U |
1 | ||
| 85005-52092 |
ZSP170..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-0D410 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-06333 | ||||
| 90105-08291 | ||||
| 90105-T0069 | ||||
| 90105-T0122 | ||||
| 90119-06779 | ||||
| 90119-06782 | ||||
| 90119-06911 | ||||
| 90126-06038 | ||||
| 90148-80049 | ||||
| 90168-50040 | ||||
| 90179-06274 | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 6705 | ||||

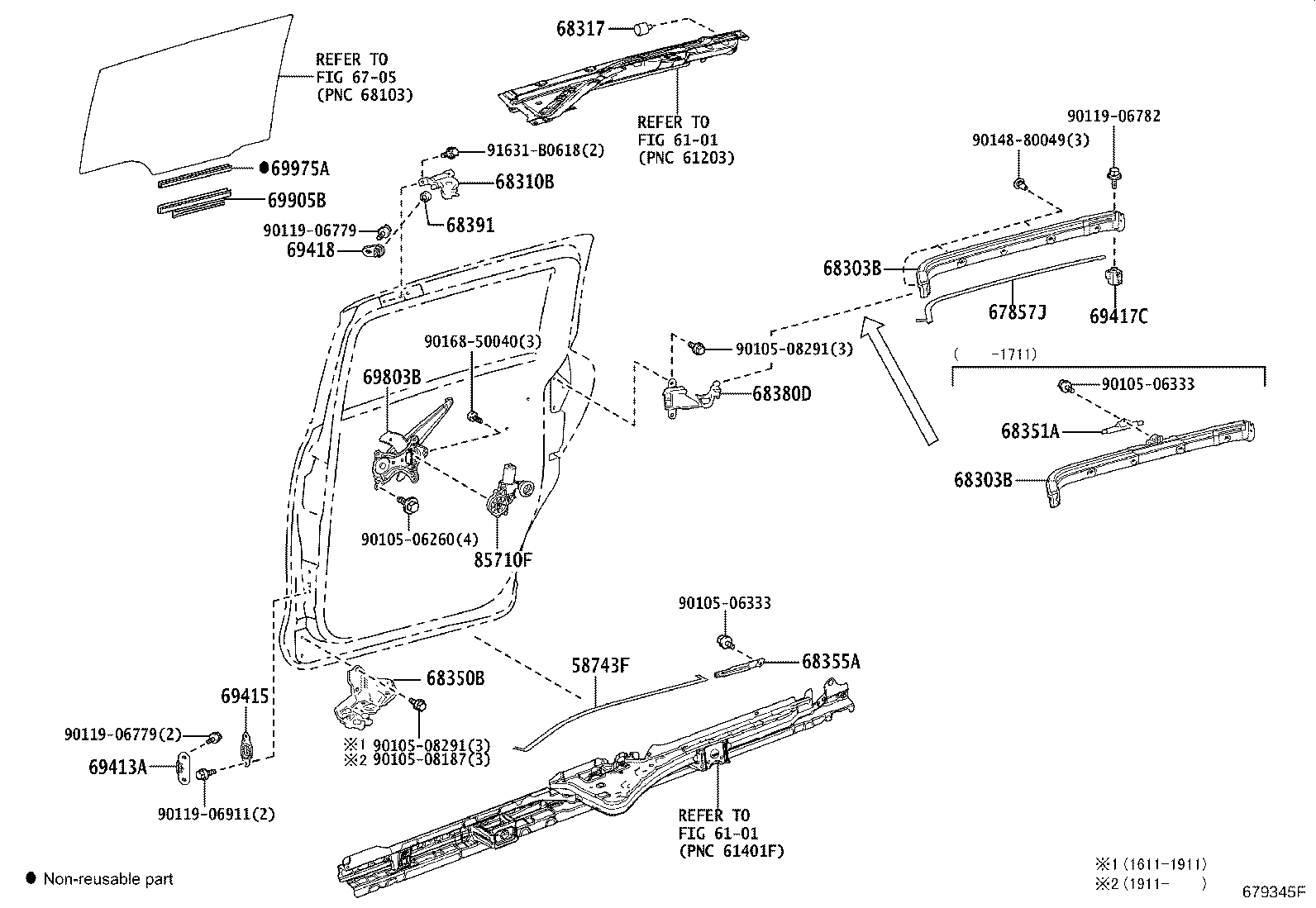

ILLUST NO. 2 OF 2(1611- )D,N,W
W/O(POWER SLIDE DOOR) RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58743F - PROTECTOR, SLIDE DOOR PANEL, RH | ||||
| 58743-52020 |
NSP170,ZSP170 |
1 | ||
| 67857J - PROTECTOR, SLIDE DOOR RAIL, RH | ||||
| 67857-52130 |
NSP170,ZSP170..D,N |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-52030 |
NSP170,ZSP170..D,N |
1 | ||
| 68303-52040 |
ZSP170..Q,U |
1 | ||
| 68303-0D041 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303-52040 |
ZSP170..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303-0D031 |
NSP170,ZSP170..D,N |
1 | ||
| 68303-0D041 |
ZSP170..Q,U |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-52030 |
NSP170,ZSP170..D,N |
1 | ||
| 68303-52040 |
ZSP170..Q,U |
1 | ||
| 68303-0D041 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303-52040 |
ZSP170..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)) |
1 | ||
| 68303-0D031 |
NSP170,ZSP170..D,N |
1 | ||
| 68303-0D041 |
ZSP170..Q,U |
1 | ||
| 68310B - ROLLER ASSY, SLIDE DOOR, UPPER RH | ||||
| 68310-0D010 |
NSP170,ZSP170 |
1 | ||
| 68317 - STOPPER, SLIDE DOOR UPPER RAIL, RH | ||||
| 68317-0D010 |
NSP170,ZSP170 |
1 | ||
| 68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH | ||||
| 68350-0D030 |
NSP170,ZSP170 |
1 | ||
| 68351A - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 RH | ||||
| 68351-52020 |
NSP170,ZSP170 |
1 | ||
| 68355A - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH | ||||
| 68355-0D020 |
NSP170,ZSP170 |
1 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-0D020 |
NSP170,ZSP170 |
1 | ||
| 68391 - CUSHION, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68391-28040 |
NSP170,ZSP170 |
1 | ||
| 69413A - STOP, FRONT SLIDE DOOR DOWN MALE | ||||
| 69046-52010 |
NSP170,ZSP170 |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-52010 |
NSP170,ZSP170 |
2 | ||
| 69417C - CUSHION, SLIDE DOOR OPEN STOPPER, RH | ||||
| 69417-52020 |
NSP170,ZSP170 |
1 | ||
| 69418 - STOP, SLIDE DOOR OPEN | ||||
| 69418-52010 |
NSP170,ZSP170 |
1 | ||
| 69803B - REGULATOR SUB-ASSY, SLIDE DOOR WINDOW, RH | ||||
| 69803-0D220 |
NSP170,ZSP170 |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-02130 |
NSP170,ZSP170 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-52010 |
NSP170,ZSP170 |
2 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-0D410 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-06333 | ||||
| 90105-08187 | ||||
| 90105-08291 | ||||
| 90119-06779 | ||||
| 90119-06782 | ||||
| 90119-06911 | ||||
| 90148-80049 | ||||
| 90168-50040 | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 6705 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
