ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

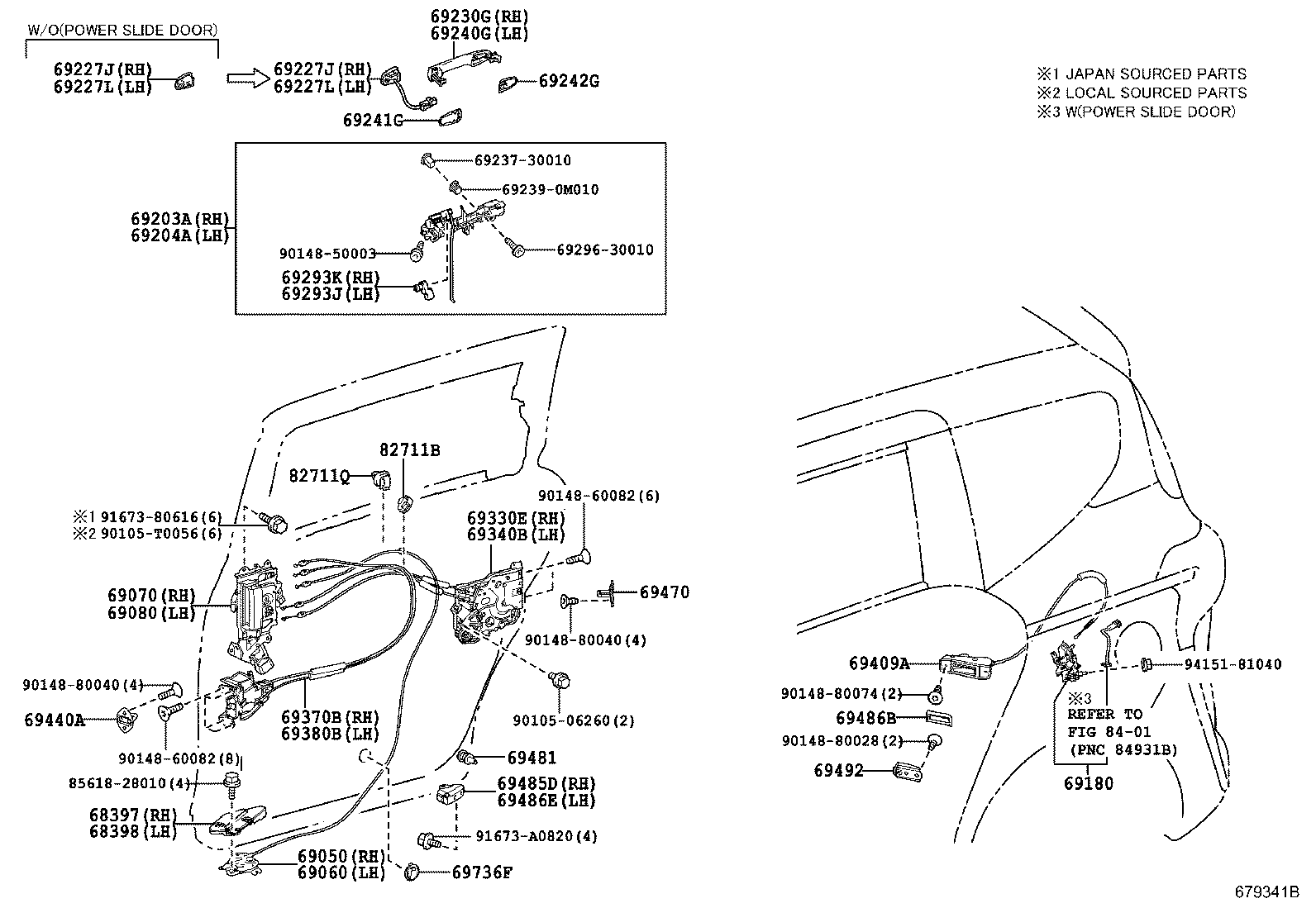

Click highlighted areas on diagram

diagram 68397 68398 69050 69060 69070 69080 69180 69203A 69204A 69227J 69227J 69227L 69227L 69230G 6923730010 692390M010 69240G 69241G 69242G 69293J 69293K 6929630010 69330E 69340B 69370B 69380B 69409A 69440A 69470 69481 69485D 69486B 69486E 69492 69736F 82711B 82711Q 8401 8561828010 9010506260 90105T0056 9014850003 9014860082 9014860082 9014880028 9014880040 9014880040 9014880074 9167380616 91673A0820 9415181040
Part # Description Qty Price
68397 - COVER, SLIDE DOOR LOWER ROLLER, RH
68397-52010

NSP170,ZSP170

 1
68398 - COVER, SLIDE DOOR LOWER ROLLER, LH
68398-52010

NSP170,ZSP170

 1
69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69050-52280

NSP170,ZSP170

 1
69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69060-52310

NSP170,ZSP170

 1
69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH
69070-0D040C0

ZSP170..Q,U

BLACK,TRIM0#,2#

 1
69070-0D030C0

ZSP170..N

BLACK,TRIM0#,2#

 1
69070-0D040C0

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),BLACK,TRIM0#,2#

 1
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-0D040C0

ZSP170..N;ZSP170..05S..Q

BLACK,TRIM0#,2#

 1
69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-0D020

ZSP170..05S..Q;NSP170,ZSP170..D,N

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0D170

NSP170,ZSP170

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0D170

NSP170,ZSP170

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-28080A1

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),SUPER WHITE 2,040

 1
69217-0D923

NSP170,ZSP170..D,N

LESS COLOR

 1
69227-28080C3

ZSP170..Q,U

BLACK MC.,209

 1
69227-28080B0

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),SILVER ME.,1F7

 1
69227-28080C3

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),BLACK MC.,209

 1
69227-28080B1

ZSP170..Q,U

GRAY ME.,1G3

 1
69227-28080F2

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),AIR YELLOW,5B6

 1
69227-28080A1

ZSP170..Q,U

SUPER WHITE 2,040

 1
69227-28080F2

ZSP170..Q,U

AIR YELLOW,5B6

 1
69227-28080B0

ZSP170..Q,U

SILVER ME.,1F7

 1
69227-28080D3

ZSP170..Q,U

RED M.M.,3R3

 1
69227-28080D3

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),RED M.M.,3R3

 1
69227-28080B1

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),GRAY ME.,1G3

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-28080A1

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),SUPER WHITE 2,040

 1
69217-0D923

NSP170,ZSP170..D,N

LESS COLOR

 1
69227-28080C3

ZSP170..Q,U

BLACK MC.,209

 1
69227-28080B0

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),SILVER ME.,1F7

 1
69227-28080C3

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),BLACK MC.,209

 1
69227-28080B1

ZSP170..Q,U

GRAY ME.,1G3

 1
69227-28080F2

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),AIR YELLOW,5B6

 1
69227-28080A1

ZSP170..Q,U

SUPER WHITE 2,040

 1
69227-28080F2

ZSP170..Q,U

AIR YELLOW,5B6

 1
69227-28080B0

ZSP170..Q,U

SILVER ME.,1F7

 1
69227-28080D3

ZSP170..Q,U

RED M.M.,3R3

 1
69227-28080D3

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),RED M.M.,3R3

 1
69227-28080B1

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),GRAY ME.,1G3

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69217-0D923

ZSP170..05S..Q;NSP170,ZSP170..D,N

LESS COLOR

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69217-0D923

ZSP170..05S..Q;NSP170,ZSP170..D,N

LESS COLOR

 1
69230G - HANDLE ASSY, SLIDE DOOR OUTSIDE, RH
69213-0D901

NSP170,ZSP170

 1
69240G - HANDLE ASSY, SLIDE DOOR, OUTSIDE LH
69213-0D901

NSP170,ZSP170

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242-0D140

NSP170,ZSP170

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69241-0D210

NSP170,ZSP170

 2
69293J - SNAP, REAR DOOR OUTSIDE HANDLE, LH
69293-0D140

NSP170,ZSP170

 1
69293K - SNAP, REAR DOOR OUTSIDE HANDLE, RH
69293-0D130

NSP170,ZSP170

 1
69330E - LOCK ASSY, SLIDE DOOR, RH
69200-0D030

NSP170,ZSP170..D,N

 1
69200-0D040

ZSP170..Q,U

 1
69200-0D040

ZSP170..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

 1
69200-0D042

ZSP170..Q,U

 1
69200-0D042

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

 1
69200-0D041

ZSP170..Q,U

 1
69200-0D032

NSP170,ZSP170..D,N

 1
69200-0D041

ZSP170..05S..N

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

 1
69200-0D031

NSP170,ZSP170..D,N

 1
69340B - LOCK ASSY, SLIDE DOOR, LH
69300-0D031

ZSP170..05S..Q;NSP170,ZSP170..D,N

 1
69300-0D032

ZSP170..05S..Q;NSP170,ZSP170..D,N

 1
69300-0D030

NSP170,ZSP170..D,N,Q

 1
69370B - LOCK ASSY, SLIDE DOOR, FRONT RH
69370-0D010

NSP170,ZSP170

 1
69380B - LOCK ASSY, SLIDE DOOR, FRONT LH
69380-0D010

NSP170,ZSP170

 1
69409A - STOPPER SUB-ASSY, SLIDE DOOR HALF OPEN
69409-0D020

NSP170,ZSP170

 1
69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-0D020

NSP170,ZSP170

 2
69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470-0D010

NSP170,ZSP170

 2
69481 - LATCH, SLIDE DOOR OPEN
69481-52030

NSP170,ZSP170

 2
69485D - STRIKER, SLIDE DOOR OPEN, RH
69485-52030

NSP170,ZSP170

 1
69486B - COVER, SLIDE DOOR HALF OPEN STOPPER
69486-46010

NSP170,ZSP170

 1
69486E - STRIKER, SLIDE DOOR OPEN, LH
69486-52050

NSP170,ZSP170

 1
69492 - STOPPER, SLIDE DOOR HALF OPEN
69492-0D020

NSP170,ZSP170

 1
69736F - GUIDE, SLIDE DOOR LOCKING LINK
69736-0D020

NSP170,ZSP170

 2
82711B - CLAMP, WIRING HARNESS
82711-16790

NSP170,ZSP170

 2
82711Q - CLAMP, WIRING HARNESS
82711-1E300

NSP170,ZSP170

 2
Common parts
69237-30010
69239-0M010
69296-30010
85618-28010
90105-06260
90105-T0056
90148-50003
90148-60082
90148-80028
90148-80040
90148-80074
91673-80616
91673-A0820
94151-81040
Linked diagrams
8401
