ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

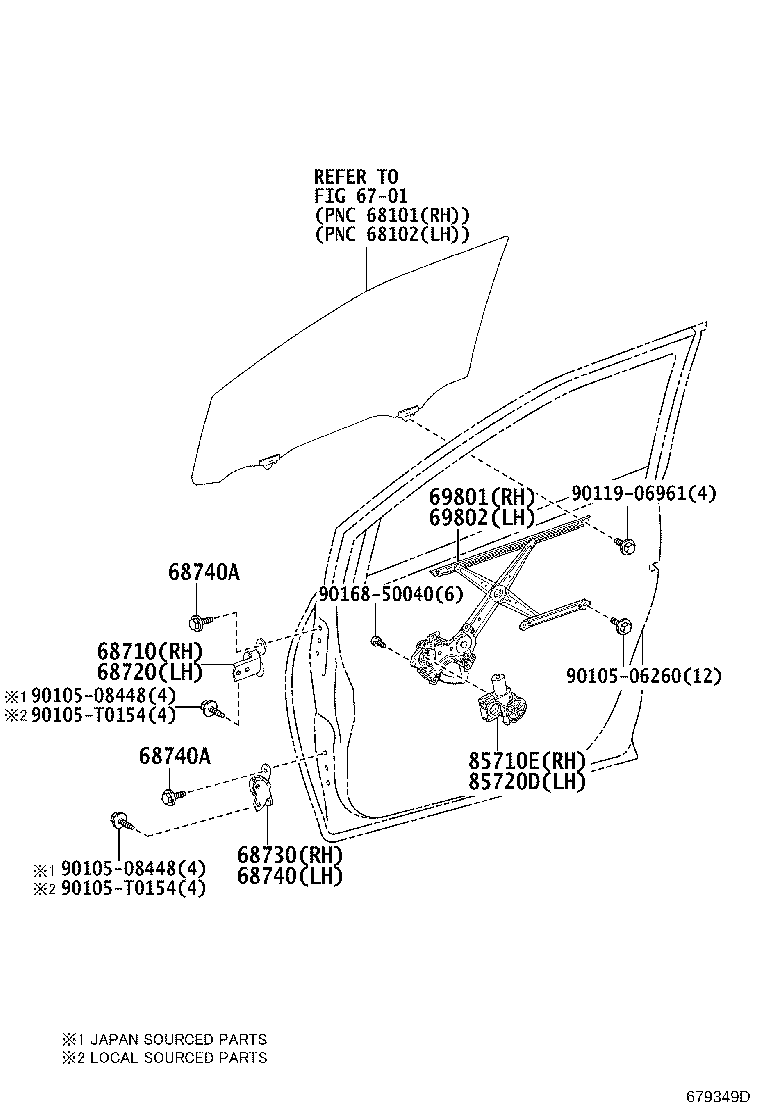

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 68740A 68740A 69801 69802 85710E 85720D 9010506260 9010508448 9010508448 90105T0154 90105T0154 9011906961 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0D050

NSP170,ZSP170

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-0D050

NSP170,ZSP170

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02100

NSP170,ZSP170

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02100

NSP170,ZSP170

 1
68740A - BOLT(FOR FRONT DOOR HINGE)
90105-T0076

NSP170,ZSP170

LOCAL SOURCED PARTS

 8
90105-08291

NSP170,ZSP170

JAPAN SOURCED PARTS

 8
68740A - BOLT(FOR FRONT DOOR HINGE)
90105-T0076

NSP170,ZSP170

LOCAL SOURCED PARTS

 8
90105-08291

NSP170,ZSP170

JAPAN SOURCED PARTS

 8
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-02340

NSP170,ZSP170

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-02350

NSP170,ZSP170

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0D380

NSP170,ZSP170

 1
85710-0D510

NSP170,ZSP170

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0D540

NSP170,ZSP170

 1
85720-0D510

NSP170,ZSP170

 1
Common parts
90105-06260
90105-08448
90105-T0154
90119-06961
90168-50040
Linked diagrams
6701
