ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

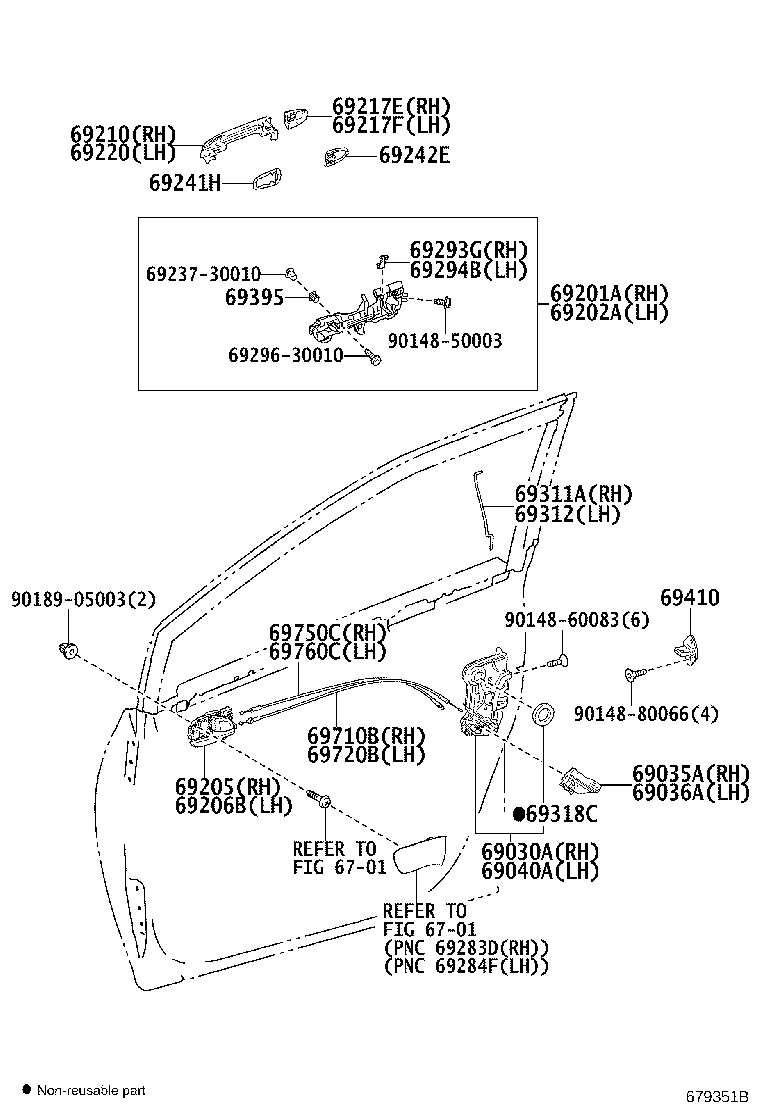

Click highlighted areas on diagram

diagram 6701 6701 69030A 69035A 69036A 69040A 69201A 69202A 69205 69206B 69210 69217E 69217F 69220 6923730010 69241H 69242E 69293G 69294B 6929630010 69311A 69312 69318C 69395 69410 69710B 69720B 69750C 69760C 9014850003 9014860083 9014880066 9018905003
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-02580

NSP170,ZSP170

 1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-02050

NSP170,ZSP170

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-02050

NSP170,ZSP170

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-02560

NSP170,ZSP170

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-0D200

NSP170,ZSP170

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-0D190

NSP170,ZSP170

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-28170C0

ZSP170..N

BLACK,TRIM0#,2#

 1
69205-28170C3

ZSP170..N

BLACK,TRIM0#,2#

 1
69205-0D480C0

ZSP170..Q,U

BLACK & CHROME,TRIM0#,2#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-28150C0

ZSP170..N

BLACK,TRIM0#,2#

 1
69206-0D480C0

ZSP170..Q,U

BLACK & CHROME,TRIM0#,2#

 1
69206-28150C3

ZSP170..N

BLACK,TRIM0#,2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-28090A1

NSP170,ZSP170

SUPER WHITE 2,040

 1
69210-28090B0

NSP170,ZSP170

SILVER ME.,1F7

 1
69210-28090C4

NSP170,ZSP170

BLACK MC.,209

 1
69210-28090F1

NSP170,ZSP170

AIR YELLOW,5B6

 1
69210-28090D5

NSP170,ZSP170

RED M.M.,3R3

 1
69210-28090B2

NSP170,ZSP170

GRAY ME.,1G3

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-0D923

NSP170,ZSP170

LESS COLOR

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-0D922

NSP170,ZSP170

LESS COLOR

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-28090C4

NSP170,ZSP170

BLACK MC.,209

 1
69210-28090B2

NSP170,ZSP170

GRAY ME.,1G3

 1
69210-28090A1

NSP170,ZSP170

SUPER WHITE 2,040

 1
69210-28090D5

NSP170,ZSP170

RED M.M.,3R3

 1
69210-28090B0

NSP170,ZSP170

SILVER ME.,1F7

 1
69210-28090F1

NSP170,ZSP170

AIR YELLOW,5B6

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-0D210

NSP170,ZSP170

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-0D140

NSP170,ZSP170

 2
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-0B060

NSP170,ZSP170

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-0B050

NSP170,ZSP170

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-0D190

NSP170,ZSP170

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-0D190

NSP170,ZSP170

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

NSP170,ZSP170

 2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69239-0M010

NSP170,ZSP170

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-02040

NSP170,ZSP170

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-52240

NSP170,ZSP170

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-52240

NSP170,ZSP170

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-52160

NSP170,ZSP170

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-52160

NSP170,ZSP170

 1
Common parts
69237-30010
69296-30010
90148-50003
90148-60083
90148-80066
90189-05003
Linked diagrams
6701
