ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
ILLUST NO. 1 OF 2(1611- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0D410 |
NSP170,ZSP170 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
NSP170,ZSP170 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0D420 |
NSP170,ZSP170 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-0D120 |
NSP170,ZSP170 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-0D120 |
NSP170,ZSP170 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-0D110 |
NSP170,ZSP170 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-0D110 |
NSP170,ZSP170 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0D170 |
NSP170,ZSP170 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0D170 |
NSP170,ZSP170 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-0D050 |
NSP170,ZSP170 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-0D050 |
NSP170,ZSP170 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0D380 |
NSP170,ZSP170 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0D260 |
NSP170,ZSP170 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0D240 |
NSP170,ZSP170 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0D240 |
NSP170,ZSP170 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NSP170,ZSP170 |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NSP170,ZSP170 |
20 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-0D240 |
NSP170,ZSP170 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-0D250 |
NSP170,ZSP170 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-0D500 |
NSP170,ZSP170 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-0D500 |
NSP170,ZSP170 |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-0D090 |
NSP170,ZSP170 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-0D080 |
NSP170,ZSP170 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0D310 |
NSP170,ZSP170 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0D270 |
NSP170,ZSP170 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-0D350 |
NSP170,ZSP170 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-0D350 |
NSP170,ZSP170 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-0D070 |
NSP170,ZSP170 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-0D070 |
NSP170,ZSP170 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-0D230 |
NSP170,ZSP170 |
2 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90119-T0141 | ||||
| 90119-T0262 | ||||
| 90151-50026 | ||||
| 90151-T0003 | ||||
| 90333-01008 | ||||
| 90333-35004 | ||||
| 90950-01620 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 7503 | ||||

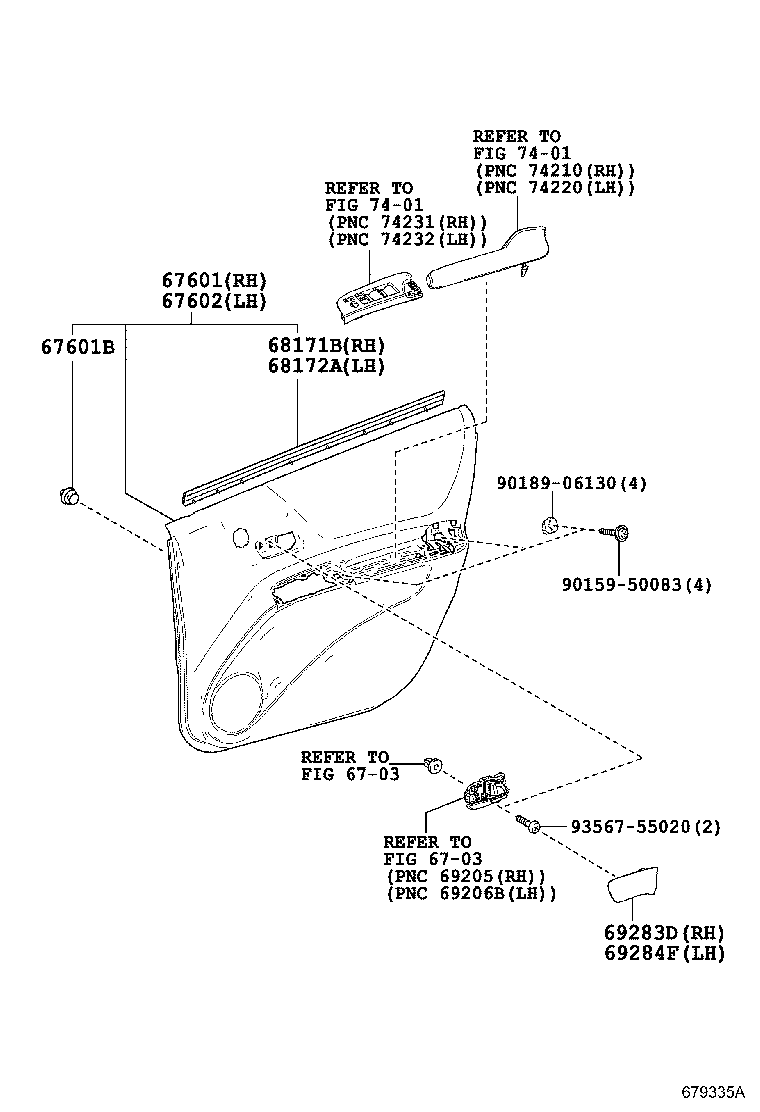

ILLUST NO. 2 OF 2(1611- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0DR30C0 |
ZSP170..Q,U BLACK/FROMAGE,TRIM0# |
1 | ||
| 67610-0DR20C0 |
ZSP170..N BLACK/FROMAGE,TRIM0# |
1 | ||
| 67610-0DR30C1 |
ZSP170..Q,U BLACK/BLACK,TRIM2# |
1 | ||
| 67610-0DR20C1 |
NSP170,ZSP170..D,N BLACK/BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NSP170,ZSP170 |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0DR30C0 |
ZSP170..Q,U BLACK/FROMAGE,TRIM0# |
1 | ||
| 67620-0DR30C1 |
ZSP170..Q,U BLACK/BLACK,TRIM2# |
1 | ||
| 67620-0DR20C0 |
ZSP170..N BLACK/FROMAGE,TRIM0# |
1 | ||
| 67620-0DR20C1 |
NSP170,ZSP170..D,N BLACK/BLACK,TRIM2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0D310 |
NSP170,ZSP170 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0D310 |
NSP170,ZSP170 |
1 | ||
| 69283D - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30060C1 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 69283-30060A2 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 69283-30060C2 |
ZSP170..Q,U BLACK,TRIM2# |
1 | ||
| 69283-30060C2 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 69284F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30060C1 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 69284-30060C2 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 69284-30060A2 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 69284-30060C2 |
ZSP170..Q,U BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90189-06130 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
