ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
(1611-2012)05S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

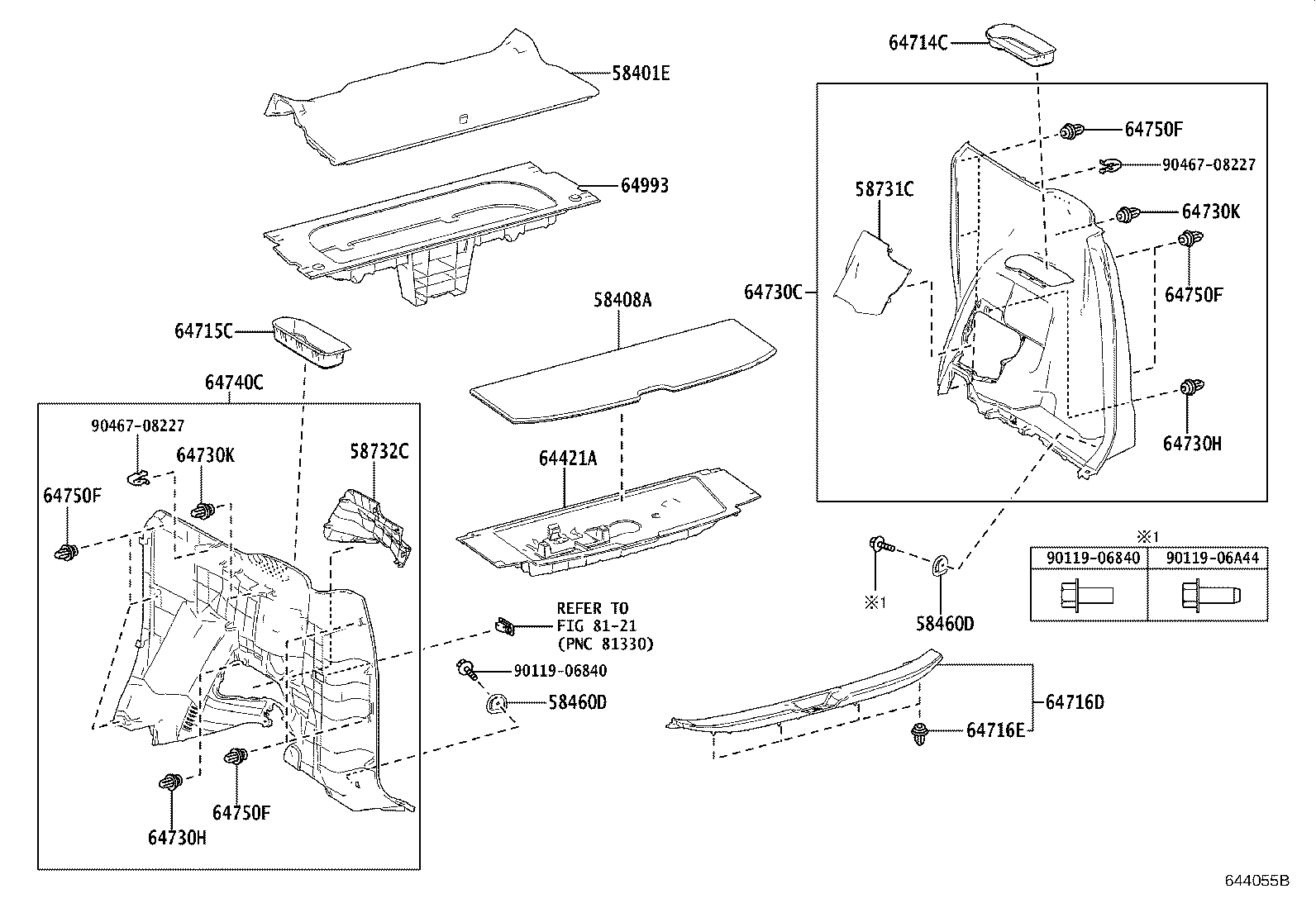

| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58401-0D020B0 |
ZSP170..05S GRAY,TRIM0#,2# |
1 | ||
| 58408A - BOARD SUB-ASSY, DECK, NO.2 | ||||
| 58408-0D030B0 |
ZSP170 GRAY,TRIM0#,2# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NSP170,ZSP170 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NSP170,ZSP170 |
2 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-0D070C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 58731-0D070A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-0D070C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 58732-0D070A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 64421A - TRAY, LUGGAGE COMPARTMENT | ||||
| 64421-0D020 |
NSP170,ZSP170 |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-0D090C0 |
NSP170,ZSP170..05S BLACK,TRIM2# |
1 | ||
| 64714-0D090A0 |
ZSP170..05S FROMAGE,TRIM0# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-0D120C0 |
NSP170,ZSP170..05S BLACK,TRIM2# |
1 | ||
| 64715-0D120A0 |
ZSP170..05S FROMAGE,TRIM0# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-0D220A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 64716-0D220C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NSP170,ZSP170 |
4 | ||
| 64730C - BOARD, DECK TRIM SIDE, RH | ||||
| 64730-0D460C0 |
NSP170,ZSP170..05S BLACK,TRIM2# |
1 | ||
| 64730-0D460A0 |
ZSP170..05S FROMAGE,TRIM0# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09232 |
NSP170,ZSP170..05S RED |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09232 |
NSP170,ZSP170..05S RED |
1 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10188 |
NSP170,ZSP170 BLUE |
2 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10188 |
NSP170,ZSP170 BLUE |
2 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0D460A0 |
ZSP170..05S FROMAGE,TRIM0# |
1 | ||
| 64740-0D460C0 |
NSP170,ZSP170..05S BLACK,TRIM2# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NSP170,ZSP170 |
10 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NSP170,ZSP170 |
10 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NSP170,ZSP170 |
10 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NSP170,ZSP170 |
10 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-0D050 |
NSP170,ZSP170..05S |
1 | ||
| Common parts | ||||
| 90119-06840 | ||||
| 90119-06A44 | ||||
| 90467-08227 | ||||
| Linked diagrams | ||||
| 8121 | ||||
