ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-1911)05S

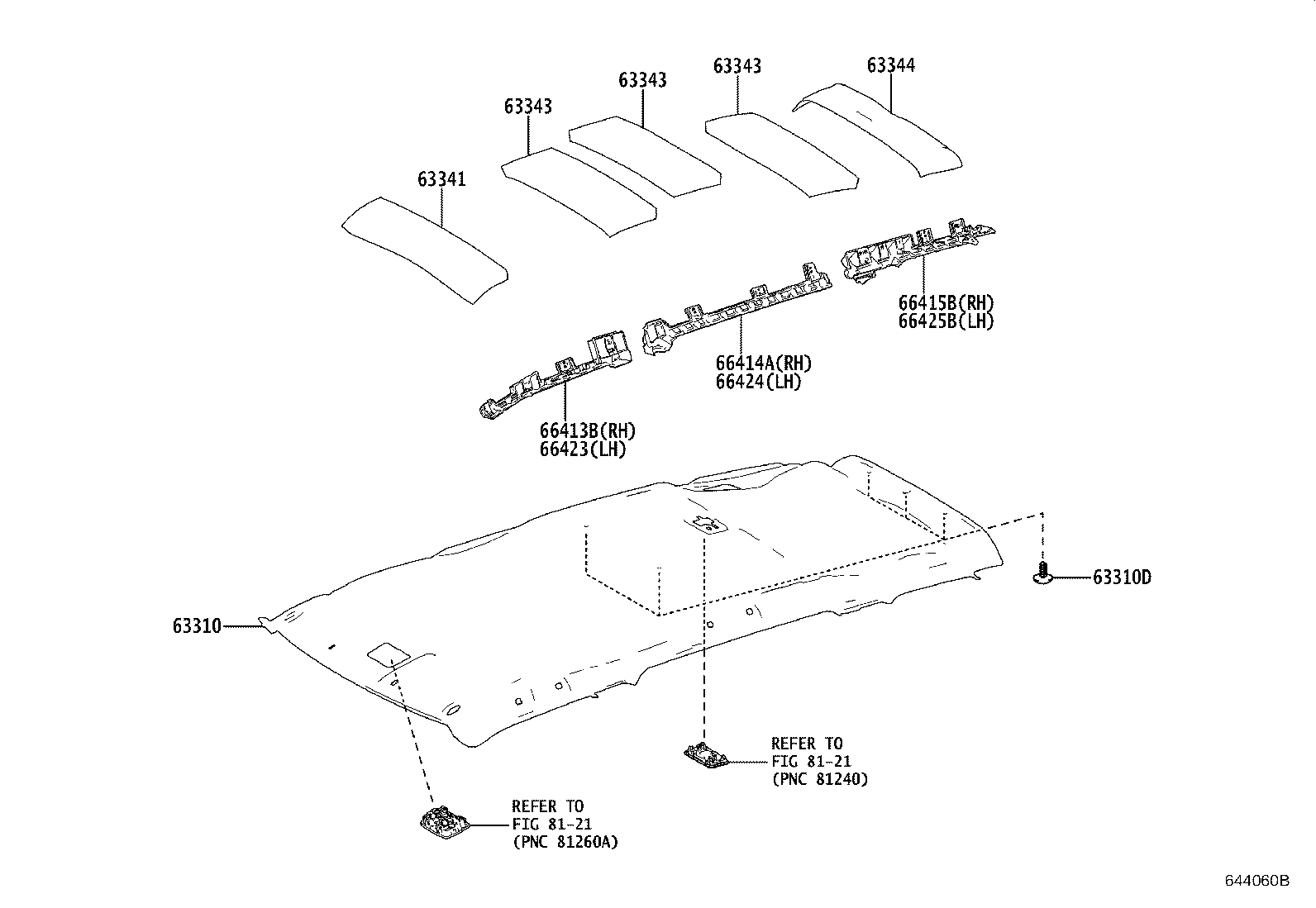

Click highlighted areas on diagram

diagram 63310 63310D 63341 63343 63343 63343 63344 66413B 66414A 66415B 66423 66424 66425B 8121 8121
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0DB70B0

ZSP170..05S

GRAY,TRIM0#,2#

 1
63310D - CLIP, ROOF HEADLINING
90467-05164B0

ZSP170

LT.GRAY,TRIM0#,2#

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-0D480

NSP170,ZSP170..05S

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-0D370

NSP170,ZSP170..05S

 3
63343 - PAD, ROOF SILENCER, NO.3
63343-0D370

NSP170,ZSP170..05S

 3
63343 - PAD, ROOF SILENCER, NO.3
63343-0D370

NSP170,ZSP170..05S

 3
63344 - PAD, ROOF SILENCER, NO.4
63344-0D060

NSP170,ZSP170..05S

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-0D340

NSP170,ZSP170..05S

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0D380

NSP170,ZSP170..05S

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0D080

NSP170,ZSP170..05S

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-0D310

NSP170,ZSP170..05S

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0D380

NSP170,ZSP170..05S

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-0D080

NSP170,ZSP170..05S

 1
Linked diagrams
8121
