ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)

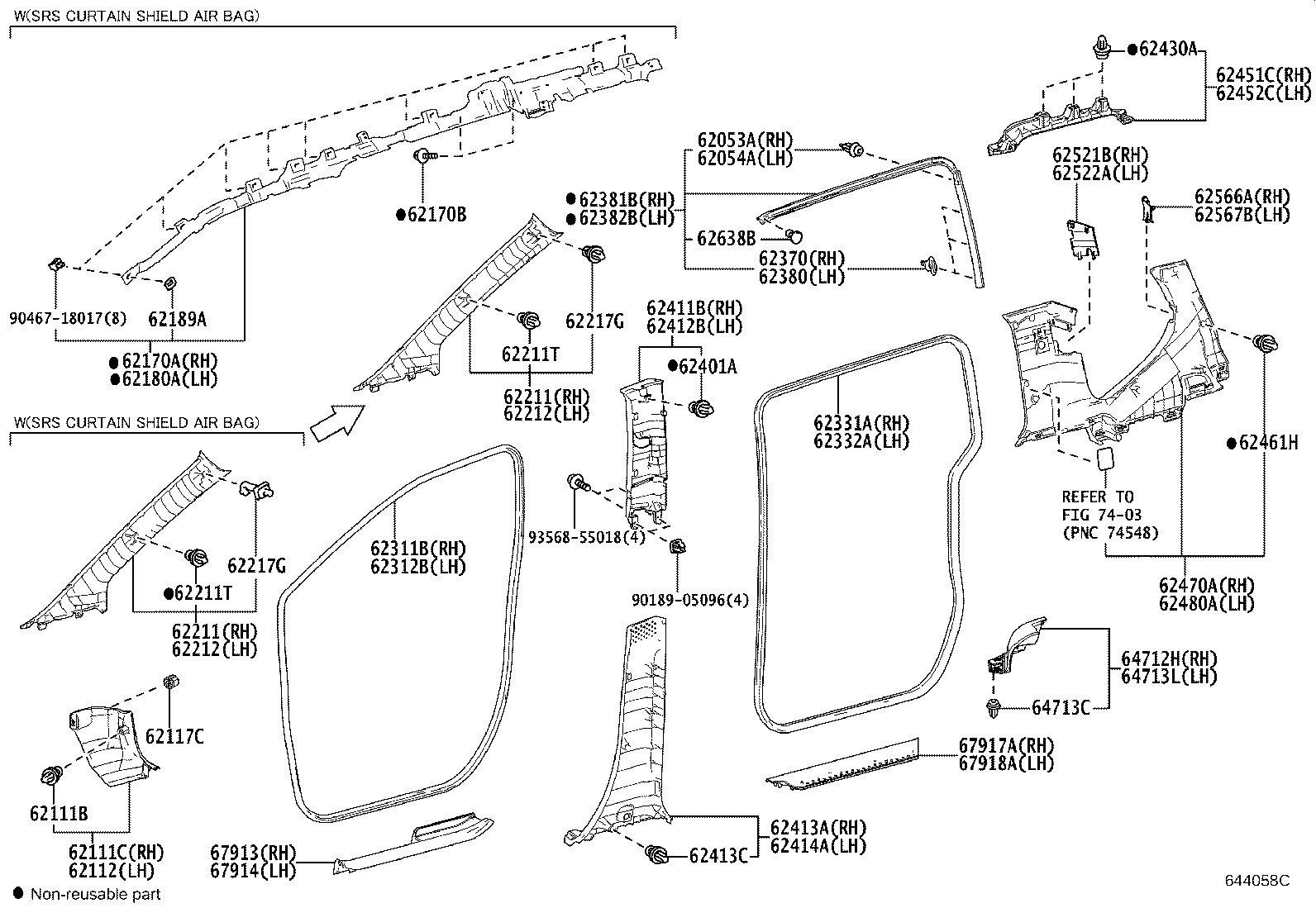

ILLUST NO. 1 OF 2(1611-1911)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62053A - RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH | ||||
| 67867-48030 |
NSP170,ZSP170 |
1 | ||
| 62054A - RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH | ||||
| 67867-48030 |
NSP170,ZSP170 |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NSP170,ZSP170 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-0D240C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-0D280C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NSP170,ZSP170 |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-0D580B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-0D580B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
NSP170,ZSP170 |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
NSP170,ZSP170 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-0D580B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-0D580B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
NSP170,ZSP170..05S |
2 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
NSP170,ZSP170..05S |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-0D240 |
NSP170,ZSP170 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-0D210 |
NSP170,ZSP170 |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-0D380 |
NSP170,ZSP170 |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-0D380 |
NSP170,ZSP170 |
1 | ||
| 62370 - RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH | ||||
| 67867-12150 |
NSP170,ZSP170 |
3 | ||
| 62380 - RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH | ||||
| 67867-12150 |
NSP170,ZSP170 |
5 | ||
| 62381B - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-0D080 |
NSP170,ZSP170 |
1 | ||
| 62382B - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-0D080 |
NSP170,ZSP170 |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10188 |
NSP170,ZSP170 |
2 | ||
| 90467-10161 |
NSP170,ZSP170 |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-0D330B0 |
ZSP170 LT.GRAY,TRIM0#,2# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-0D330B0 |
ZSP170 LT.GRAY,TRIM0#,2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-0D310C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
NSP170,ZSP170 |
10 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-0D310C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90467-10161 |
NSP170,ZSP170 |
6 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-0D040B0 |
ZSP170 LT.GRAY,TRIM0#,2# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-0D040B0 |
ZSP170 LT.GRAY,TRIM0#,2# |
1 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-10161 |
NSP170,ZSP170 |
14 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-0D040B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-0D040B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-0D010B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-0D010B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62566A - COVER, REAR PILLAR, RH | ||||
| 62566-0D010B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62567B - COVER, REAR PILLAR, LH | ||||
| 62567-0D010B0 |
ZSP170..05S LT.GRAY,TRIM0#,2# |
1 | ||
| 62638B - CLIP | ||||
| 90467-06084 |
NSP170,ZSP170 |
2 | ||
| 64712H - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-0D060C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 64713C - CLIP, DECK SIDE TRIM COVER | ||||
| 90467-09206 |
NSP170,ZSP170 |
2 | ||
| 64713L - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64713-0D060C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-0D240C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-0D230C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-0D170C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0D170C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90189-05096 | ||||
| 90467-18017 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 7403 | ||||

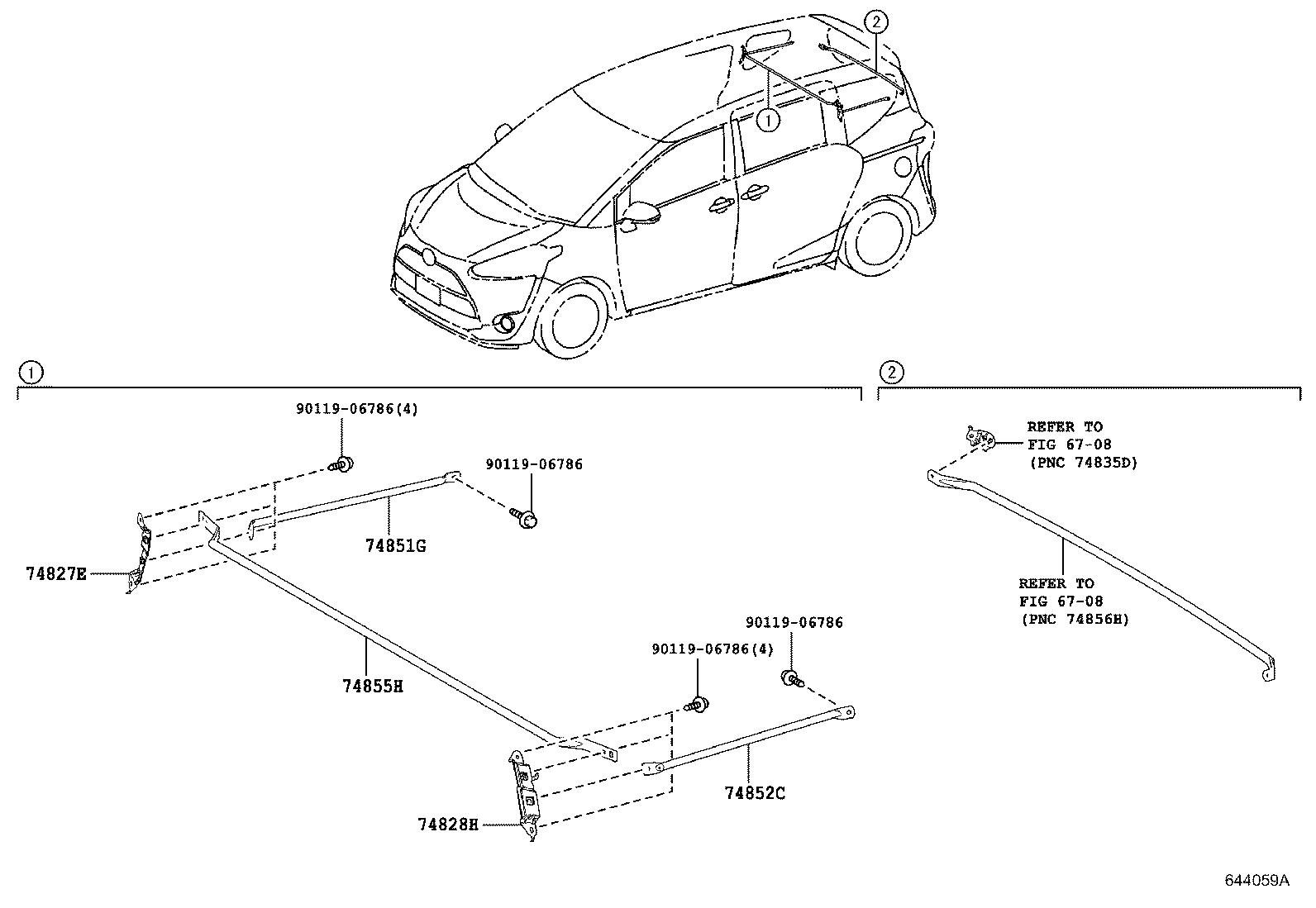

ILLUST NO. 2 OF 2(1611-1911)05S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74827E - BRACKET, SEPARATOR BAR, RH | ||||
| 74827-0D010 |
NSP170,ZSP170..05S |
1 | ||
| 74828H - BRACKET, SEPARATOR BAR, LH | ||||
| 74828-0D010 |
NSP170,ZSP170..05S |
1 | ||
| 74851G - BAR, SEPARATOR, NO.1 | ||||
| 74851-0D010 |
NSP170,ZSP170..05S |
1 | ||
| 74852C - BAR, SEPARATOR, NO.2 | ||||
| 74852-0D010 |
NSP170,ZSP170..05S |
1 | ||
| 74855H - BAR, SEPARATOR, NO.3 | ||||
| 74855-0D010 |
NSP170,ZSP170..05S |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| Linked diagrams | ||||
| 6708 | ||||
