ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

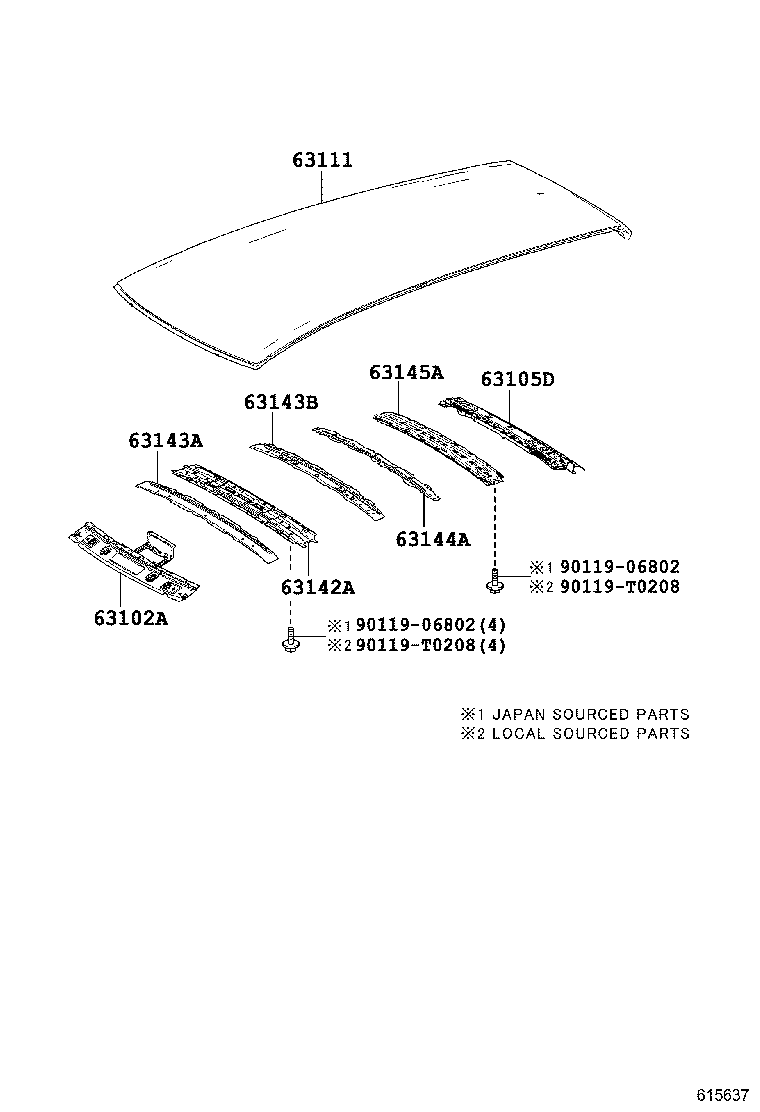

Click highlighted areas on diagram

diagram 63102A 63105D 63111 63142A 63143A 63143B 63144A 63145A 9011906802 9011906802 90119T0208 90119T0208
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-0D240

NSP170,ZSP170

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-0D200

NSP170,ZSP170

 1
63111 - PANEL, ROOF
63111-0D230

NSP170,ZSP170

 1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63103-0D060

NSP170,ZSP170

 1
63143A - REINFORCEMENT, ROOF PANEL
63143-0D180

NSP170,ZSP170

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63144-0D160

NSP170,ZSP170

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63148-0D060

NSP170,ZSP170

 1
63145A - REINFORCEMENT, ROOF PANEL, NO.5
63208-0D020

NSP170,ZSP170

 1
Common parts
90119-06802
90119-T0208
