ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

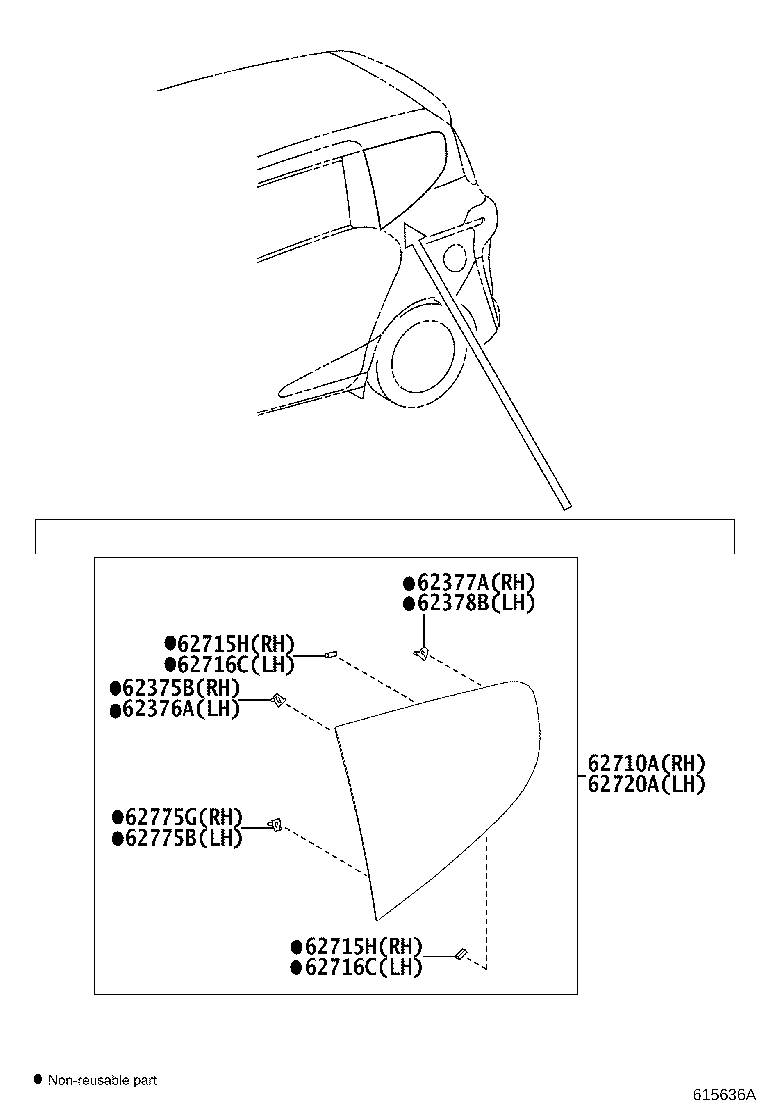

Click highlighted areas on diagram

diagram 62375B 62376A 62377A 62378B 62710A 62715H 62715H 62716C 62716C 62720A 62775B 62775G
Part # Description Qty Price
62375B - CLIP, SIDE WINDOW, NO.1
62775-0D120

NSP170,ZSP170

 1
62376A - CLIP, SIDE WINDOW, NO.2
62775-0D150

NSP170,ZSP170

 1
62377A - CLIP, SIDE WINDOW, NO.3
62775-0D110

NSP170,ZSP170

 1
62378B - CLIP, SIDE WINDOW, NO.4
62775-0D140

NSP170,ZSP170

 1
62710A - WINDOW ASSY, QUARTER, RH
62710-0D040

NSP170,ZSP170

 1
62715H - DAM, QUARTER WINDOW GLASS ADHESIVE, RH
68294-26030

NSP170,ZSP170

 2
62715H - DAM, QUARTER WINDOW GLASS ADHESIVE, RH
68294-26030

NSP170,ZSP170

 2
62716C - DAM, QUARTER WINDOW GLASS ADHESIVE, LH
68294-26030

NSP170,ZSP170

 2
62716C - DAM, QUARTER WINDOW GLASS ADHESIVE, LH
68294-26030

NSP170,ZSP170

 2
62720A - WINDOW ASSY, QUARTER, LH
62720-0D040

NSP170,ZSP170

 1
62775B - CLIP, QUARTER WINDOW, LH
62775-0D130

NSP170,ZSP170

 1
62775G - CLIP, QUARTER WINDOW, RH
62775-0D100

NSP170,ZSP170

 1
