ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611-1911)

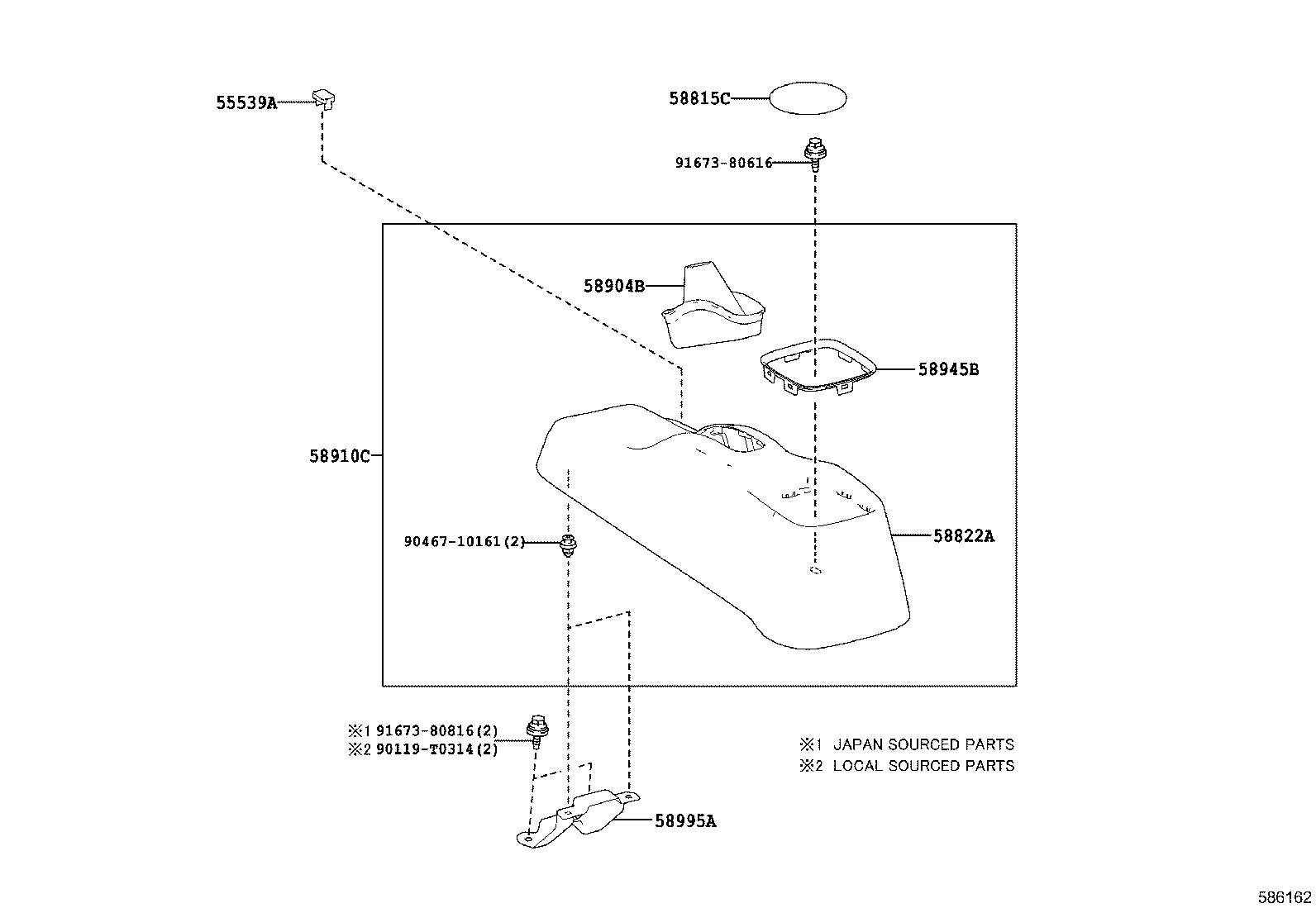

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-0D390 |
NSP170,ZSP170 |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-0D190C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-0D120B0 |
ZSP170 DK.GRAY,TRIM0#,2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-0D370C2 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 58910-0D360C1 |
ZSP170..Q,U BLACK,TRIM0#,2# |
1 | ||
| 58945B - GARNISH, CONSOLE, RR | ||||
| 58945-0D020C1 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 58945-0D010B0 |
ZSP170..Q,U SILVER,TRIM0#,2# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-0D140 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90119-T0314 | ||||
| 90467-10161 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
