ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

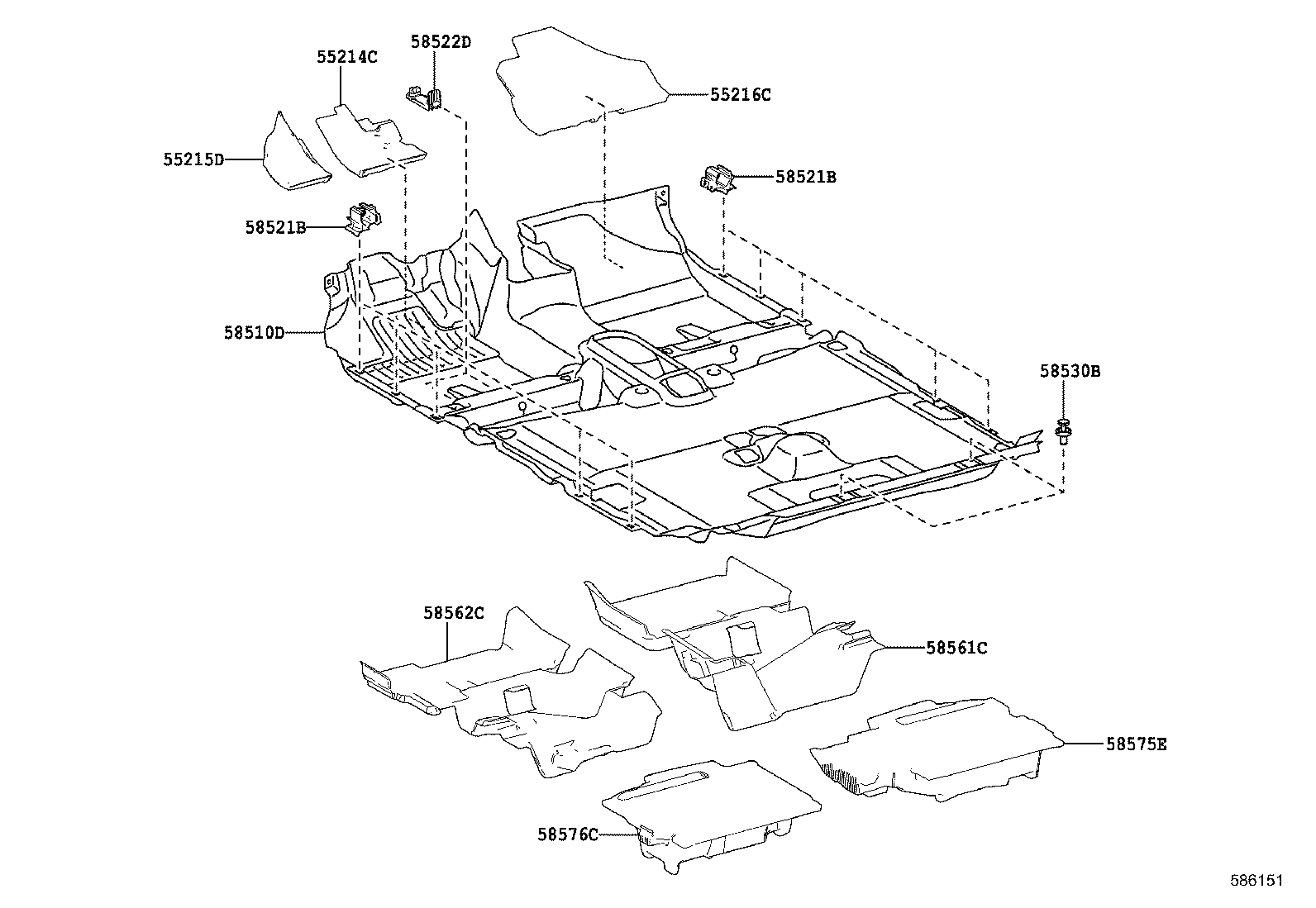

diagram 55214C 55215D 55216C 58510D 58521B 58521B 58522D 58530B 58561C 58562C 58575E 58576C
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0D120

NSP170,ZSP170

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0D180

NSP170,ZSP170

 1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-0D070

NSP170,ZSP170

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0DE40C0

ZSP170

BLACK,TRIM0#,2#

 1
58521B - HOOK, FLOOR CARPET
58521-0D130

NSP170,ZSP170

 10
58521B - HOOK, FLOOR CARPET
58521-0D130

NSP170,ZSP170

 10
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

NSP170,ZSP170

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07215

NSP170,ZSP170

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-0D360

NSP170,ZSP170

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-0D330

NSP170,ZSP170

 1
58575E - PAD, FRONT FLOOR, REAR NO.1
58575-0D020

NSP170,ZSP170

 1
58576C - PAD, FRONT FLOOR, REAR NO.2
58576-0D020

NSP170,ZSP170

 1
