ZSP170L-MNXQPR (2016)

Toyota Sienta (Taiwan)

Production Nov 2016 - Nov 2019
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

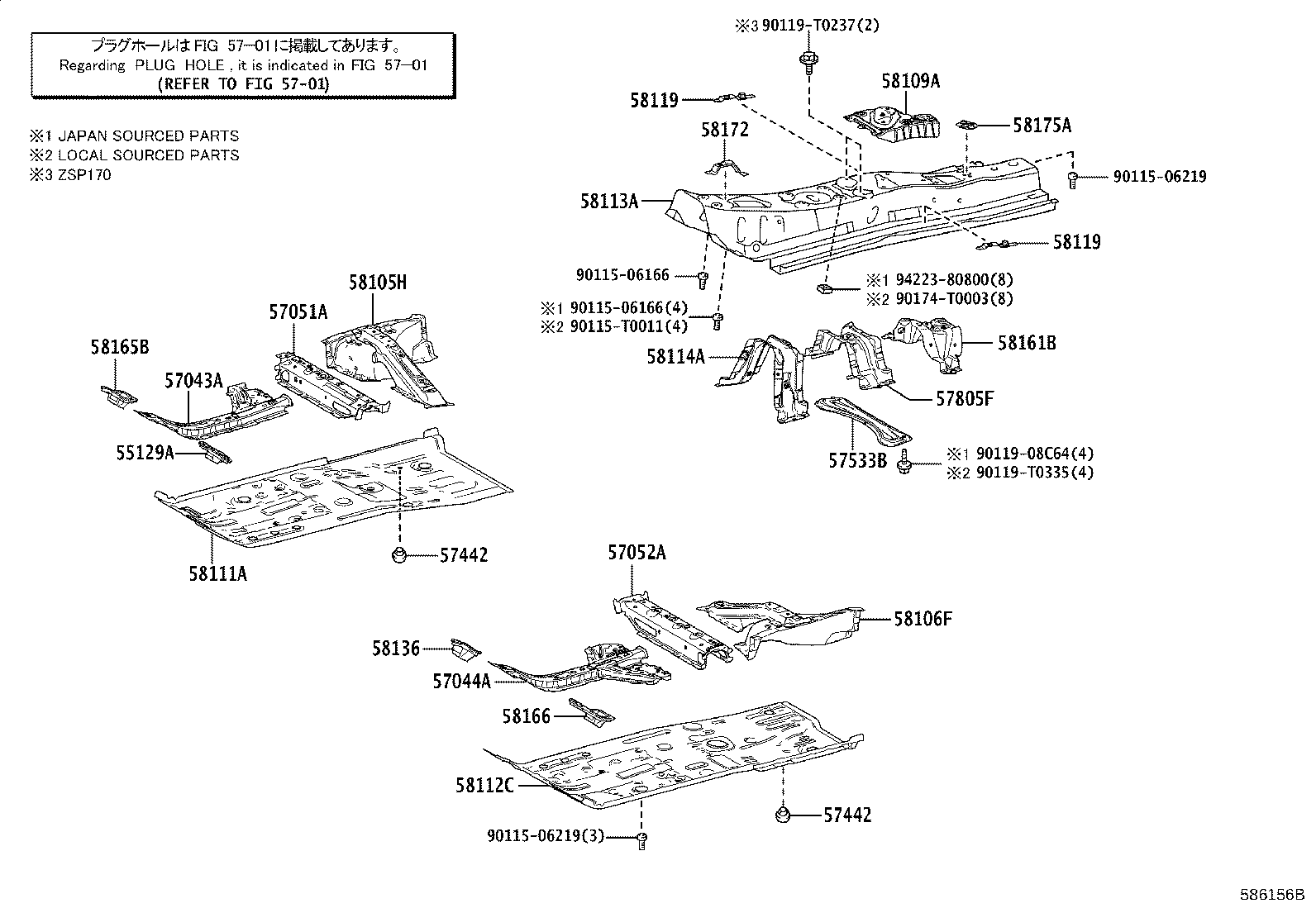

ILLUST NO. 1 OF 2(1611-1911)

Click highlighted areas on diagram

diagram 55129A 5701 57043A 57044A 57051A 57052A 57442 57442 57533B 57805F 58105H 58106F 58109A 58111A 58112C 58113A 58114A 58119 58119 58136 58161B 58165B 58166 58172 58175A 9011506166 9011506166 9011506219 9011506219 90115T0011 9011908C64 90119T0237 90119T0335 90174T0003 9422380800
Part # Description Qty Price
55129A - COVER, FRONT FLOOR HOLE
55129-0D110

NSP170,ZSP170

 1
57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57043-0D080

NSP170,ZSP170

 1
57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57044-0D070

NSP170,ZSP170

 1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-0D090

NSP170,ZSP170

 1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-0D090

NSP170,ZSP170

 1
57442 - PLUG, STEP PANEL HOLE
57442-28030

NSP170,ZSP170

 2
57442 - PLUG, STEP PANEL HOLE
57442-28030

NSP170,ZSP170

 2
57533B - BRACE, FRONT FLOOR, CENTER
57533-0D100

NSP170,ZSP170

 1
57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
57805-0D070

NSP170,ZSP170

 1
58105H - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE RH
58105-0D020

NSP170,ZSP170

 1
58106F - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58106-0D020

NSP170,ZSP170

 1
58109A - RETAINER SUB-ASSY, PARKING BRAKE
58109-0D020

NSP170,ZSP170

 1
58111A - PAN, FRONT FLOOR, RH
58111-0D250

NSP170,ZSP170

 1
58112C - PAN, FRONT FLOOR, LH
58112-0D911

NSP170,ZSP170

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-0D914

NSP170,ZSP170

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-0D060

NSP170,ZSP170

 1
58119 - PLATE, FRONT FLOOR SIDE, FRONT
58119-0D150

NSP170,ZSP170

 2
58119 - PLATE, FRONT FLOOR SIDE, FRONT
58119-0D150

NSP170,ZSP170

 2
58136 - COVER, FRONT FLOOR HOLE
55139-0D030

NSP170,ZSP170

 1
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58161-0D160

NSP170,ZSP170

 1
58165B - COVER, FRONT FLOOR, RH
58165-0D010

NSP170,ZSP170

 1
58166 - COVER, FRONT FLOOR, LH
58166-0D010

NSP170,ZSP170

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-0D020

NSP170,ZSP170

 1
58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1
58175-0D010

NSP170,ZSP170

 1
Common parts
90115-06166
90115-06219
90115-T0011
90119-08C64
90119-T0237
90119-T0335
90174-T0003
94223-80800
Linked diagrams
5701

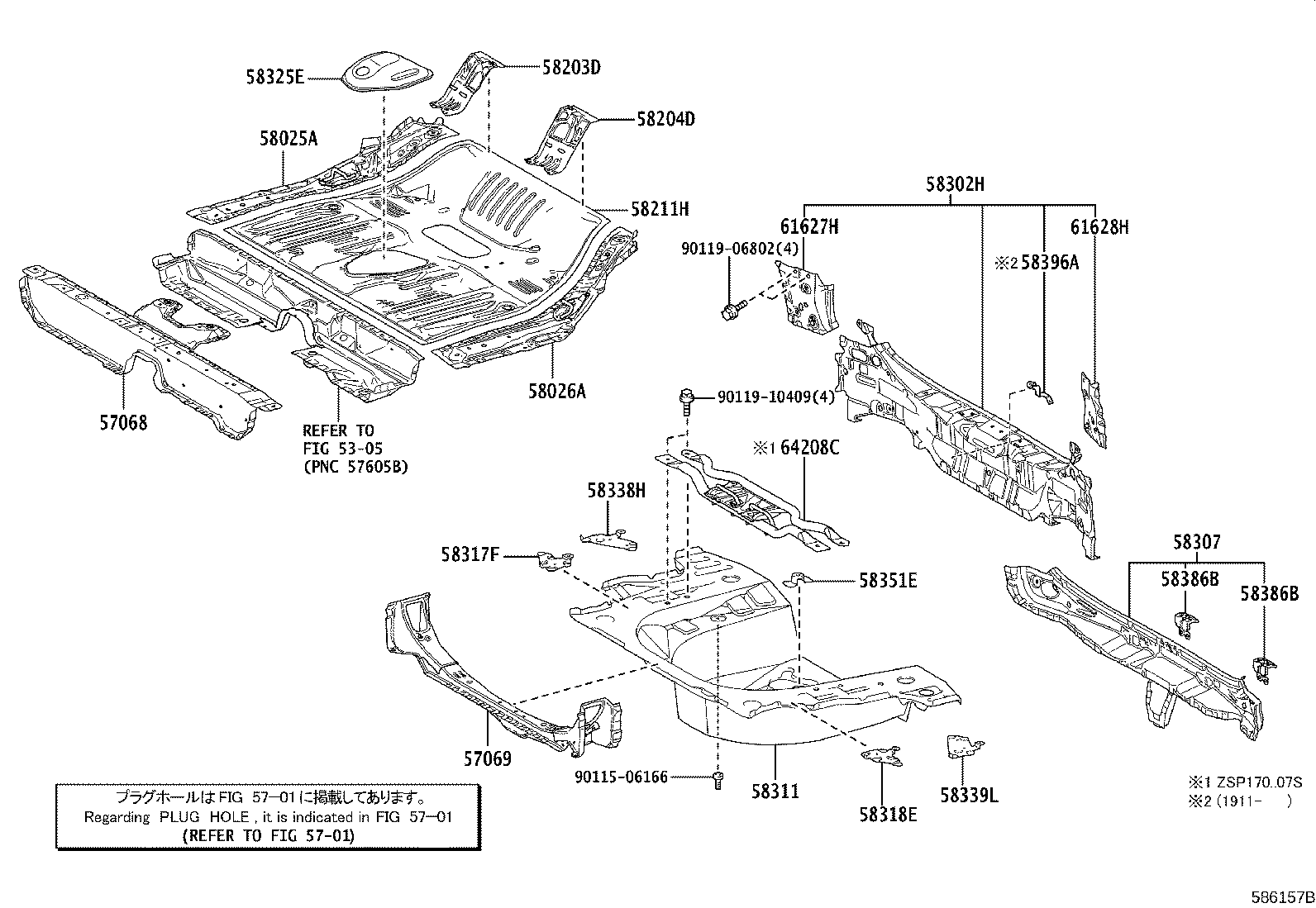

ILLUST NO. 2 OF 2(1611- )

Click highlighted areas on diagram

diagram 5305 5701 57068 57069 58025A 58026A 58203D 58204D 58211H 58302H 58307 58311 58317F 58318E 58325E 58338H 58339L 58351E 58386B 58386B 58396A 61627H 61628H 64208C 9011506166 9011906802 9011910409
Part # Description Qty Price
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-0D040

NSP170,ZSP170

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-0D020

NSP170,ZSP170

 1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58025-0D120

NSP170,ZSP170

 1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58026-0D100

NSP170,ZSP170

 1
58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH
58203-0D040

NSP170,ZSP170

 1
58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH
58204-0D040

NSP170,ZSP170

 1
58211H - PAN, CENTER FLOOR
58211-0D190

NSP170,ZSP170

 1
58302H - PANEL SUB-ASSY, LOWER BACK
58302-0D030

NSP170,ZSP170

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-0D460

NSP170,ZSP170

 1
58311 - PAN, REAR FLOOR
58311-0D903

NSP170,ZSP170

 1
58317F - RETAINER, REAR SEAT ANCHOR, NO.2
58317-0D020

NSP170,ZSP170

 1
58318E - RETAINER, REAR SEAT ANCHOR, NO.3
58318-0D020

NSP170,ZSP170

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-0D140

NSP170,ZSP170

 1
58338H - REINFORCEMENT, REAR FLOOR PAN, NO.2 RH
58338-0D030

NSP170,ZSP170

 1
58339L - REINFORCEMENT, REAR FLOOR PAN, NO.2 LH
58339-0D190

NSP170,ZSP170

 1
58351E - BRACKET, SPARE WHEEL CLAMP
58351-0D130

NSP170,ZSP170

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-0D070

NSP170,ZSP170

 2
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-0D070

NSP170,ZSP170

 2
61627H - EXTENSION, QUARTER PANEL, REAR LOWER RH
61627-0D020

NSP170,ZSP170

 1
61628H - EXTENSION, QUARTER PANEL, REAR LWR LH
61628-0D020

NSP170,ZSP170

 1
Common parts
90115-06166
90119-06802
90119-10409
Linked diagrams
5305
5701
