ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )ZSP170

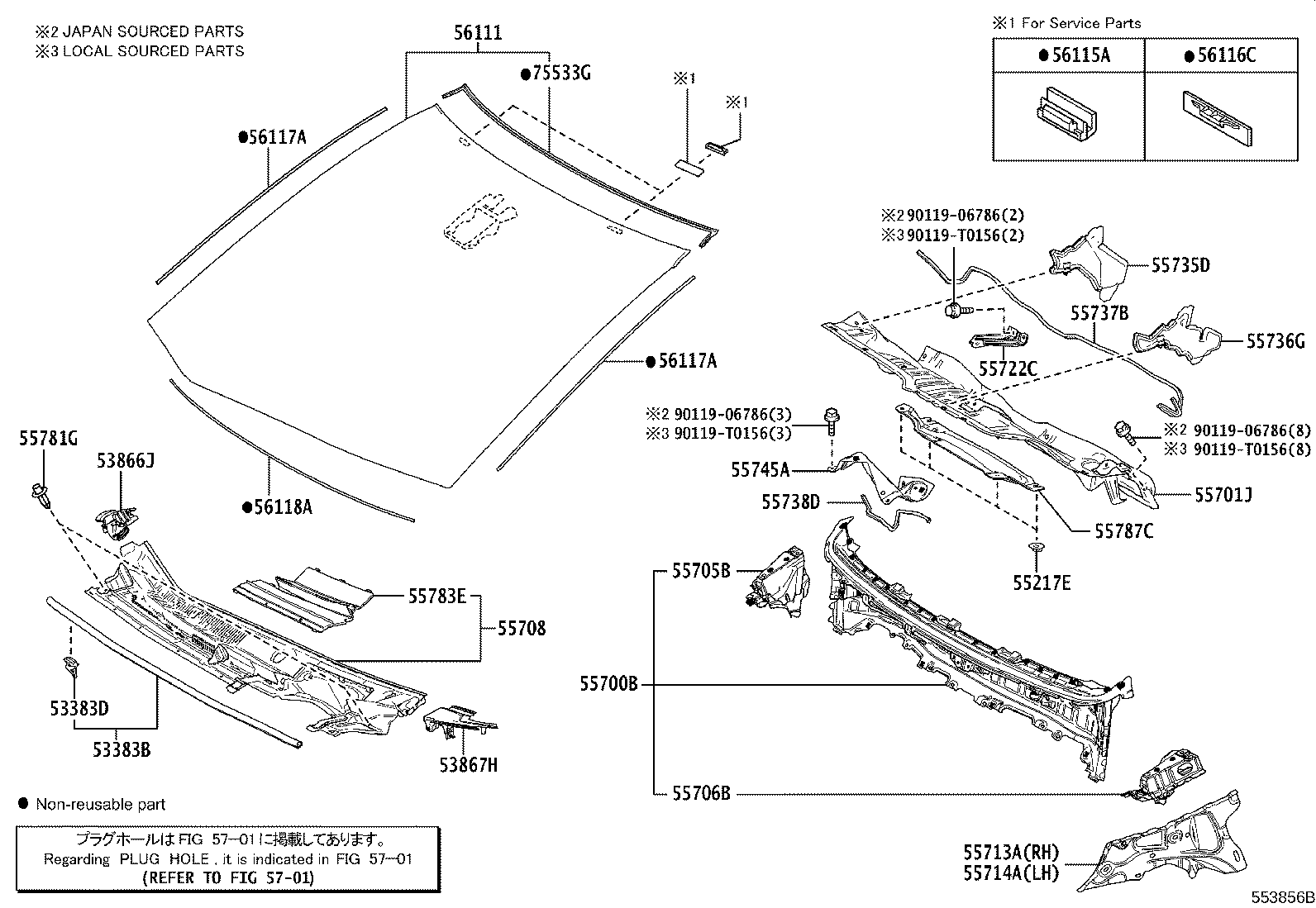

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-0D240 |
NSP170,ZSP170 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67868-0D030 |
NSP170,ZSP170 |
6 | ||
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-0D230 |
NSP170,ZSP170 |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-0D230 |
NSP170,ZSP170 |
1 | ||
| 55217E - RETAINER, DASH PANEL SILENCER | ||||
| 55217-51010 |
ZSP170 |
4 | ||
| 55700B - COWL ASSY | ||||
| 55700-0D420 |
NSP170,ZSP170 |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-0D190 |
NSP170,ZSP170 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-0D190 |
NSP170,ZSP170 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-0D190 |
NSP170,ZSP170 |
1 | ||
| 55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-0D440 |
NSP170,ZSP170 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-0D180 |
NSP170,ZSP170 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-0D180 |
NSP170,ZSP170 |
1 | ||
| 55722C - BRACE, COWL TOP TO COWL, INNER | ||||
| 55722-0D120 |
NSP170,ZSP170 |
1 | ||
| 55735D - SEAL, FRONT AIR SHUTTER, RH | ||||
| 55735-52140 |
NSP170,ZSP170 |
1 | ||
| 55736G - SEAL, FRONT AIR SHUTTER, LH | ||||
| 55736-52100 |
NSP170,ZSP170 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-0D260 |
NSP170,ZSP170 |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-0D270 |
NSP170,ZSP170 |
1 | ||
| 55745A - REINFORCEMENT, COWL TOP, INNER | ||||
| 55745-0D150 |
NSP170,ZSP170 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07076C7 |
NSP170,ZSP170 BLACK,(J) |
2 | ||
| 90467-T0027C0 |
NSP170,ZSP170 BLACK,(L) |
2 | ||
| 90467-07076C0 |
NSP170,ZSP170 BLACK,(J) |
2 | ||
| 55783E - LOUVER, COWL TOP VENTILATOR, CENTER | ||||
| 55783-0D180 |
NSP170,ZSP170 |
1 | ||
| 55787C - INSULATOR, COWL TOP PANEL, NO.1 | ||||
| 55787-0D020 |
ZSP170 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0D790 |
NSP170,ZSP170..D,N,Q |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NSP170,ZSP170 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NSP170,ZSP170 |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-0D510 |
NSP170,ZSP170 L=798 |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-0D510 |
NSP170,ZSP170 L=798 |
2 | ||
| 56118A - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56118-0D070 |
NSP170,ZSP170 L=1179 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-0D090 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90119-06786 | ||||
| 90119-T0156 | ||||
| Linked diagrams | ||||
| 5701 | ||||
