ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)

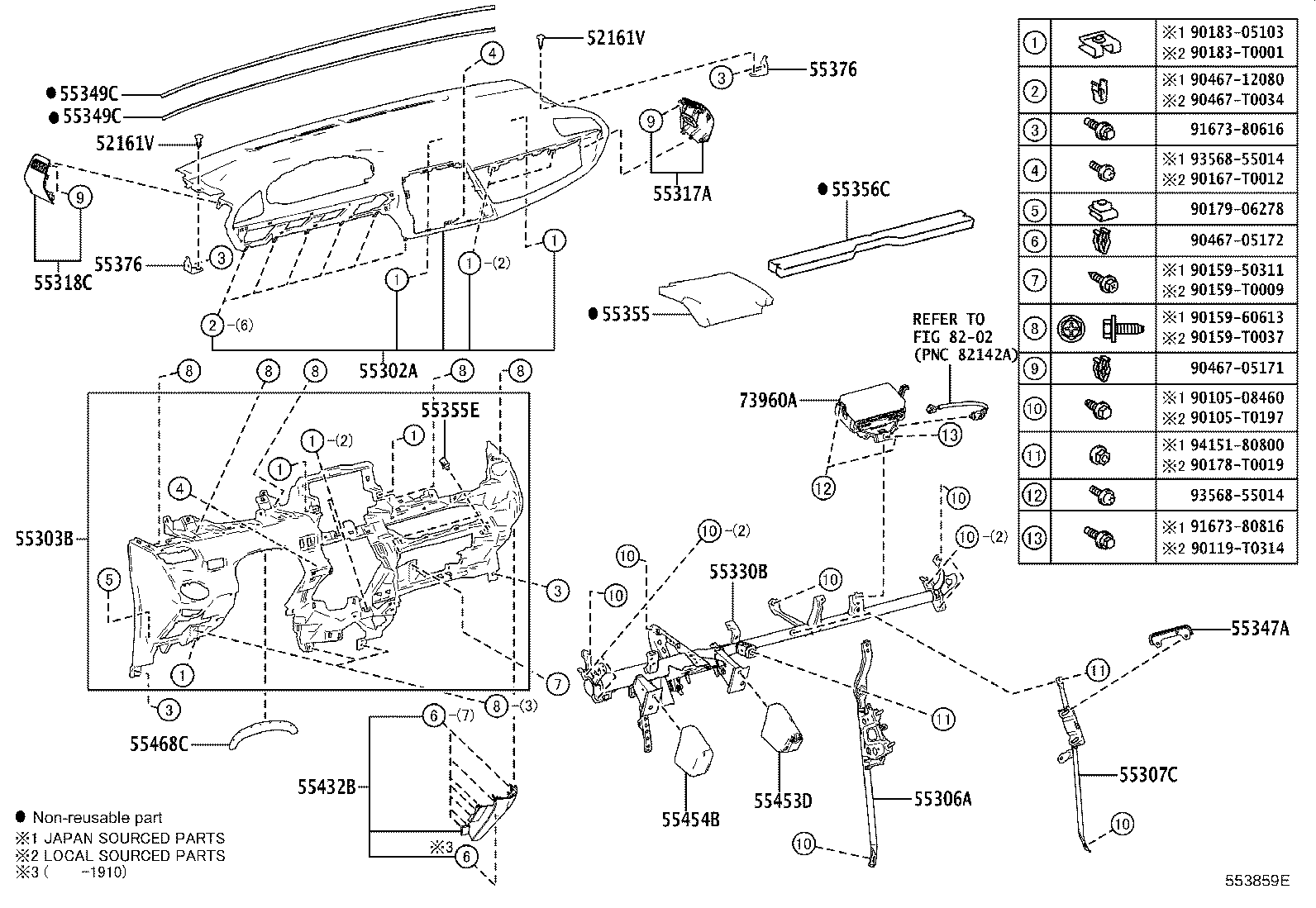

ILLUST NO. 1 OF 2(1611-1911)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-0K040 |
NSP170,ZSP170 |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-0K040 |
NSP170,ZSP170 |
2 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0D230C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D190C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55303-0D190A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D380 |
NSP170,ZSP170 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-0D010 |
NSP170,ZSP170 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55318-0D180C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55317-0D240C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-0D740 |
NSP170,ZSP170 |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55347-0D130 |
NSP170,ZSP170 |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D110 |
NSP170,ZSP170 |
2 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D110 |
NSP170,ZSP170 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D220 |
NSP170,ZSP170 |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55557-52030 |
NSP170,ZSP170 |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-0D190 |
NSP170,ZSP170 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-0D150 |
NSP170,ZSP170 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-0D150 |
NSP170,ZSP170 |
2 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D200C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55432-0D200A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52190 |
NSP170,ZSP170 |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-52190 |
NSP170,ZSP170 |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D240 |
NSP170,ZSP170 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0D150 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90105-T0197 | ||||
| 90119-T0314 | ||||
| 90159-50311 | ||||
| 90159-60613 | ||||
| 90159-T0009 | ||||
| 90159-T0037 | ||||
| 90167-T0012 | ||||
| 90178-T0019 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90183-T0001 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| 90467-T0034 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

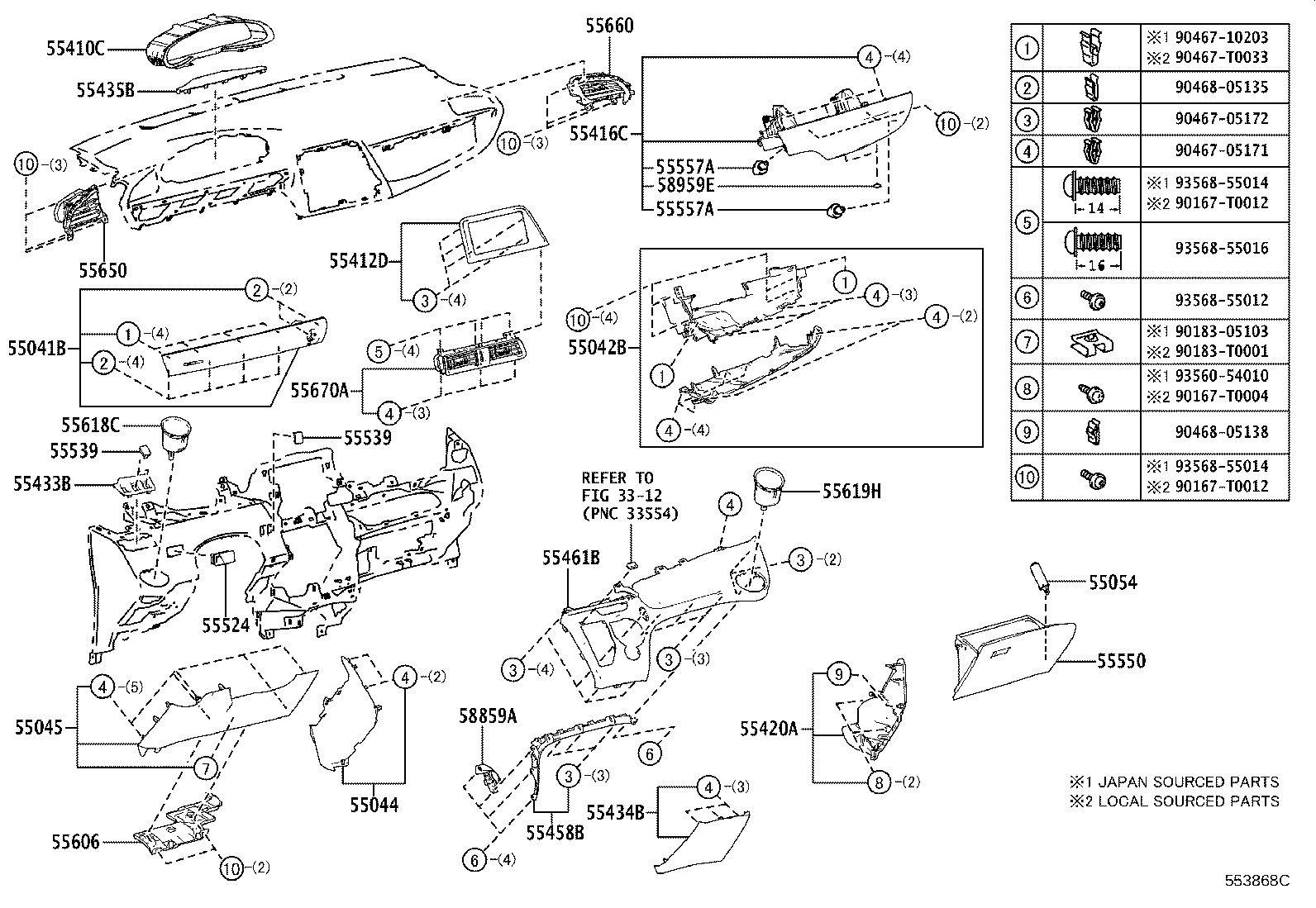

ILLUST NO. 2 OF 2(1611-1911)Q,U
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-0D100C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-0D080C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55044 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55044-0D020C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55044-0D020A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0D020C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55045-0D020A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NSP170,ZSP170 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0D180C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-0D260C0 |
ZSP170..Q,U PIANOBLACK,TRIM0#,2# |
1 | ||
| 55412-0D610C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55412-0D700C0 |
ZSP170..Q,U SATIN CHROME,TRIM0#,2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-0D190C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-0D020A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55420-0D020C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D250C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55433-0D250A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0D160A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55434-0D160C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-0D160C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-0D020A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55458-0D020C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-0D170A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55461-0D170C0 |
ZSP170 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090A1 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55539-0D090C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090A1 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55539-0D090C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D320C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55550-0D320A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
NSP170,ZSP170 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
NSP170,ZSP170 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D170 |
NSP170,ZSP170 |
1 | ||
| 55618C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55618-0D120C0 |
ZSP170..Q,U BLACK,TRIM2# |
1 | ||
| 55618-0D130C0 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 55618-0D130A0 |
ZSP170..N FROMAGE,TRIM0# |
1 | ||
| 55618-0D120A0 |
ZSP170..Q,U FROMAGE,TRIM0# |
1 | ||
| 55619H - HOLDER, INSTRUMENT PANEL CUP, NO.2 | ||||
| 55619-0D120C0 |
ZSP170..Q,U BLACK,TRIM2# |
1 | ||
| 55619-0D120A0 |
ZSP170..Q,U FROMAGE,TRIM0# |
1 | ||
| 55619-0D130C0 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 55619-0D130A0 |
ZSP170..N FROMAGE,TRIM0# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D580C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55650-0D570B0 |
ZSP170..Q,U 11CR01,TRIM0#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0D420B0 |
ZSP170..Q,U 11CR01,TRIM0#,2# |
1 | ||
| 55660-0D430C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D390C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55670-0D380B0 |
ZSP170..Q,U BLACK,TRIM0#,2# |
1 | ||
| 58859A - HOOK, CONSOLE BOX HOLDER | ||||
| 58859-0D030A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 58859-0D030C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
NSP170,ZSP170 |
2 | ||
| Common parts | ||||
| 90167-T0004 | ||||
| 90167-T0012 | ||||
| 90183-05103 | ||||
| 90183-T0001 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-T0033 | ||||
| 90468-05135 | ||||
| 90468-05138 | ||||
| 93560-54010 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 3312 | ||||
ILLUST NO. 2 OF 2(1611-1911)N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-0D100C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-0D080C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55044 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55044-0D020C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55044-0D020A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0D020C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55045-0D020A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NSP170,ZSP170 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0D180C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-0D260C0 |
ZSP170..Q,U PIANOBLACK,TRIM0#,2# |
1 | ||
| 55412-0D610C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55412-0D700C0 |
ZSP170..Q,U SATIN CHROME,TRIM0#,2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-0D190C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-0D020A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55420-0D020C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D250C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55433-0D250A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0D160A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55434-0D160C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-0D160C0 |
ZSP170 BLACK,TRIM0#,2# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-0D020A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55458-0D020C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-0D170A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55461-0D170C0 |
ZSP170 BLACK,TRIM2# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-0D020A0 |
ZSP170..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),FROMAGE,TRIM0# |
1 | ||
| 55524-0D020A0 |
ZSP170..N FROMAGE,TRIM0# |
1 | ||
| 55524-0D020A0 |
ZSP170..N FROMAGE,TRIM0# |
1 | ||
| 55524-0D020C0 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 55524-0D020C0 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),BLACK,TRIM2# |
1 | ||
| 55524-0D020A0 |
ZSP170..05S..N AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS)),FROMAGE,TRIM0# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090A1 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55539-0D090C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090A1 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55539-0D090C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D320C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 55550-0D320A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
NSP170,ZSP170 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
NSP170,ZSP170 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D170 |
NSP170,ZSP170 |
1 | ||
| 55618C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55618-0D120C0 |
ZSP170..Q,U BLACK,TRIM2# |
1 | ||
| 55618-0D130C0 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 55618-0D130A0 |
ZSP170..N FROMAGE,TRIM0# |
1 | ||
| 55618-0D120A0 |
ZSP170..Q,U FROMAGE,TRIM0# |
1 | ||
| 55619H - HOLDER, INSTRUMENT PANEL CUP, NO.2 | ||||
| 55619-0D120C0 |
ZSP170..Q,U BLACK,TRIM2# |
1 | ||
| 55619-0D120A0 |
ZSP170..Q,U FROMAGE,TRIM0# |
1 | ||
| 55619-0D130C0 |
NSP170,ZSP170..D,N BLACK,TRIM2# |
1 | ||
| 55619-0D130A0 |
ZSP170..N FROMAGE,TRIM0# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D580C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55650-0D570B0 |
ZSP170..Q,U 11CR01,TRIM0#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0D420B0 |
ZSP170..Q,U 11CR01,TRIM0#,2# |
1 | ||
| 55660-0D430C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-0D390C0 |
ZSP170..N BLACK,TRIM0#,2# |
1 | ||
| 55670-0D380B0 |
ZSP170..Q,U BLACK,TRIM0#,2# |
1 | ||
| 58859A - HOOK, CONSOLE BOX HOLDER | ||||
| 58859-0D030A0 |
ZSP170 FROMAGE,TRIM0# |
1 | ||
| 58859-0D030C0 |
NSP170,ZSP170 BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
NSP170,ZSP170 |
2 | ||
| Common parts | ||||
| 90167-T0004 | ||||
| 90167-T0012 | ||||
| 90183-05103 | ||||
| 90183-T0001 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-T0033 | ||||
| 90468-05135 | ||||
| 90468-05138 | ||||
| 93560-54010 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 3312 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
