ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611-1911)

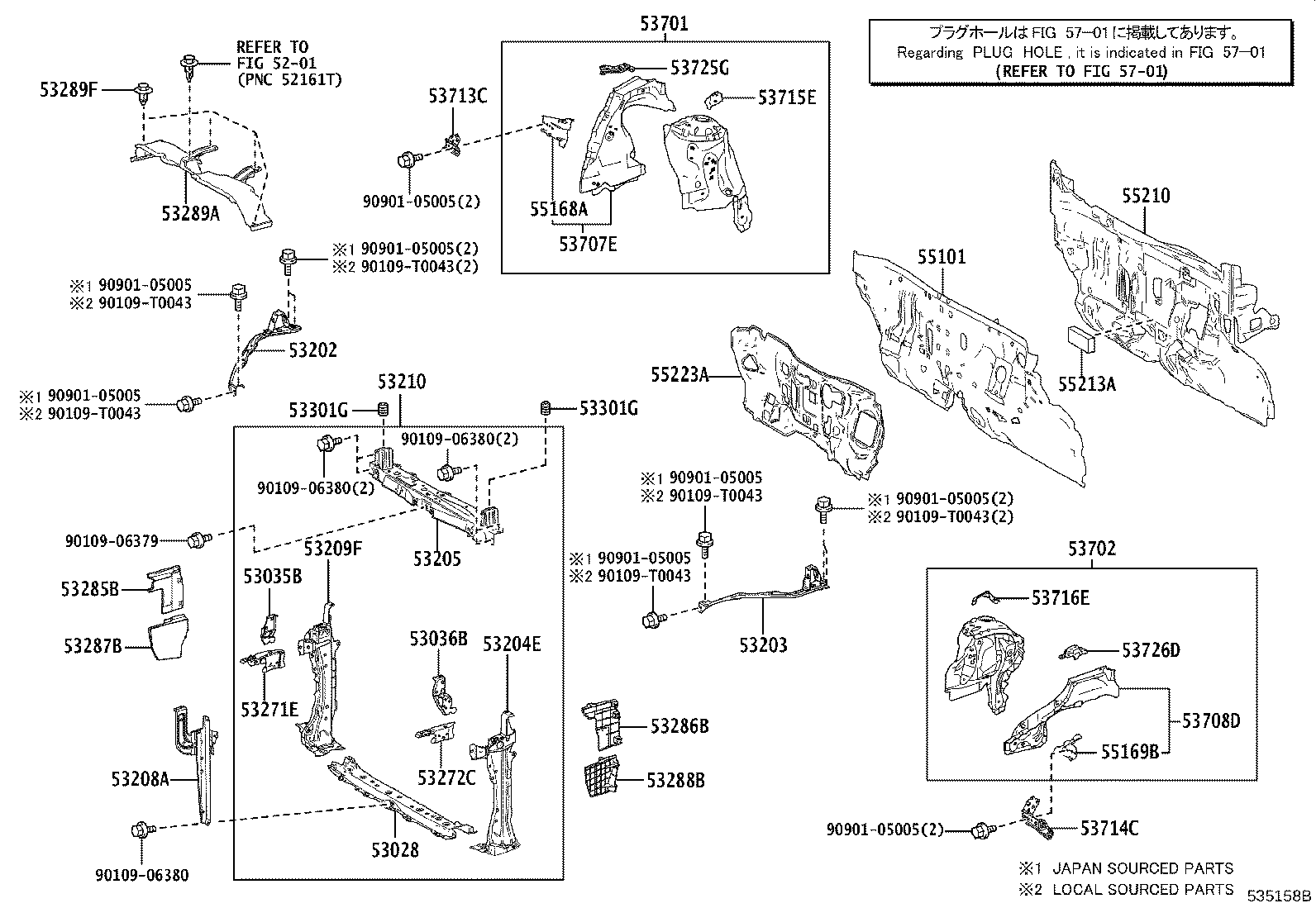

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-0D100 |
NSP170,ZSP170 |
1 | ||
| 53035B - BRACKET SUB-ASSY, HEADLAMP MOUNTING, RH | ||||
| 53035-0D030 |
NSP170,ZSP170 |
1 | ||
| 53036B - BRACKET SUB-ASSY, HEADLAMP MOUNTING, LH | ||||
| 53036-0D030 |
NSP170,ZSP170 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0D100 |
NSP170,ZSP170 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0D100 |
NSP170,ZSP170 |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-0D100 |
NSP170,ZSP170 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-0D110 |
NSP170,ZSP170 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-0D180 |
NSP170,ZSP170 |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-0D090 |
NSP170,ZSP170 |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-0D918 |
NSP170,ZSP170 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-0D070 |
NSP170,ZSP170 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-0D070 |
NSP170,ZSP170 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-0D360 |
NSP170,ZSP170 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-0D360 |
NSP170,ZSP170 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-0D250 |
NSP170,ZSP170 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-0D240 |
NSP170,ZSP170 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-0D180 |
NSP170,ZSP170 |
1 | ||
| 53289F - CLIP(FOR RADIATOR SUPPORT OPENING COVER) | ||||
| 90467-07214 |
NSP170,ZSP170 |
4 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
NSP170,ZSP170 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
NSP170,ZSP170 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0D320 |
NSP170,ZSP170 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0D310 |
NSP170,ZSP170 |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-0D020 |
NSP170,ZSP170 |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-0D020 |
NSP170,ZSP170 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-0D190 |
NSP170,ZSP170 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-0D190 |
NSP170,ZSP170 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-0D030 |
NSP170,ZSP170 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-0D030 |
NSP170,ZSP170 |
1 | ||
| 53725G - APRON, FRONT FENDER NO.2 SIDE, RH | ||||
| 53725-0D020 |
NSP170,ZSP170 |
1 | ||
| 53726D - APRON, FRONT FENDER NO.2 SIDE, LH | ||||
| 53726-0D020 |
NSP170,ZSP170 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0D760 |
NSP170,ZSP170 |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-0D050 |
NSP170,ZSP170 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-0D050 |
NSP170,ZSP170 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0D730 |
NSP170,ZSP170 |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-0D130 |
NSP170,ZSP170 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0D370 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90109-06379 | ||||
| 90109-06380 | ||||
| 90109-T0043 | ||||
| 90901-05005 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5701 | ||||
