ZSP170L-MNXQPR (2016)
Toyota Sienta (Taiwan)
Production
Nov 2016
-
Nov 2019
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

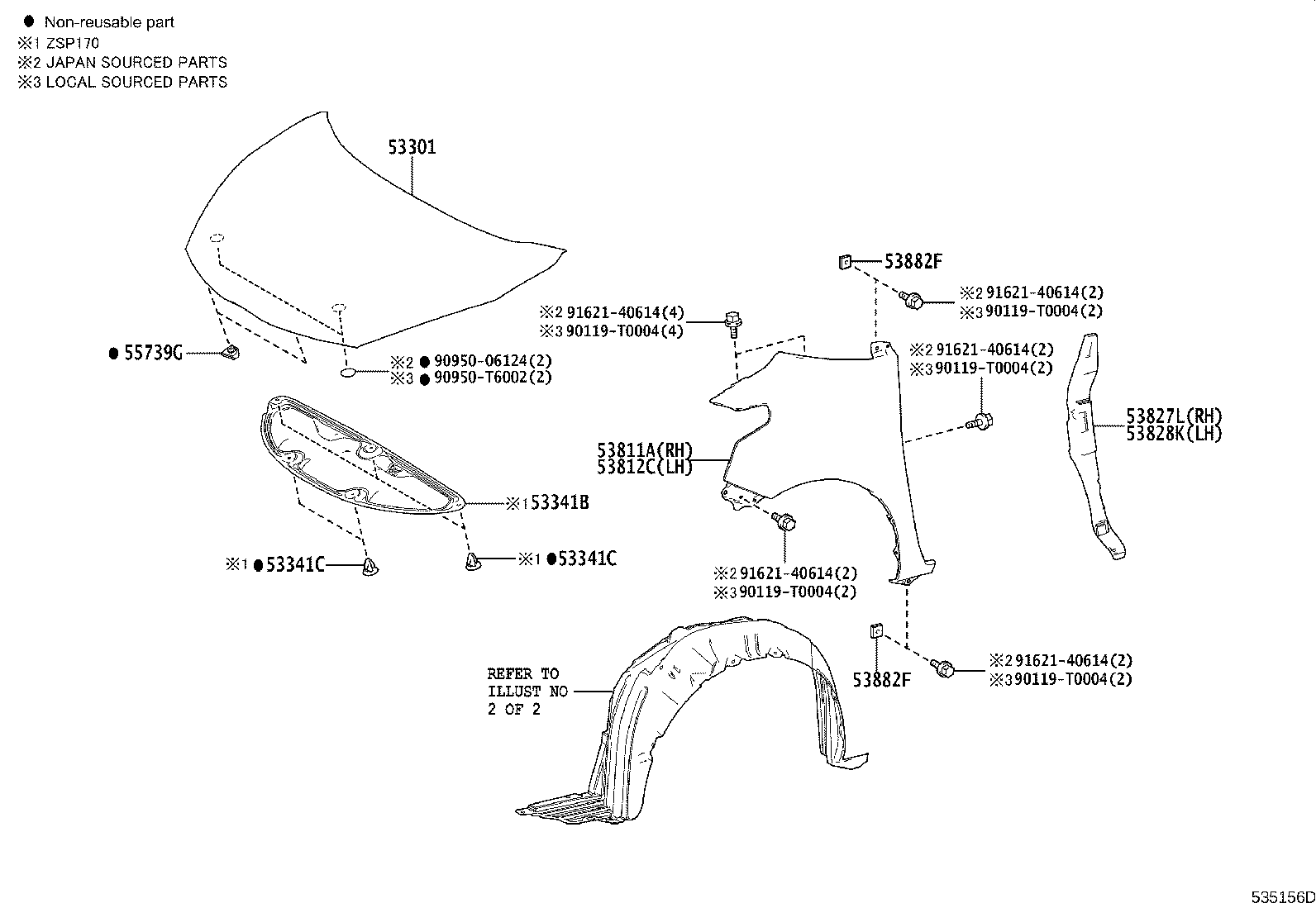

ILLUST NO. 1 OF 2(1611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0D340 |
NSP170,ZSP170 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0D370 |
ZSP170 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-T0014 |
ZSP170 (L) |
5 | ||
| 90467-09050 |
ZSP170 (J) |
5 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-T0014 |
ZSP170 (L) |
5 | ||
| 90467-09050 |
ZSP170 (J) |
5 | ||
| 53811A - PANEL, FRONT FENDER, RH | ||||
| 53811-0D250 |
NSP170,ZSP170 |
1 | ||
| 53812C - PANEL, FRONT FENDER, LH | ||||
| 53812-0D250 |
NSP170,ZSP170 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0D200 |
ZSP170 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0D200 |
ZSP170 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
NSP170,ZSP170 |
4 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
NSP170,ZSP170 |
4 | ||
| 55739G - STOPPER, HOOD | ||||
| 55738-0D060 |
NSP170,ZSP170 |
2 | ||
| Common parts | ||||
| 90119-T0004 | ||||
| 90950-06124 | ||||
| 90950-T6002 | ||||
| 91621-40614 | ||||

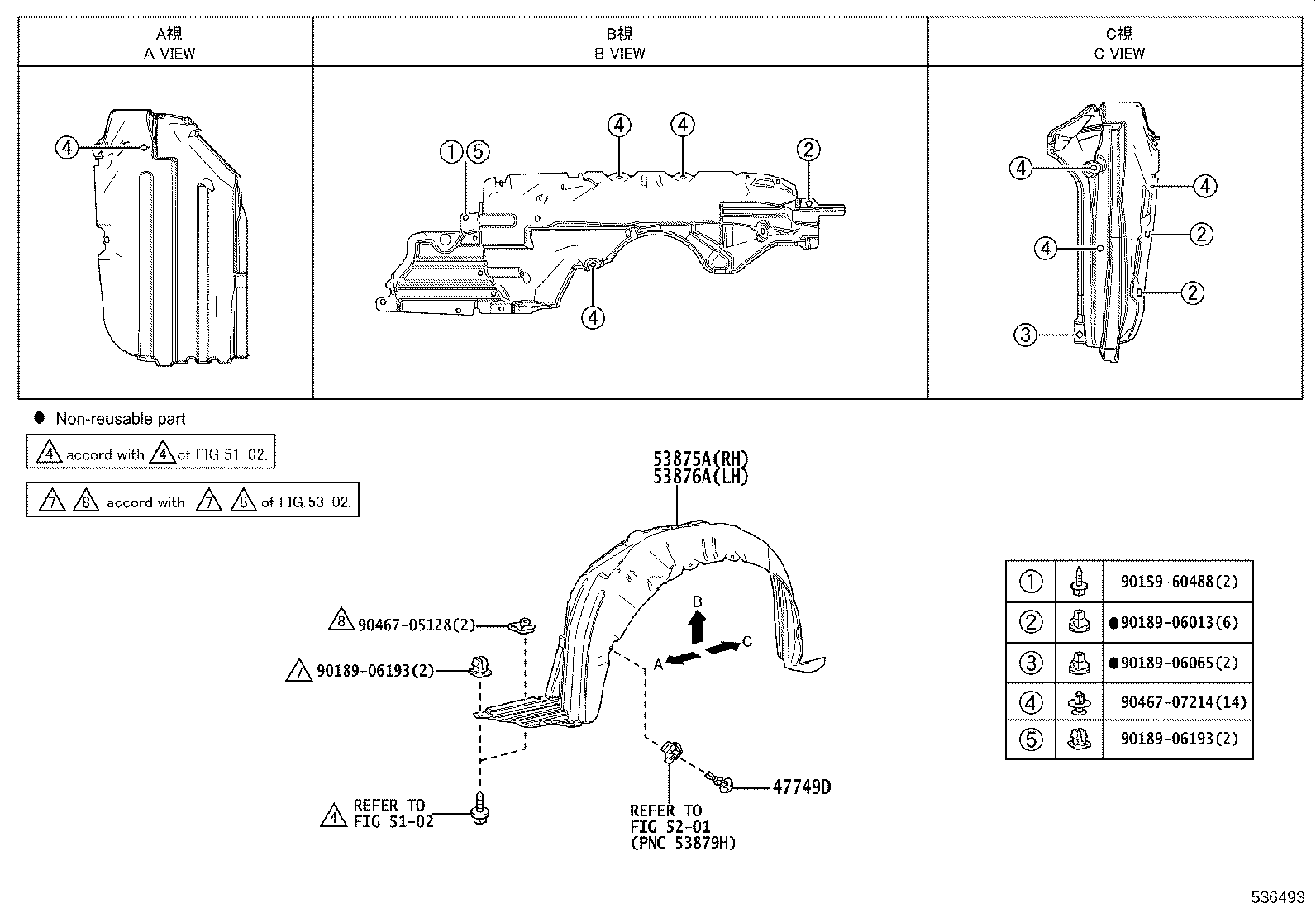

ILLUST NO. 2 OF 2(1611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-50090 |
NSP170,ZSP170 |
2 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-0D540 |
NSP170,ZSP170 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-0D540 |
NSP170,ZSP170 |
1 | ||
| Common parts | ||||
| 90159-60488 | ||||
| 90189-06013 | ||||
| 90189-06065 | ||||
| 90189-06193 | ||||
| 90467-05128 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
